Nokia MEDIAMASTER 9460 S - Technical Specifications

GB 29
Transmission standards
DVB, MPEG 2
LNB / Tuner input
Connector 1x F-type (LNB)
RF input frequency 950-2150 MHz
RF input power level -20 to -65 dBm
Supply voltage 13 /18 V ±5%
Max. current 500 mA, overload protected
Control voltage 22 kHz, 0.65 V
pp
DiSEqC Tone burst A/B or
Level 1.2
RF impedance 75 Ω
TV SCART
Video output 1 V
pp
(±1 dB) / 75 Ω
Audio output 0.5 V
rms
/ R
L
>10 kΩ
RGB output Internal RGB
RGB bandwidth 5.8 MHz ±3 dB
Fast blanking output Internal or from
AUX SCART
Status output 0/6/12 V / R
L
10 kΩ
AUX SCART
Video output 1 V
pp
(±1 dB) / 75 Ω
Video input 1 V
pp
/ 75 Ω
Audio output 0.5 V
rms
/ R
L
>10 kΩ
Audio input 0.5 Vr
ms
/ R
L
>10 kΩ
Status input 0/6/12 V / R
L
>10 kΩ
DIGITAL AUDIO (S/PDIF)
Connector 1 x RCA
AUDIO R L
Connector 2 x RCA (R+L)
Output 0.5 V
rms
± 0.5 dB/ R
L
10 kΩ
SERIAL (RS 232) serial data
Connector 9-pin D-sub male
Signals RS232, max. 115.2 kbit/s
Pin 1 DCD (Data carrier detect) not connected
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (Data terminal ready) Set to high
5 GND (Signal ground)
6 DSR (Data set ready) not connected
7 RTS (Ready to send)
8 CTS (Clear to send)
9 RI (Ring indicator) not connected
Front panel
2 LEDs, Buttons: , (standby, progr. number up and
down)
Other data
The model code, variant and serial number, are located on a
label on the underside of the housing.
Supply voltage 110-240V AC, 47-63Hz
Power consumption max 20 W at 500mA LNB load
Power consumption in
standby 5 W
Operating temperature +5° C to +40° C
Storage temperature - 40° C to +65° C
Humidity 25 to 90 % rel humidity
Operating distance for
remote control max 10 metres
Dimensions (w x d x h) 216 x 245 x 70 mm
Weight 750 g approx

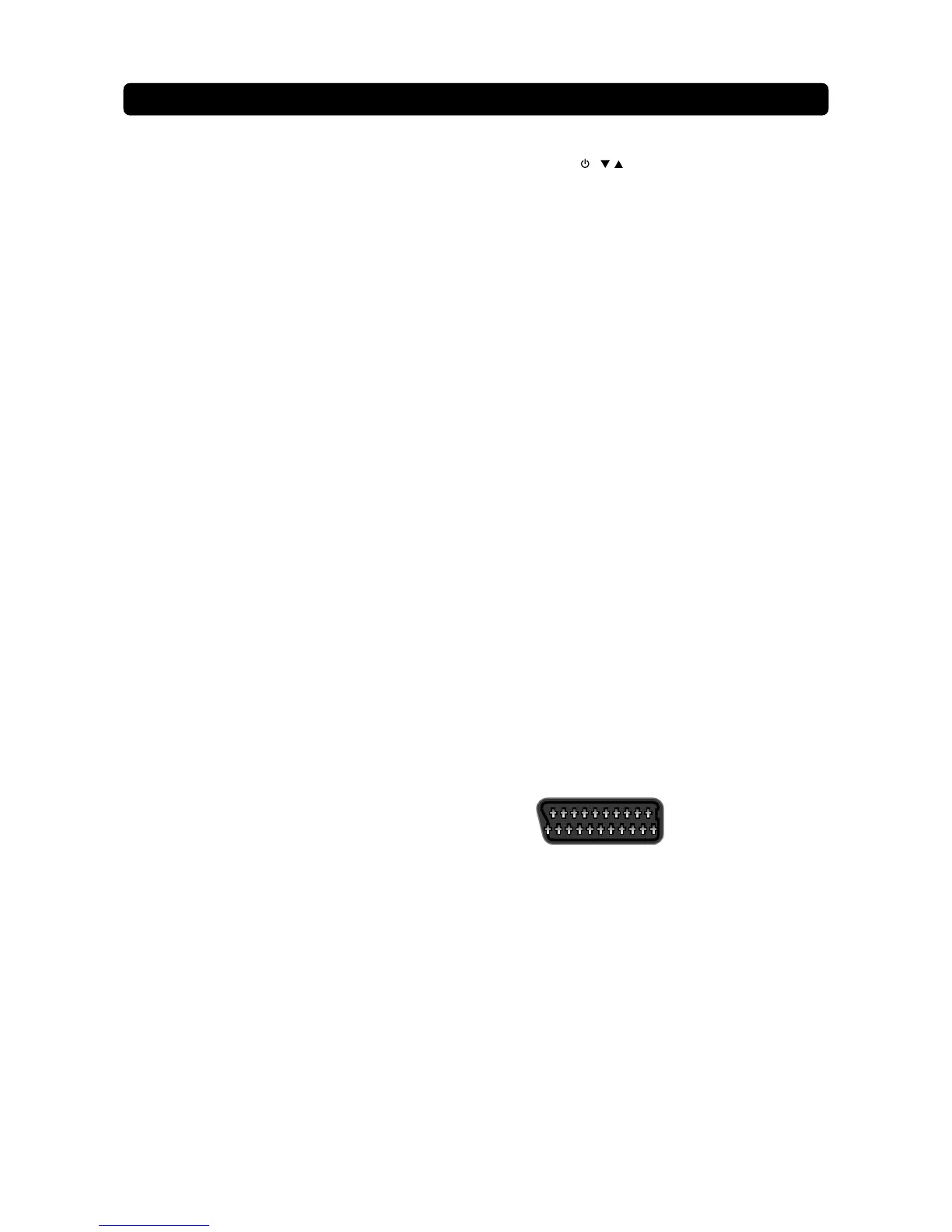

SCART sockets
TV AUX
1 Audio out right ch. Audio out right ch.
2 - Audio in right ch.
3 Audio out left ch. Audio out left ch.
4 Audio ground Audio ground
5 RGB blue ground Ground
6 - Audio in left ch.
7 RGB blue signal out -
8 Switch voltage out Switch voltage in
9 RGB green ground Ground
10 Connect to pin 10 in AUX scart
11 RGB green signal out -
12 - -
13 RGB red ground Ground
14 Fast blank. ground Ground
15 RGB red signal out -
16 Fast blanking out -
17 Video out ground Video out ground
18 Ground Video in ground
19 Video out Video out
20 - Video in
21 Ground (casing) Ground (casing)
