Page 11(12)Page 11(12)

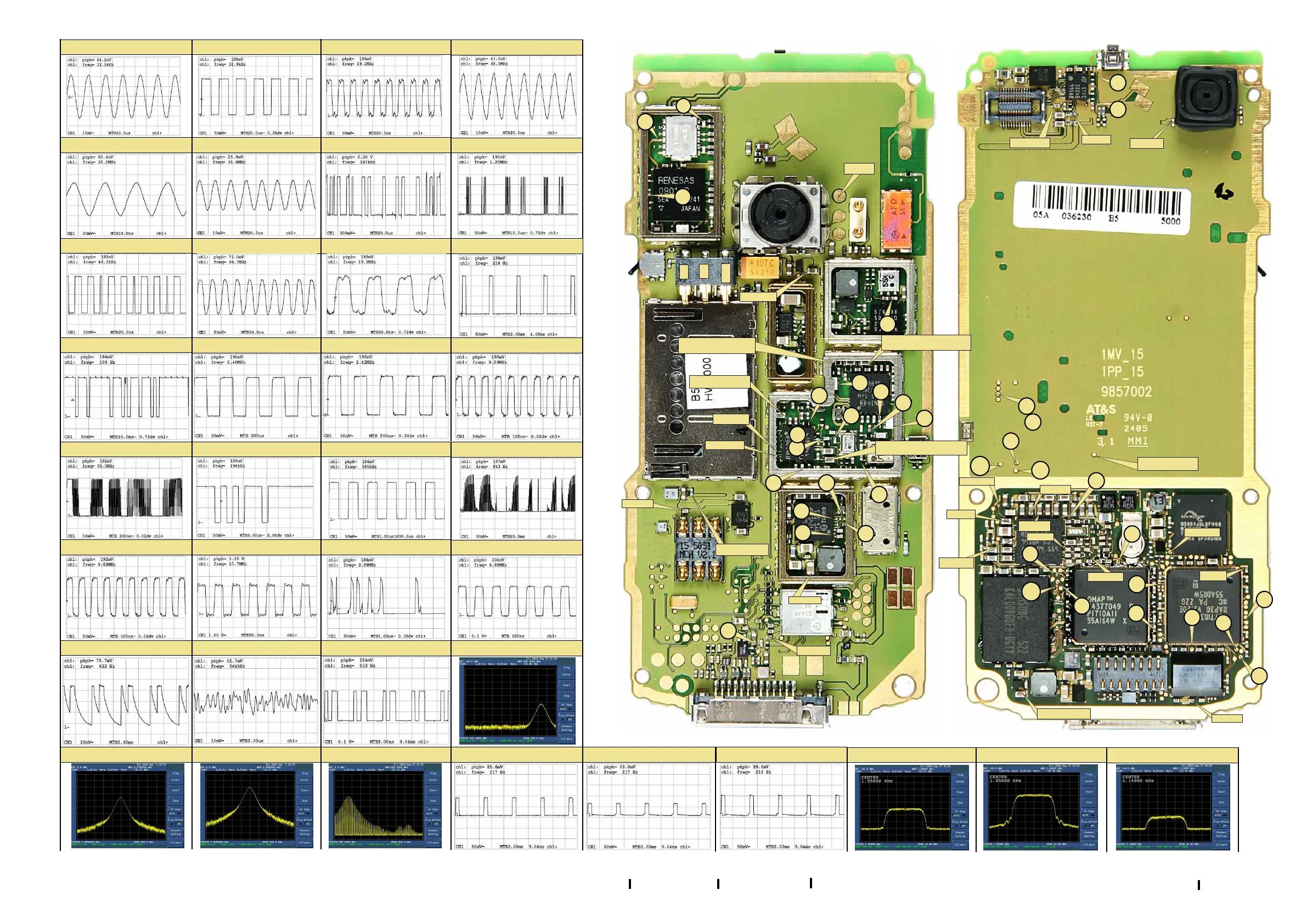

Signal overviewSignal overview
Customer Care/ Service & Support Readiness / Content Creation Managment
Copyright © 2005 NOKIA Only for training and service purposes
Customer Care/ Service & Support Readiness / Content Creation Managment
Copyright © 2005 NOKIA Only for training and service purposes
Version: 1.0 Version: 1.0 08.08.200508.08.2005
N-70 RM-84N-70 RM-84
Board version: 1MV_15 Board version: 1MV_15
1) 32kHz at C2208
7) CBUSCLK at J2206
15) AUDIOCLK at J2200
8) CBUSDATA at J2207
4) 38.4MHz at C7529
3) SYSCLK at J4819
6) LPRFCLK at C7615
13) TXCDATA at J2212
12) TXCCtrl at J2211
14) SMPS at J2308
2) SLEEPCLK at C7617
19) CLK600 at J2305
5) RFCLK at C7528
27) VR1RX at C7515
25) RXIQ at J7510
26) RX I/Q WCDMA J7510
21) Back CAM_CLK at R1474
31) TX GSM at J7519-J7520
35) WCDMA TX at R7520
36) WCDMA TX at L7514
37) WCDMA RX at T7500 Pin 1
28) RX GSM at L7504/ L7506
29) RX SHF at T7501
30) TX SHF at L7517
32) Icont GSM 900 at C7545
33) TXC LOW at C7549
34) TXC HIGH at C7549
10) SDRAMCLK at J2806
9) CBUSSELX at J2209
11) TXCCLK at J2210
16) SCLK at J7505
17) SDATA at J7504
18) XENA at J7506
20) MMCCLK at J5200
22) Front CAM_CLK at C1489
23) FLSCLK at J2813
24) DCLK at R1490
VREG2(WCDMA)=2.8V
VSim=1.8V
VCAM2=1.8V
Lights on=1.8V
VCAM=1.5V
VREFint=1.35V
PURX=1.8V
VRFC=1.8V
TXRESETX=1.8V
VIO=1.8V
VR1=2.5V
24
25
26
22
18
17
16
GND
BSI
VBATT
13
12
10
3
21
7
20
15
1
11
28
31
32
37
34
35
33
2
5
6
4
8
9
14
19
29
30
27
SLEEPX=1.8V
VRCP2=4.7V
VRCP1=4.7V
VDDR_APE=1.8V
VDRAM=1.8V
VAUX=2.8V
Lights on=14V
VANA=2.8V
VCOREA=1.4V
VBAT=4V
MMC inserted=1.8V
VCP2=4.75V
VDIG=2.5V
VREG1 =2.75V
VR1(RX active)=2.8V
VREFRF01 =1.35V
36
23
