Antenna locations
Your device may have internal and external
antennas. As with any radio transmitting device,
avoid touching the antenna area unnecessarily
while the antenna is transmitting or receiving.
Contact with such an antenna affects the
communication quality and may cause the device to
operate at a higher power level than otherwise
needed and may reduce the battery life.

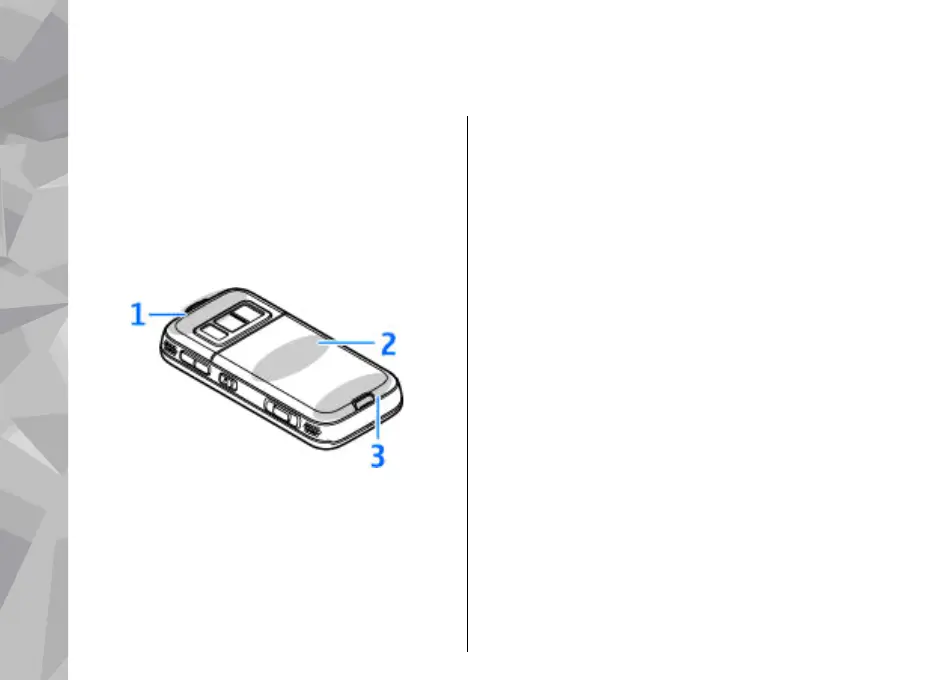

1 — Bluetooth and wireless LAN antenna, and GPS
receiver
2 — FM transmitter antenna
3 — Cellular antenna
Note that the Bluetooth, WLAN, GPS, and FM
transmitter antennas are located in the back cover
of your device. If you change the back cover, check
that the new cover includes these antennas,
otherwise these connections stop working.
8
