Nokia N85 Service Schematics

Version: 1.0 | 07.10.2008 | N85/RM-333/RM-334 | Board version: 2GR_11a | Component Finder - Sub board | Page 11 (12)
Customer Care / GTM / Competence Management
Confidential Copyright © 2008 NOKIA Only for training purposes

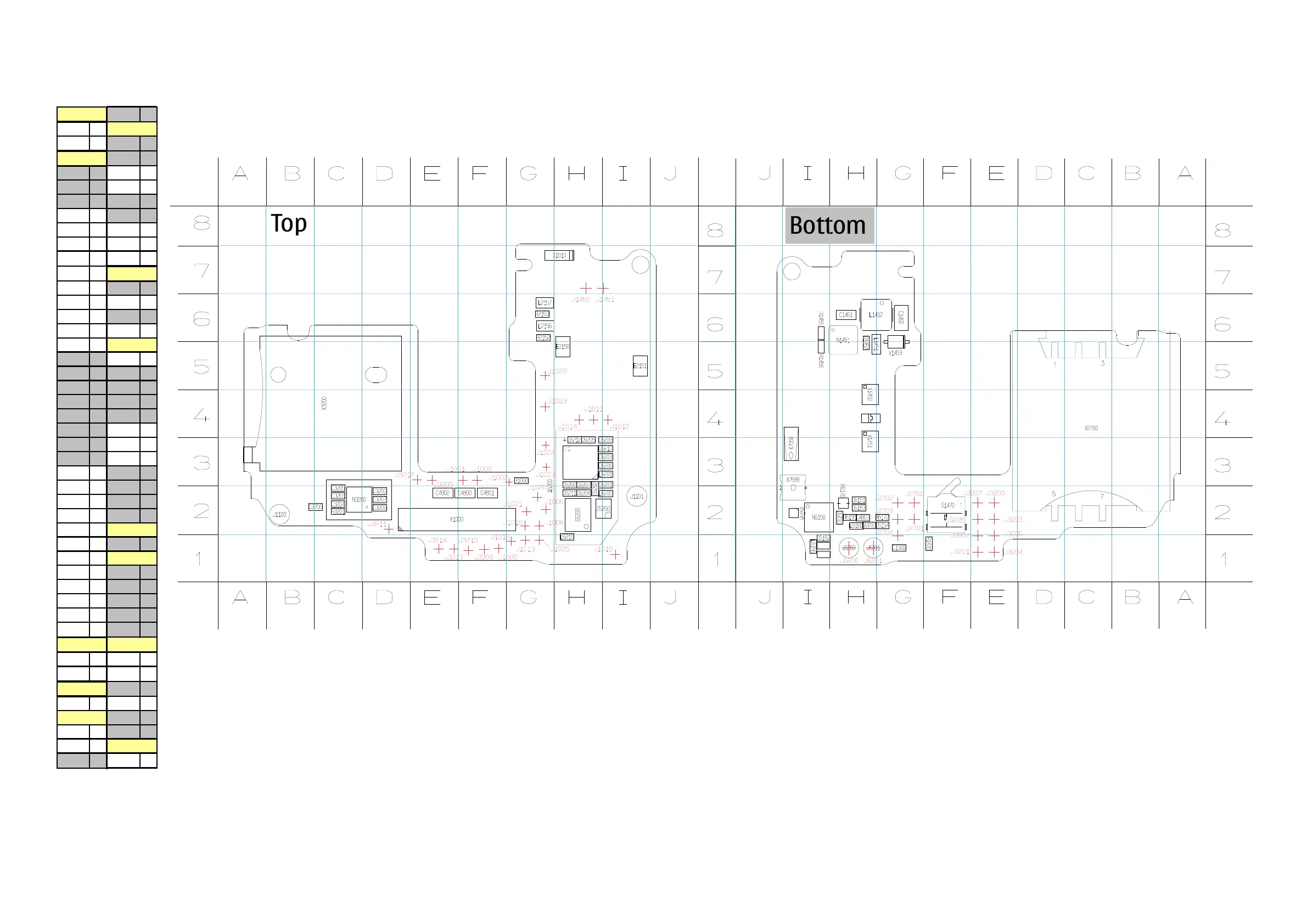

Bottom
Top
J6201 H1
A3200 C2
A6200 H2 L1451 H6
L1452 H6
C1000 G1 L2156 G6
C1460 G6 L2157 G6
C1461 H6 L6156 I1
C2700 C2 L6160 H2
C3200 D2 L6200 I2
C3201 C2 L6201 I3
C3204 C2 L6210 H1
C3205 C2
C3206 D2 N1451 H6
C3207 D2 N3200 C2
C4800 F2 N6150 I2
C4801 F2 N6200 H3
C4802 E2
C4803 H2 R1000 G3
C6150 H2 R1454 H6
C6151 H2 R1455 I6
C6152 I1 R1456 I6
C6153 H2 R1470 F1
C6154 G2 R2152 G6
C6155 H2 R2153 G6
C6156 I1 R3201 C2
C6200 H3 R6155 H2
C6201 I3 R6157 I1
C6202 H2 R6170 H2
C6203 I3 R6172 G2
C6204 H2
C6205 H3 S1470 F2
C6206 I3
C6207 H3 V1450 H4
C6209 I3 V1451 H3
C6210 I3 V1452 H4
C6211 H2 V1453 G6
C6212 H3 V6150 I2
E2150 H5 X1000 E2
E2151 I5 X1010 H7
X2700 C4
G6200 H2 X3200 C4
X7550 I3
J1100 B2 X7599 I3
J1101 I2
J6200 H1 Z6200 I2
N
R
S
V
X
Z
A
C
E
G
J
L
