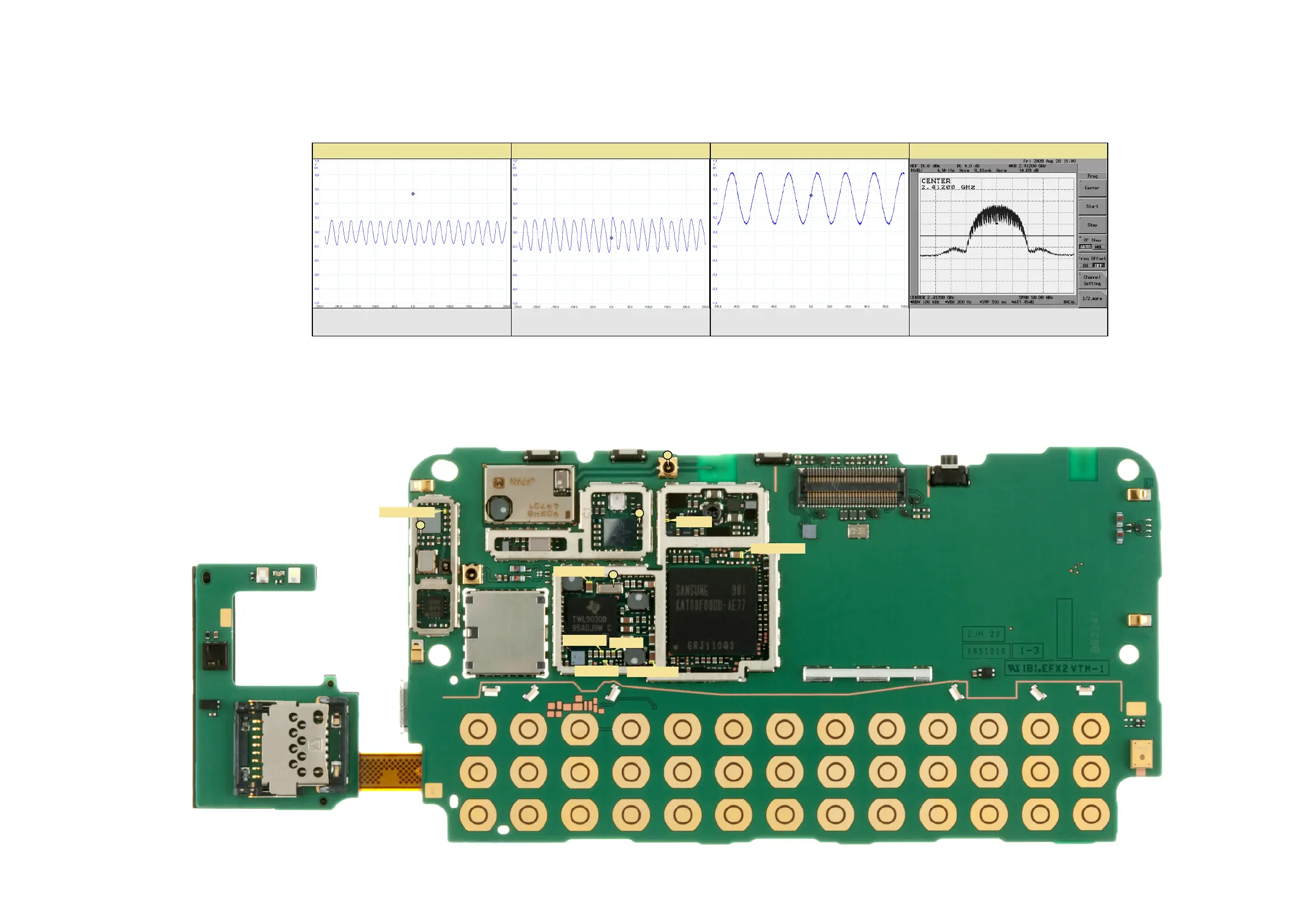

Version: 2.0 | 07.10.2009 | N900/RX-51 | Board version: 2JH_21a | Signal Overview (Top) | Page 14 (18)
Top
Average 19.2 MHz
50ns/div 200mV/div probe:10x
1) BTSYSCLK at C6008
Average 38.4 MHz
50ns/div 200mV/div probe:10x
2) GPS_REFCLK at C6200
RBW:100 kHz VBW:300 Hz SWP: 500 ms
ATT:45 dB SPAN:50 MHz CENTER:2.412 GHz
3) SleepClk at B4240
4) WLAN at X6301
Average 32.768 kHz
20ns/div 200mV/div probe:10x
VBAT 3.7V
V28 2.8V
VDAC 1.8V
VCORE1 1.2V
VCC_TCX0 2.4V
VIO_18 1.8V
V25 2.5V
VSDI_CSI 1.8V
