Nokia N92 - Signal Overview

Customer Care / Training & Vendor Development / Content Creation Team

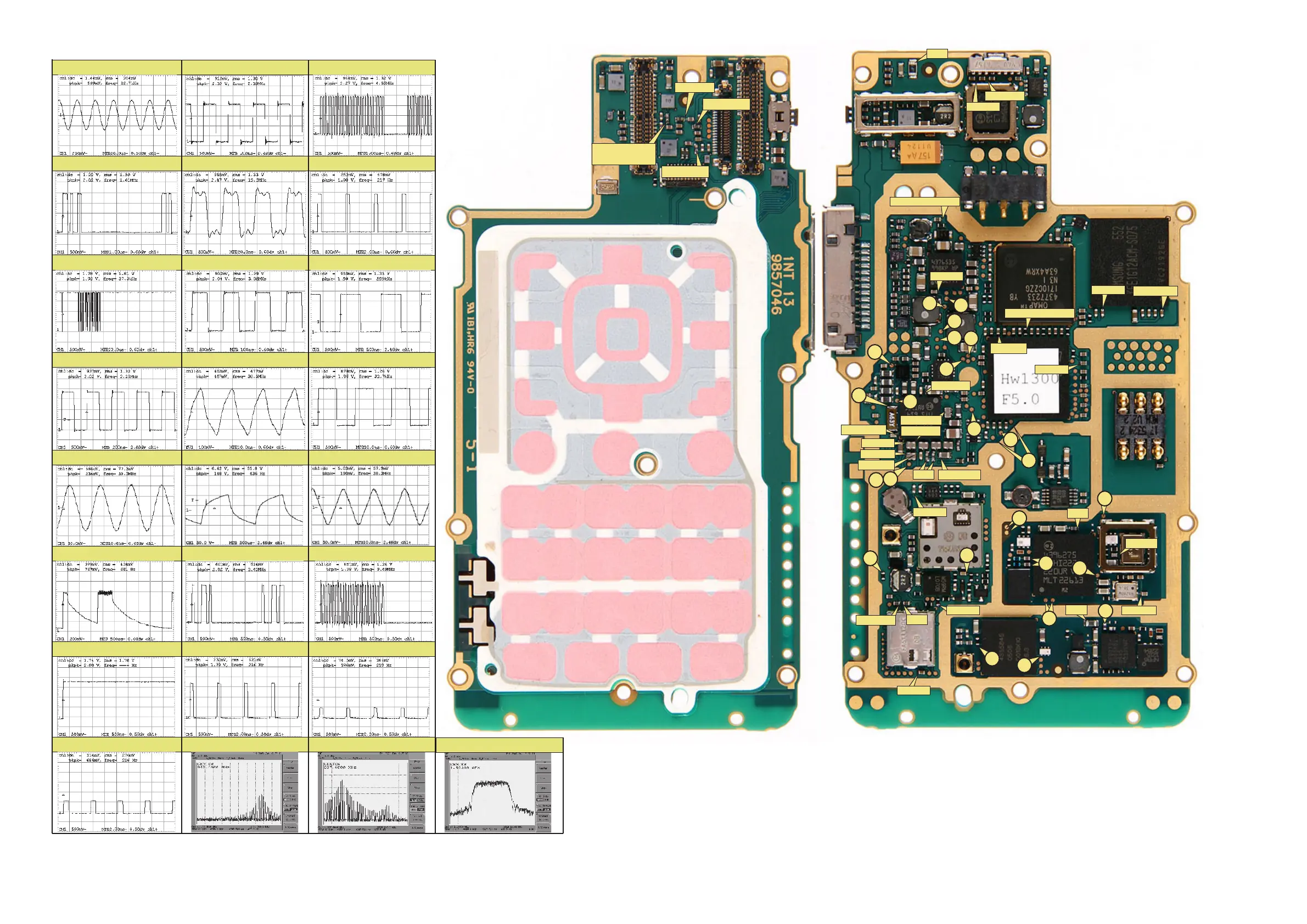

Condential - Copyright © 2006 NOKIA Only for training purposes Version: 3.0 | 20.07.2006 | N92 | Board version: 1NT_13a | | Page 13(14)Signal overview
19) RFBUSEN at J7521
18) RFBUSCLK at J7520
17) RFBUSDA at J7519
15) 38.4MHz at R7563
14) VEL at C4437
12) SleepClk at R6040
11) RFClk at J2800
10) SMPSClk at J2308
9) Clk600 at J2305
8) SIMClk at J2213
7) TxCDa at J2212
6) TxCCtrl at J2211
5) TxCClk at J2210
4) SerData at J2207
3) SerClk at J2206
2) AudioClk at J2200
1) 32.768kHz at B2200
13) RefClk at C6303
16) RX I/Q at J7515 & J7517
21) TXC pwrlev 19 at R7526
20) TXC pwrlev 5 at R7526
23) RX signal at C7514/C7515
22) TXP at J7522 & J7525
24) TX signal at R7522
24) TX signal at R7522
1
2
3
4
5
6
7
8
9
10
11
12
13
14
19
15
16
17
18
20
21
22
22
23
VRCP1=4.7V
VSIM2=1.8V
VR1=2.8V
VRFC=1.8V
VAUX=2.8V
VIO=1.8V
VDRAM=1.8V
VANA=2.5V
VBAT
VCORE=1.35V / 1.05V
VIO=1.8V
VRFC=1.8V
VIO=1.8V
VAUX=2.8V
VIO=1.8V
VBAT
VDRAM=1.8V
VIO=1.8V
VCORE=1.35V / 1.05V
VIO=1.8V
VAUX=2.8V
VBAT
VIO=1.8V
VIO=1.8V
Display off: 3.7V
Display on: 9.4V
VAUX=2.8V
VCAM28=2.8V
VCAM18=1.8V
VR1=2.8V
VBAT
VC RX/TX
VBAT
