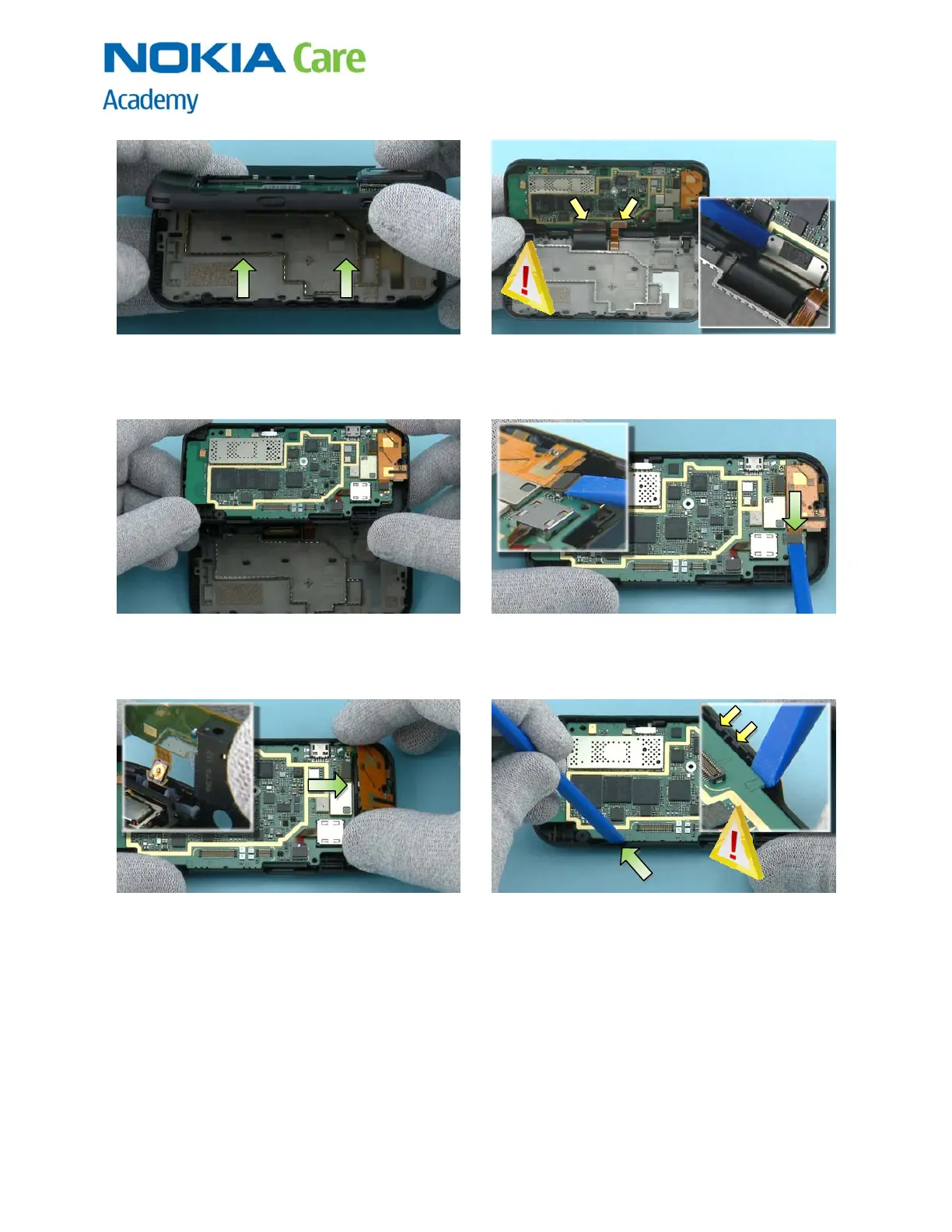

13) Carefully lift up the B-COVER to gain access to
the MAIN FPC and the QWERTY FPC connectors.
14) Open QWERTY FPC and the main FPC connector
from the engine board with the SS-93. While
opening the connectors, be careful not to damage
the connectors - or any nearby components.
15) The B-COVER with the engine board can now be
separated.
16) Open the AV FPC ASSY connector with the SS-93.
17) Lift the AV FPC ASSY carefully up and pull it out. 18) Use the SS-93 to carefully release two clips
holding the engine board.
