11. ASSEMBLY HINTS

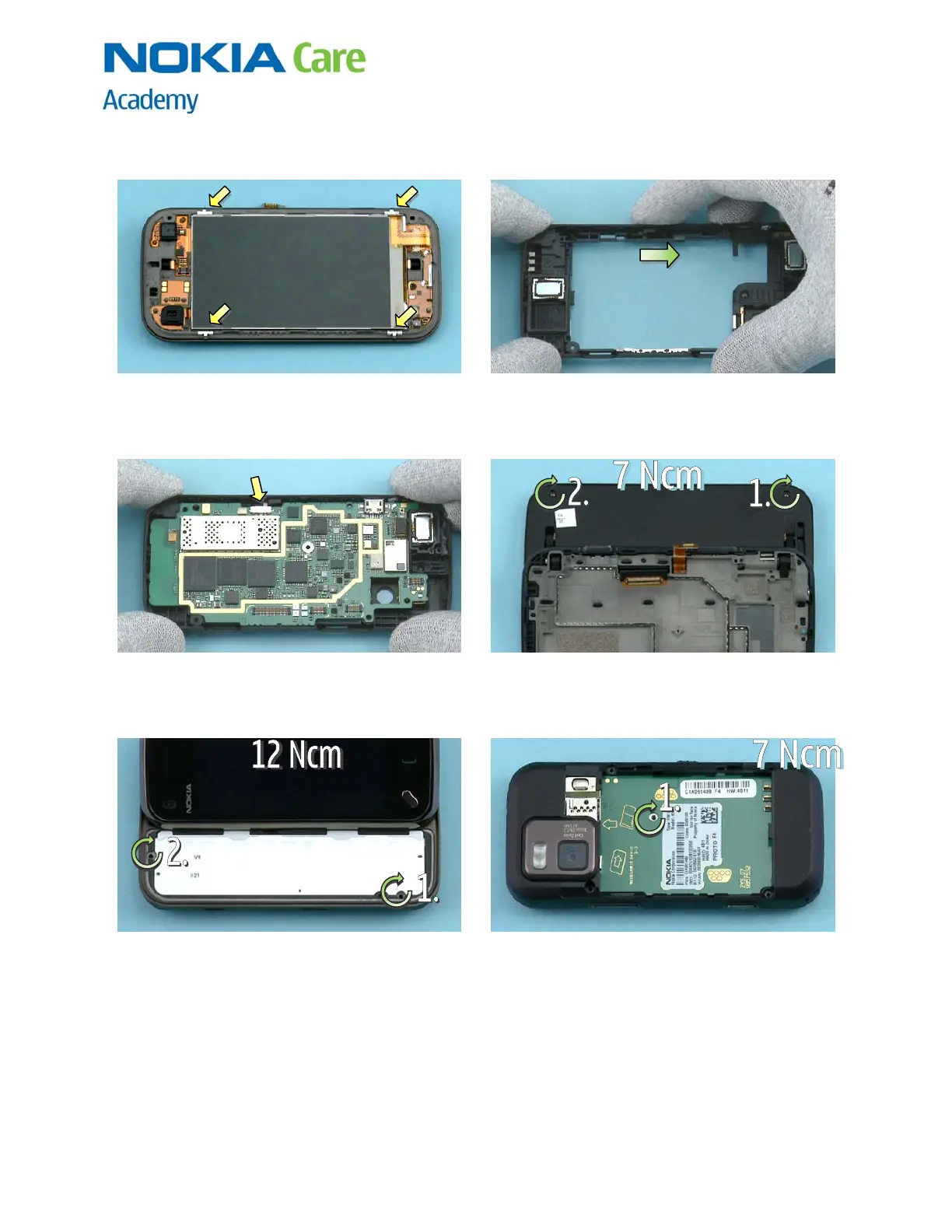

1) Before placing the A-COVER make sure all the four
A-BEZEL GROUND CLIPs are in place.
2) Place the LOCK KEY as shown.
3) After assembling engine board into the B-COVER,
check the right alignment of the LOCK KEY SWICTH.
4) Tighten the two M1.2X2, PANHEAD 2.5X0.6 T
PLUS-4IP screws to the torque of 7 Ncm in the order
shown.
5) Tighten the two M1.4 x 5.8 P3642 screws to the
torque of 12 Ncm in the order shown.
6) Tighten this M1.2X2, PANHEAD 2.5X0.6 T PLUS-
4IPscrew to the torque of 7 Ncm.
