NPE-4 6310/NPL-1 6310i Repairhints
Customer Care Europe & Africa Version 1.0 Approved
SCCE Training Group Date 15.08.2002
© NMP 2002
Checked by:
SCCE Training Group
Approved by:
SCCE
NPL-1 6310i
No service
Drop calls
No TX 1800/1900
Insert Test Sim into phone and try to establish a connection at GSM900/1800 and 1900 with e.g. CMD/Wavetec.
If a connection is established try to make a call. Find out which TX band is faulty.
If a connection is possible in GSM900 only, refer to No GSM1800/1900 later on in this chapter.
Drop calls
If, in all GSM Bands, a connection is possible, but the bit error rate is to high and the connection is bad, set phone too local mode

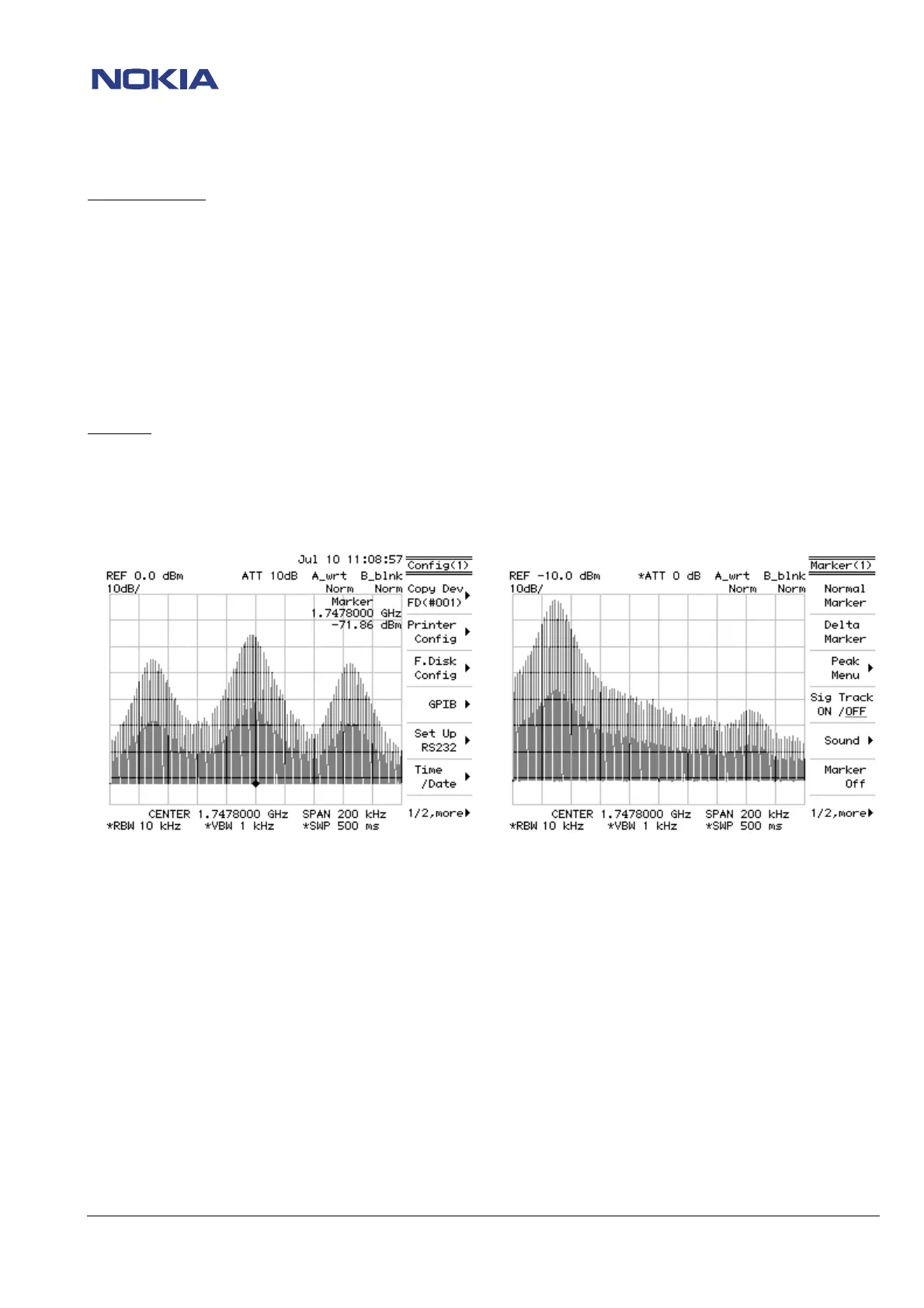

and check TX spectrum at R805 (GSM900) and (See picture below)
Bad spectrum spectrum ok
If the spectrum is not ok, check following measurement points:
VIO = 1.8VDC at R630
VR1A = 4.7VDC at R623
VR2 = 2.8VDC at C622
VR3 = 2.8VDC at R610
VR4 = 2.8VDC at C296
VR5 = 2.8VDC at R628
VR7 = 2.8VDC at C299
TX I and Q at C715/C716 on both sides (See picture below)
To Next Page
