NPE-4 6310/NPL-1 6310i Repairhints
Customer Care Europe & Africa Version 1.0 Approved
SCCE Training Group Date 15.08.2002
© NMP 2002
Checked by:
SCCE Training Group
Approved by:
SCCE
Additional Information

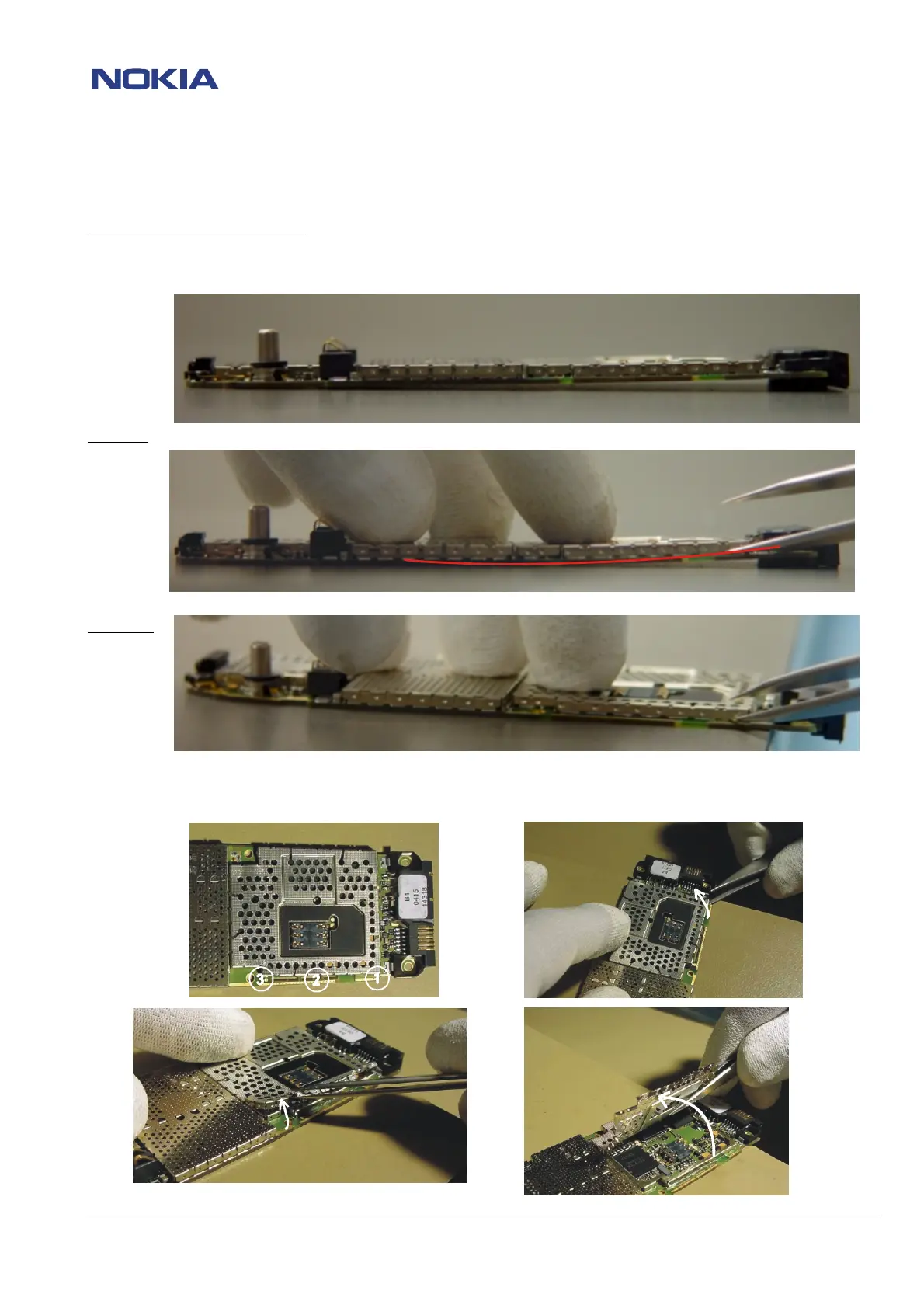

BB shield disassembly instructions
For disassembly it is important to lay the PWB on a plane underground so that the bottom connector is hanging free to prevent
bending of PWB and cracking of the connector´s solderings (See pictures below).
Wrong
Correct
When disassembling the BB shield be very careful because Flash D450 could be damaged (See pictures on next page).
Start by lifting and bending the lid with a tweezer at the marked points 1- 3 (see pictures below).
Do not use too much force on the frame because it could be damaged and the PWB also could be mechanical stressed.
