Nokia RM-1030 User Manual

Service Manual Level 1 and 2
Nokia XL Dual SIM
RM-1030, RM-1042
Version 1.0

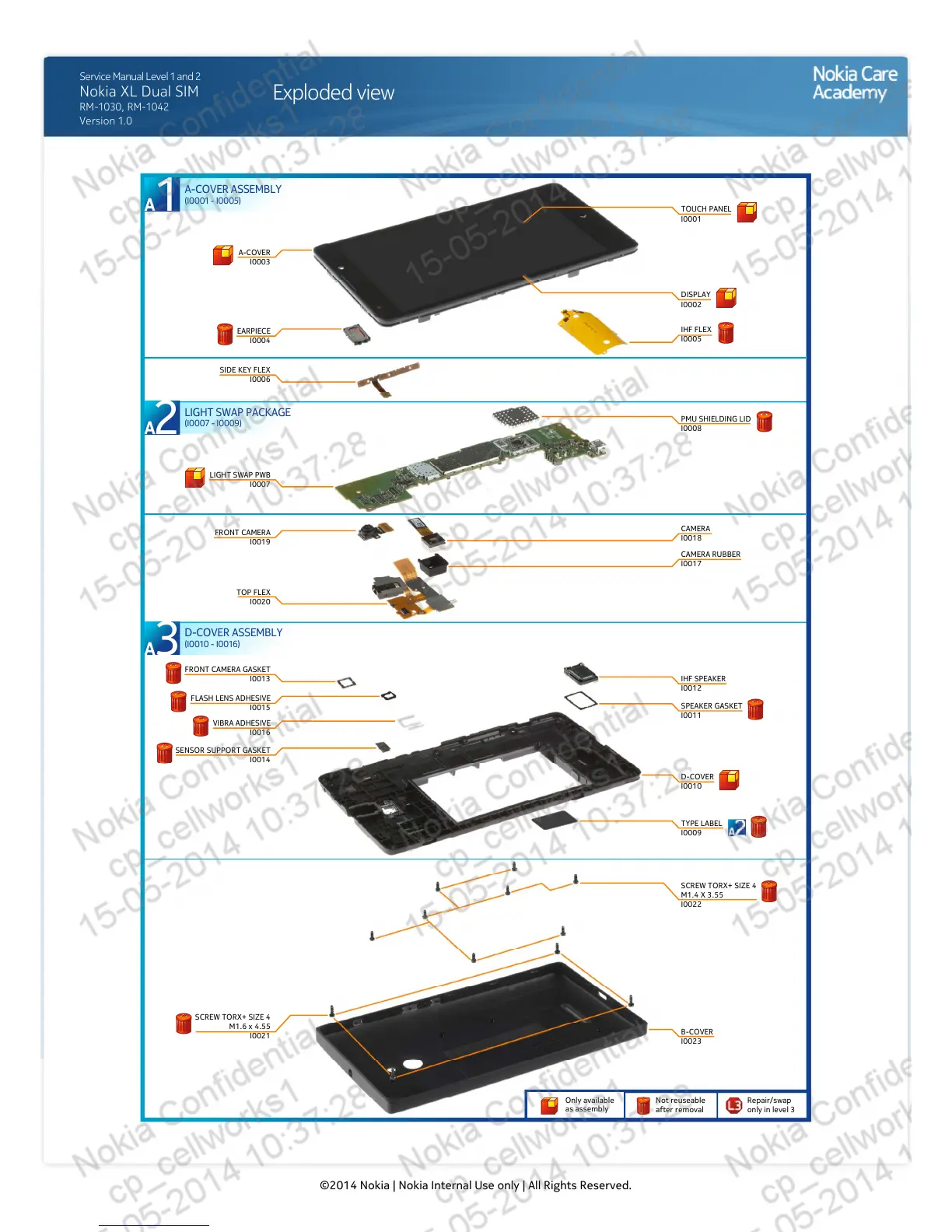

Exploded view
SIDE KEY FLEX
I0006
LIGHT SWAP PWB
I0007
FRONT CAMERA GASKET
I0013
A-COVER
I0003
EARPIECE
I0004
FRONT CAMERA
I0019
TOP FLEX
I0020
FLASH LENS ADHESIVE
I0015
VIBRA ADHESIVE
I0016
SENSOR SUPPORT GASKET
I0014
CAMERA
I0018
CAMERA RUBBER
I0017
DISPLAY
I0002
IHF FLEX
I0005
PMU SHIELDING LID
I0008
IHF SPEAKER
I0012
TYPE LABEL
I0009
B-COVER
I0023
SPEAKER GASKET
I0011
D-COVER
I0010
TOUCH PANEL
I0001
SCREW TORX+ SIZE 4
M1.4 X 3.55
I0022
SCREW TORX+ SIZE 4
M1.6 x 4.55
I0021
LIGHT SWAP PACKAGE
(I0007 - I0009)
2
D-COVER ASSEMBLY
(I0010 - I0016)
3
A-COVER ASSEMBLY
(I0001 - I0005)
1
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
©2014 Nokia | Nokia Internal Use only | All Rights Reserved.

Nokia RM-1030 Specifications

General

Model	Nokia RM-1030
RAM	512 MB
Rear Camera	5 MP
Video	480p@30fps
Secondary Camera	No
Operating System	Microsoft Windows Phone 8.1
Network Technology	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 850 / 900 / 1900 / 2100
Speed	HSPA 21.1/5.76 Mbps
GPRS	Yes
EDGE	Yes
Status	Discontinued
Multitouch	Yes
Protection	Corning Gorilla Glass 3
GPU	Adreno 302
Card slot	microSD, up to 128 GB (dedicated slot)
Alert types	Vibration; MP3, WAV ringtones
Loudspeaker	Yes
3.5mm jack	Yes
WLAN	Wi-Fi 802.11 b/g/n, hotspot
Bluetooth	4.0, A2DP
GPS	Yes, with A-GPS, GLONASS
Radio	FM radio
USB	microUSB 2.0
Sensors	Accelerometer, proximity
Messaging	SMS (threaded view), MMS, Email, Push Email, IM
Browser	HTML5
Music play	Up to 58 h
Colors	Bright Green, Bright Orange, white, black
Dimensions	119.7 x 62.3 x 11.7 mm
Weight	129 g
SIM	Micro-SIM
Type	IPS LCD
Resolution	480 x 800 pixels
Chipset	Qualcomm Snapdragon 200
CPU	1.0 GHz Cortex-A5
Talk time	Up to 13 h 20 min
