6212 classic R
M-396
Service Manual Level 1&2
ISSUE 1
Confidential
12
10.

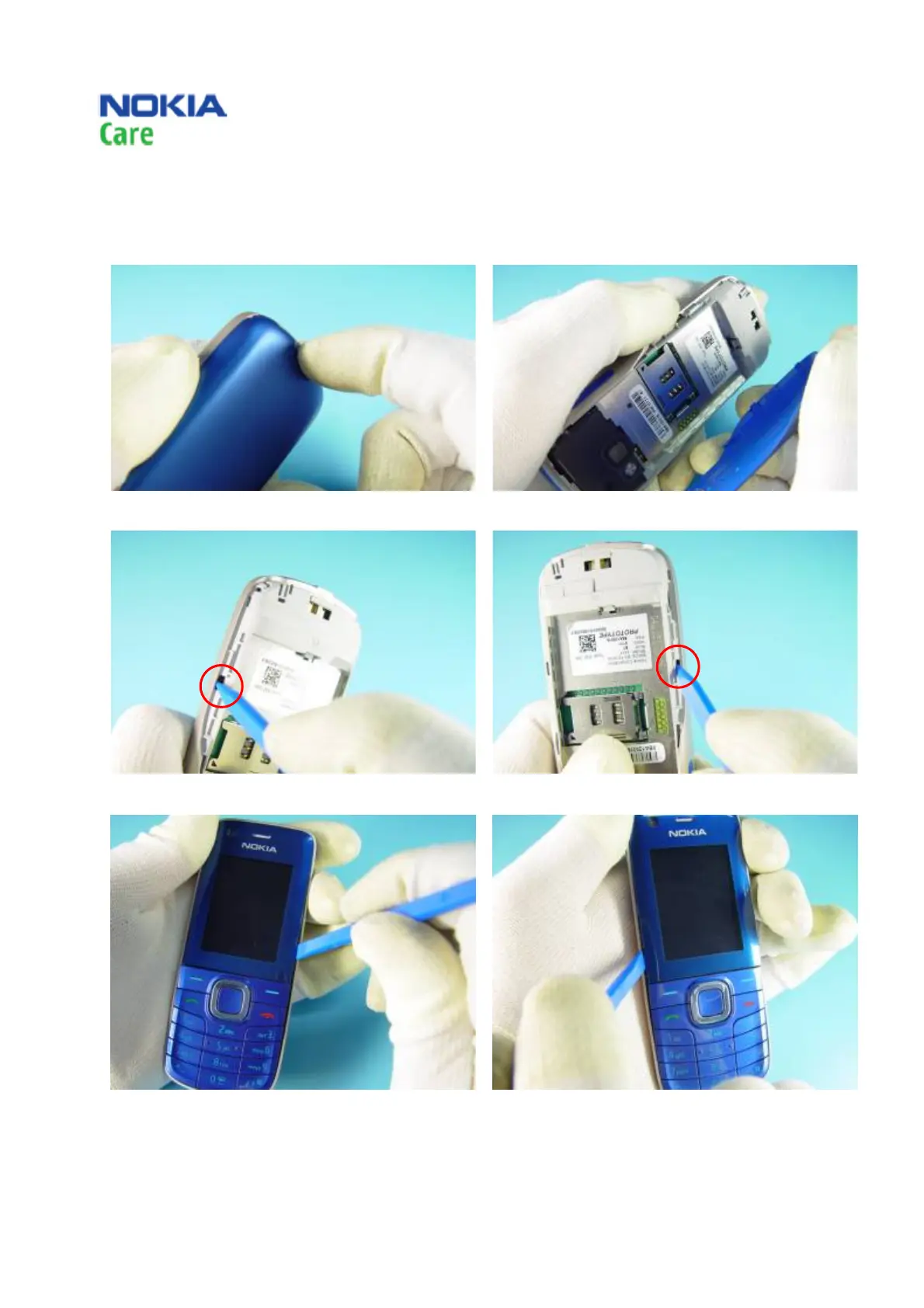

DISASSEMBLY INSTRUCTION
1) Release the B COVER.
2) Remove the B COVER.
3) Open the first clip of the KEYMAT.
4) Open the secon
d clip of the KEYMAT.
5) Open the first clip of the DISPLAY WINDOW
ASSY.
6) Open the first clip on the other side of the
DISPLAY WINDOW ASSY.
Copyright @ 2008 NO
KIA. All rights reser
ved
11
13
Table of Contents
Table of Contents
2
Change History
3
Copyright
4
Warnings and Cautions
5
Warnings
5
Cautions
5
ESD Protection
6
Care and Maintenance
7
Battery Information
8
Exploded View
9
Service Devices
10
SW-Update
11
Disassembly Instruction
12
Assembly Hints
18
Solder Components
19
