Nokia TA-1114 User Guide

Nokia 106 (2018) User Guide
Set up your phone

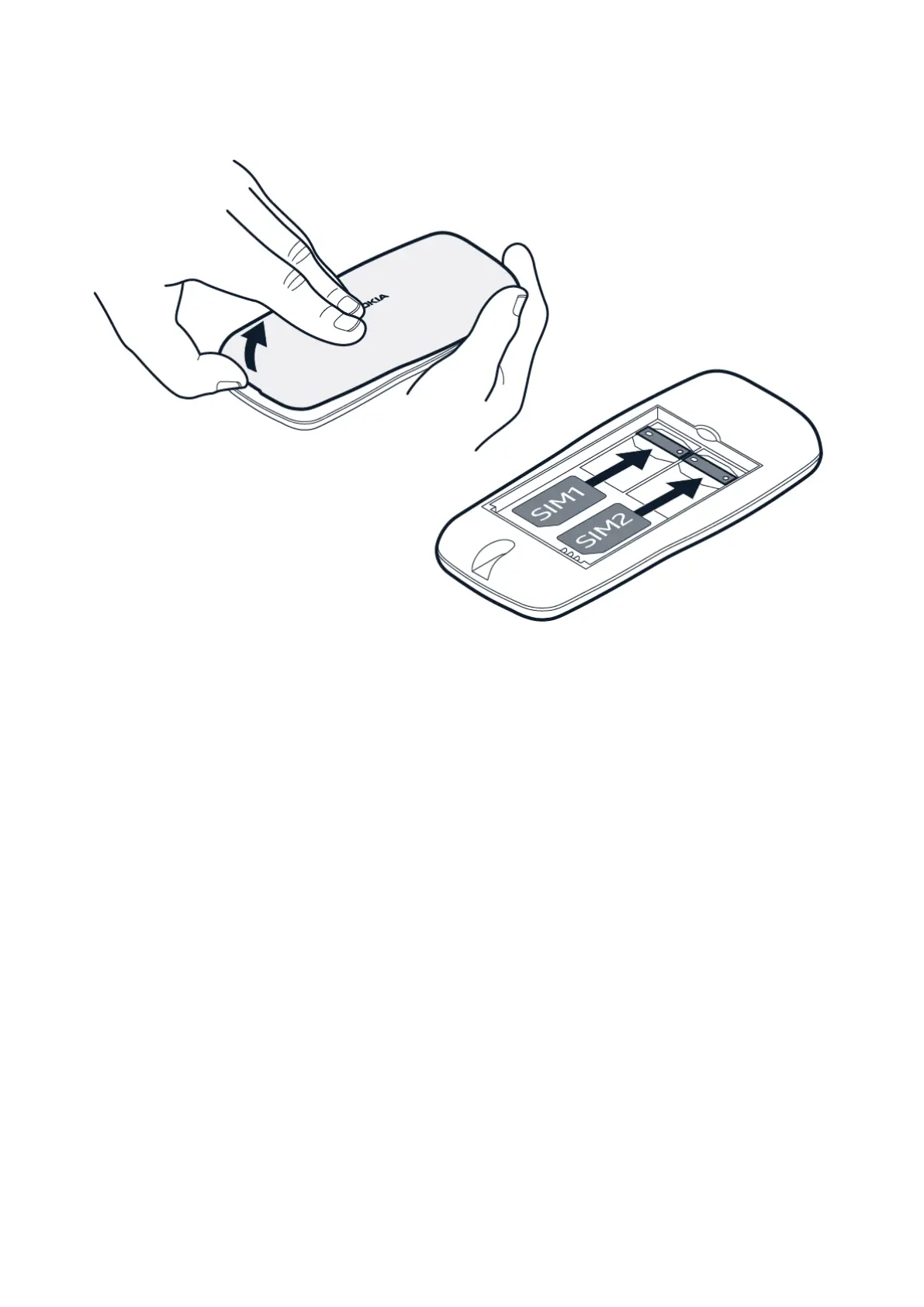

1. Put your fingernail in the small slot at the
bottom of the phone, lift and remove the
cover.
2. If the battery is in the phone, lift it out.
3. Slide the SIM card into the slot with the
contact area face down.
4. Slide the second SIM into the SIM2 slot.
Both SIM cards are available at the same
time when the device is not being used,
but while one SIM card is active, for
example, making a call, the other may be
unavailable.
5. Line up the battery contacts, and put the
battery in.
6. Put back the back cover.
Switch on your phone
Press and hold .
Remove the SIM card
Open the back cover, remove the battery, and slide the SIM out.
© 2023 HMD Global Oy. All rights reserved. 7

Nokia TA-1114 Specifications

General

Radio	FM radio
USB	microUSB 2.0
Loudspeaker	Yes
3.5mm jack	Yes
Model	TA-1114
Network Technology	GSM / HSPA
Bluetooth	4.2, A2DP, LE
SIM	Single SIM or Dual SIM
Alert types	Vibration
Memory Card Slot	microSD
