Nokia TA-1535 User Manual

Nokia C12 User Guide
Some of the accessories mentioned in this user guide, such as charger, headset, or data cable,
may be sold separately.
Parts and connectors, magnetism
Do not connect to products that create an output signal, as this may damage the device. Do
not connect any voltage source to the audio connector. If you connect an external device
or headset, other than those approved for use with this device, to the audio connector, pay
special attention to volume levels.
Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not
place credit cards or other magnetic stripe cards near the device for extended periods of time,
since the cards may be damaged.

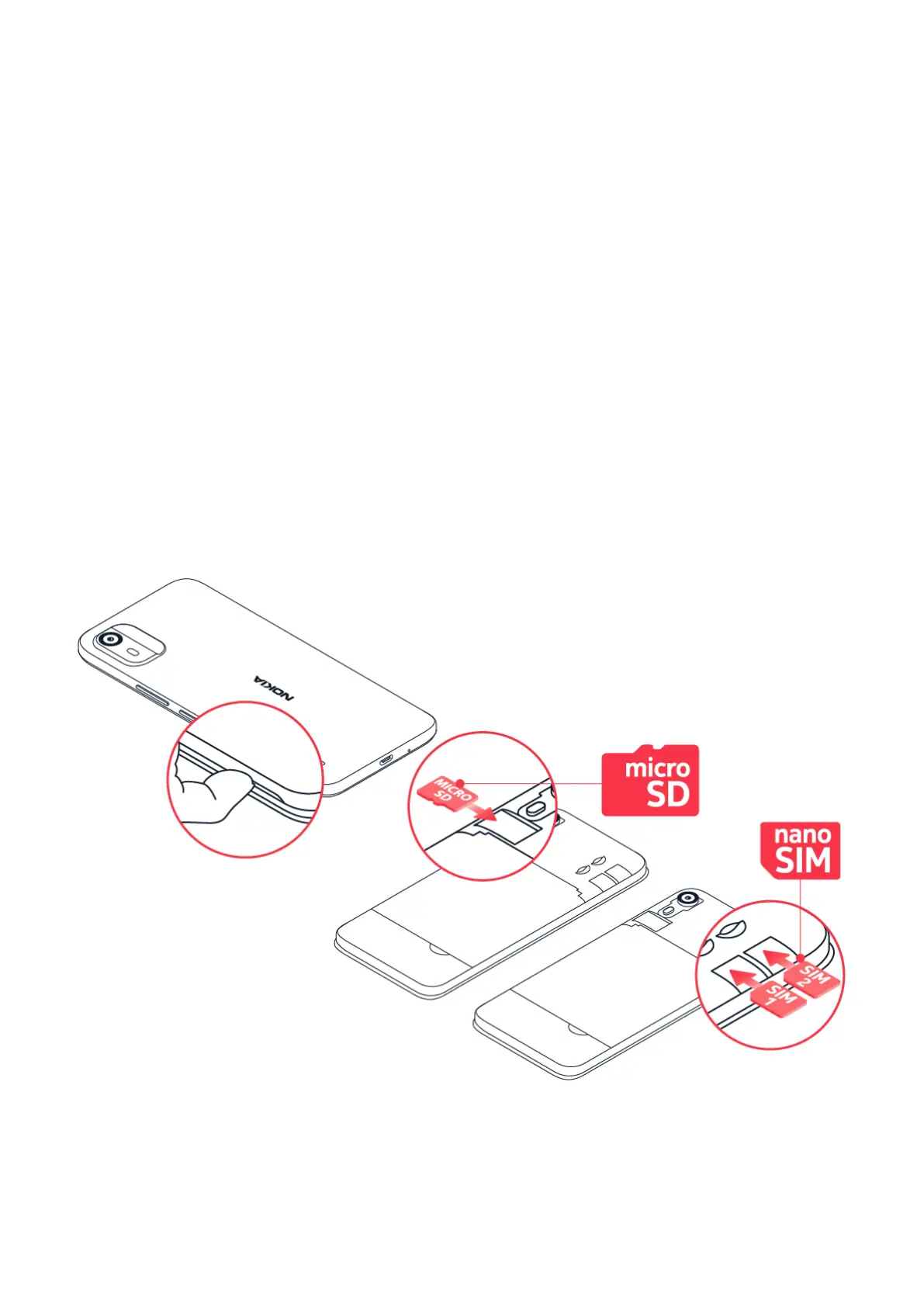

INSERT THE SIM AND MEMORY CARDS
Insert the cards
1. Put your fingernail in the back cover
opening slot, bend the back cover open,
and remove it.
2. Slide the nano-SIM in slot 1 with the
contact area face down.
© 2023 HMD Global Oy. All rights reserved. 7

Nokia TA-1535 Specifications

General

Model	Nokia TA-1535
Network Technology	GSM / HSPA / LTE
SIM	Dual SIM (Nano-SIM, dual stand-by)
Type	Li-Ion 4000 mAh, non-removable
Chipset	Unisoc SC9863A (28nm)
CPU	Octa-core (4x1.6 GHz Cortex-A55 & 4x1.2 GHz Cortex-A55)
GPU	IMG8322
Features	LED flash, HDR
Selfie Camera	5 MP
Loudspeaker	Yes
3.5mm jack	Yes
Bluetooth	5.0, A2DP, LE
GPS	Yes, with A-GPS
NFC	No
Radio	FM radio
Sensors	Accelerometer, proximity
Charging	10W wired
Status	Available
Build	Glass front, plastic back, plastic frame
Main Camera	8 MP, AF
Video	1080p@30fps
WLAN	Wi-Fi 802.11 b/g/n
USB	microUSB 2.0
Models	TA-1535
Colors	Charcoal, Cyan
Resolution	720 x 1600 pixels, 20:9 ratio (~270 ppi density)
Internal	32GB 2GB RAM
