0" best
1" max. allowable
If rear clearance is
greater than 1",
see Figure 2.
615791
615998
616009
616010
616066
3
Certified Lower
Certified
Vent Door
Roof Jack
Models
Kit Number
662, 663
682, 683

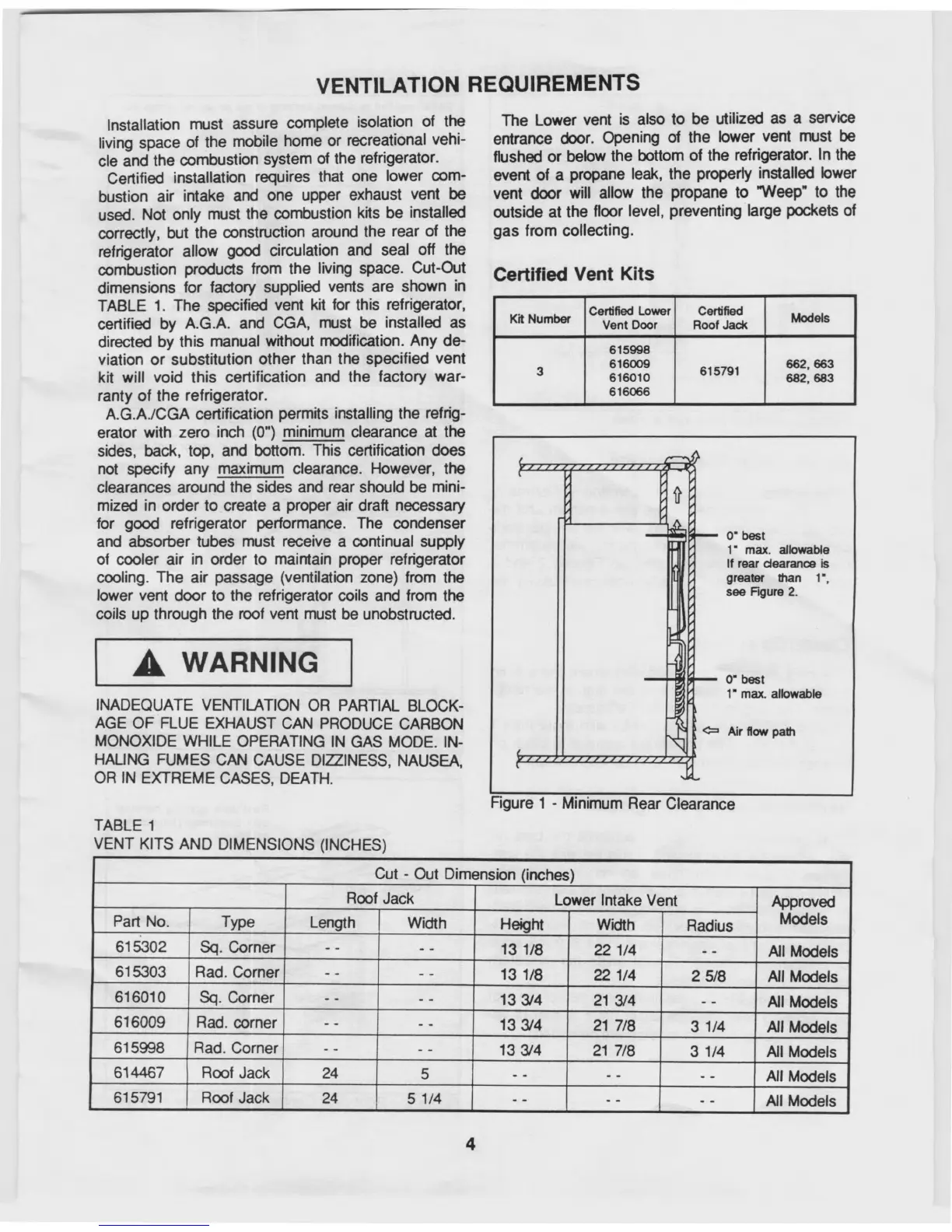

VENTILATION REQUIREMENTS
Installation must assure complete isolation of the
living space of the mobile home or recreational vehi-
cle and the combustion system of the refrigerator.
Certified installation requires that one lower com-
bustion air intake and one upper exhaust vent be
used. Not only must the combustion kits be installed
correctly, but the construction around the rear of the
refrigerator allow good circulation and seal off the
combustion products from the living space. Cut-Out
dimensions for factory supplied vents are shown in
TABLE 1. The specified vent kit for this refrigerator,
certified by A.G.A. and CGA, must be installed as
directed by this manual without modification. Any de-
viation or substitution other than the specified vent
kit will void this certification and the factory war-
ranty of the refrigerator.
A.G.A./CGA certification permits installing the refrig-
erator with zero inch (0") minimum clearance at the
sides, back, top, and bottom. This certification does
not specify any maximum clearance. However, the
clearances around the sides and rear should be mini-
mized in order to create a proper air draft necessary
for good refrigerator performance. The condenser
and absorber tubes must receive a continual supply
of cooler air in order to maintain proper refrigerator
cooling. The air passage (ventilation zone) from the
lower vent door to the refrigerator coils and from the
coils up through the roof vent must be unobstructed.
A
WARNING
INADEQUATE VENTILATION OR PARTIAL BLOCK-
AGE OF FLUE EXHAUST CAN PRODUCE CARBON
MONOXIDE WHILE OPERATING IN GAS MODE. IN-
HALING FUMES CAN CAUSE DIZZINESS, NAUSEA,
OR IN EXTREME CASES, DEATH.
TABLE 1
VENT KITS AND DIMENSIONS (INCHES)
The Lower vent is also to be utilized as a service
entrance door. Opening of the lower vent must be
flushed or below the bottom of the refrigerator. In the
event of a propane leak, the properly installed lower
vent door will allow the propane to
"Weep" to the
outside at the floor level, preventing large pockets of
gas from collecting.
Certified Vent Kits
Figure 1 - Minimum Rear Clearance
Cut - Out Dimension (inches)
Roof Jack
Lower Intake Vent
Part No.
Type
Length
Width
Height
Width
Radius
Approved
Models
615302
Sq. Corner
-
13 1/8
22 1/4
All Models
615303
Rad. Corner
13 1/8
22 1/4
2 5/8
All Models
616010
Sq. Corner
13 3/4
21 3/4
All Models
616009
Rad. corner
13 3/4
21 7/8
3 1/4
All Models
615998
Rad. Corner
13 3/4
21 7/8
3 1/4
All Models
614467
Roof Jack
24
5
615791
Roof Jack
24
5 1/4
All Models
All Models
4
