Norcold DE105 - Door Swing Reversal; Reversing Door Swing Procedure

Reverse
Reverse
Reverse
Reverse the
the
the
the door
door
door
door swing:
swing:
swing:
swing:

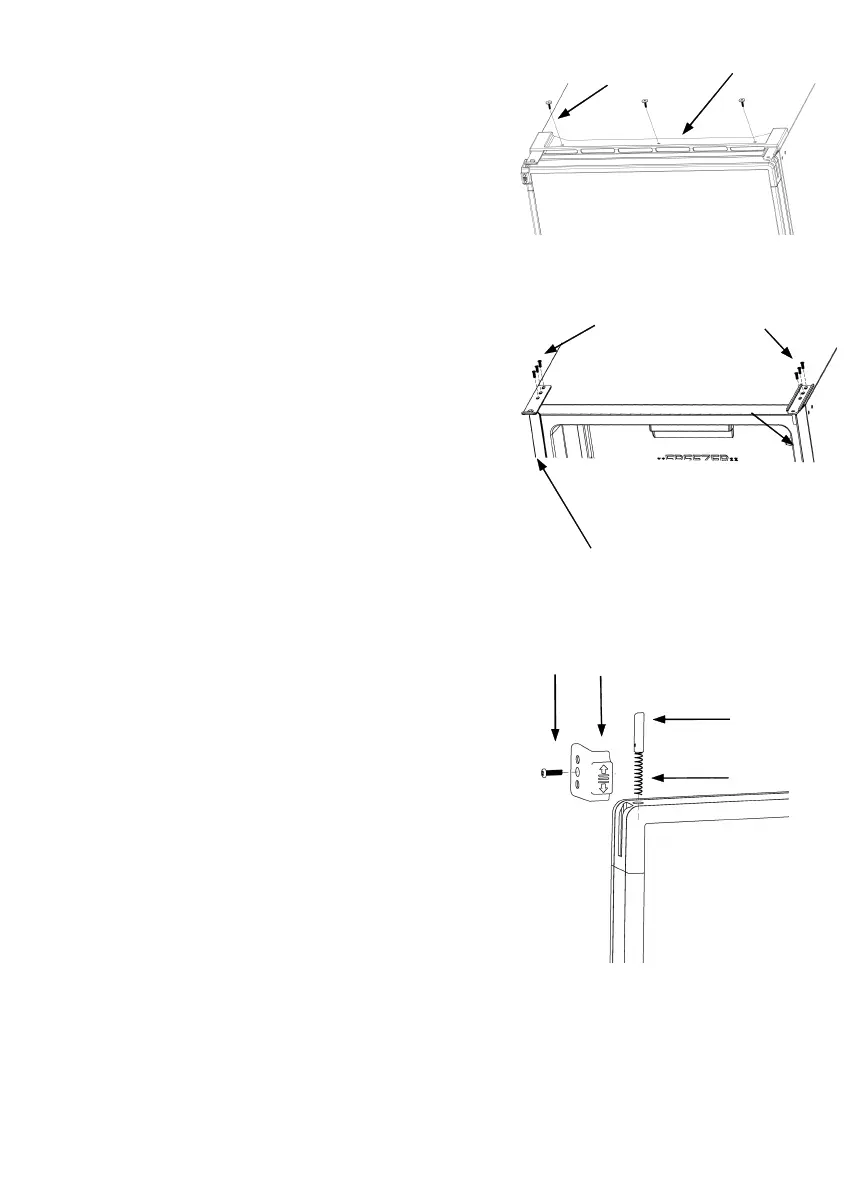

1. Remove the door from the refrigerator by removing the
three ( 3 ) screws that attach the door hinge to the bottom of
the refrigerator.
2. Open the door and pull it off of the top hinge pin.
3. Remove the three (3) screws that attach the grill
4. Remove the three (3) screws that attach the upper
hinge .
5. Remove the bolt that attaches the door latch plate to the
top of the refrigerator .
6. Remove the upper hinge and the door latch plate
from the refrigerator.
7. Attach the upper hinge and the door latch plate to the
opposite sides of the refrigerator.
8. Move the latch to the opposite side of the door .
- Remove the screw that attaches the latch handle and
the latch pin.
- Remove the latch handle pin and the coil spring from
the door.
- Move the set screw to opposite side of the latch
pin.
- Assemble the coil spring and the latch pin into the
opposite side of the door.
- Attach the handle to the latch pin.
- Make sure that the angled end of the latch pin is up
9. Put the door onto the refrigerator and make sure that
the gasket seals correctly.
10. Install and tighten the three ( 3 ) screws that attach
the door hinge to the bottom of the refrigerator.
S crews
Grill
Door lock panel
Door hinge
Bolts
Bolts
Bolts
Latch pin
Coil spring
Latch handle
