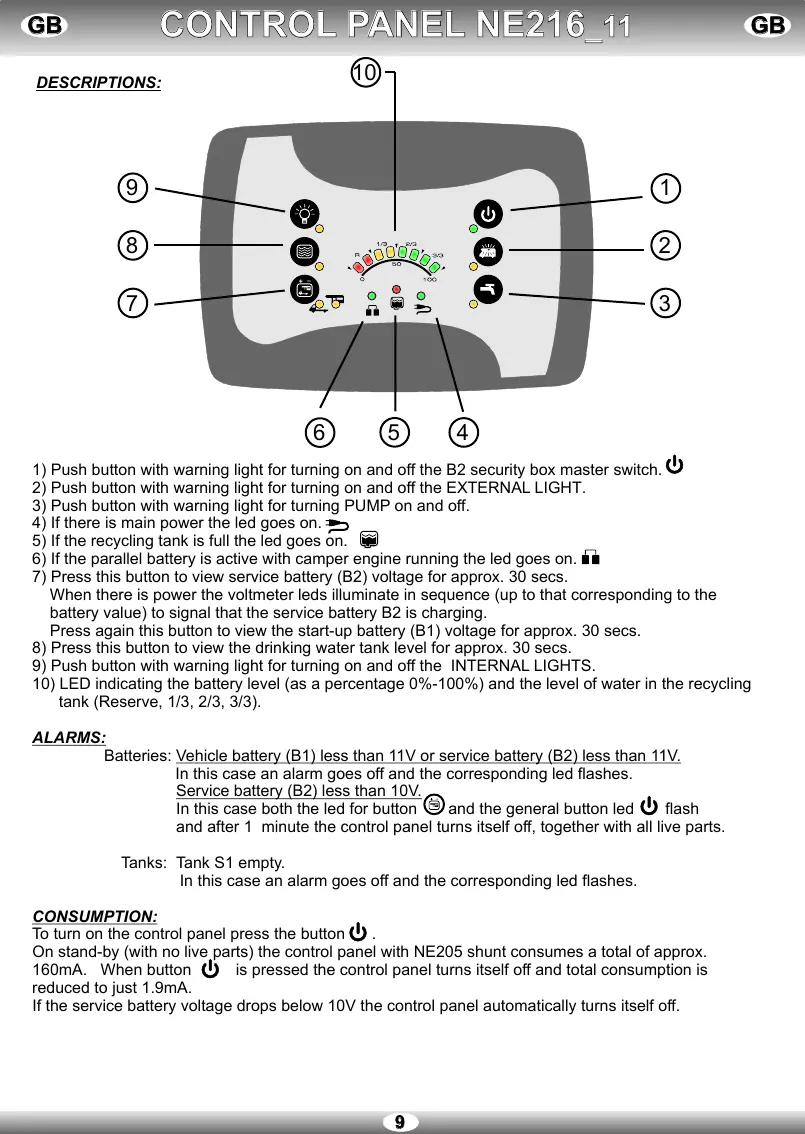

CONTROL PANEL NE216_11CONTROL PANEL NE216_11
GBGBGBGB
99
DESCRIPTIONS:
1) Push button with warning light for turning on and off the B2 security box master switch.
2) Push button with warning light for turning on and off the EXTERNAL LIGHT.
3) Push button with warning light for turning PUMP on and off.
4) If there is main power the led goes on.
5) If the recycling tank is full the led goes on.
6) If the parallel battery is active with camper engine running the led goes on.
7) Press this button to view service battery (B2) voltage for approx. 30 secs.
When there is power the voltmeter leds illuminate in sequence (up to that corresponding to the
battery value) to signal that the service battery B2 is charging.
Press again this button to view the start-up battery (B1) voltage for approx. 30 secs.
8) Press this button to view the drinking water tank level for approx. 30 secs.
9) Push button with warning light for turning on and off the INTERNAL LIGHTS.
10) LED indicating the battery level (as a percentage 0%-100%) and the level of water in the recycling
tank (Reserve, 1/3, 2/3, 3/3).
ALARMS:
Batteries: Vehicle battery (B1) less than 11V or service battery (B2) less than 11V.
In this case an alarm goes off and the corresponding led flashes.
Service battery (B2) less than 10V.
In this case both the led for button and the general button led flash
and after 1 minute the control panel turns itself off, together with all live parts.
Tanks: Tank S1 empty.
In this case an alarm goes off and the corresponding led flashes.
CONSUMPTION:
To turn on the control panel press the button .
On stand-by (with no live parts) the control panel with NE205 shunt consumes a total of approx.
160mA. When button is pressed the control panel turns itself off and total consumption is
reduced to just 1.9mA.
If the service battery voltage drops below 10V the control panel automatically turns itself off.
1
9
8
7
2
3
6
5
4
10
