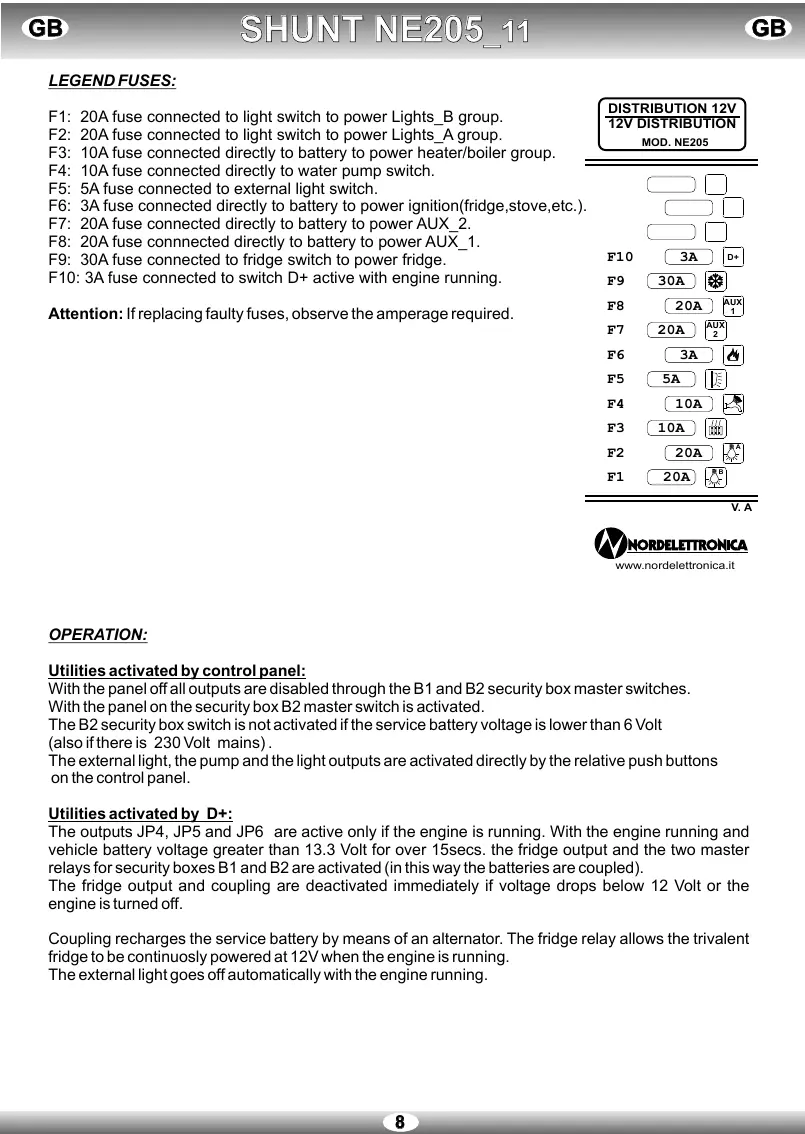

LEGEND FUSES:
F1: 20A fuse connected to light switch to power Lights_B group.
F2: 20A fuse connected to light switch to power Lights_A group.
F3: 10A fuse connected directly to battery to power heater/boiler group.
F4: 10A fuse connected directly to water pump switch.
F5: 5A fuse connected to external light switch.
F6: 3A fuse connected directly to battery to power ignition(fridge,stove,etc.).
F7: 20A fuse connected directly to battery to power AUX_2.
F8: 20A fuse connnected directly to battery to power AUX_1.
F9: 30A fuse connected to fridge switch to power fridge.
F10: 3A fuse connected to switch D+ active with engine running.
Attention: If replacing faulty fuses, observe the amperage required.
OPERATION:
Utilities activated by control panel:
With the panel off all outputs are disabled through the B1 and B2 security box master switches.
With the panel on the security box B2 master switch is activated.
The B2 security box switch is not activated if the service battery voltage is lower than 6 Volt
(also if there is 230 Volt mains) .
The external light, the pump and the light outputs are activated directly by the relative push buttons
on the control panel.
Utilities activated by D+:
The outputs JP4, JP5 and JP6 are active only if the engine is running. With the engine running and
vehicle battery voltage greater than 13.3 Volt for over 15secs. the fridge output and the two master
relays for security boxes B1 and B2 are activated (in this way the batteries are coupled).
The fridge output and coupling are deactivated immediately if voltage drops below 12 Volt or the
engine is turned off.
Coupling recharges the service battery by means of an alternator. The fridge relay allows the trivalent
fridge to be continuosly powered at 12V when the engine is running.
The external light goes off automatically with the engine running.
SHUNT NE205_11SHUNT NE205_11
GBGBGBGB
88
F1 20A
AUX
1
F2 20A
F3
10A
F4 10A
F5
5A
F6 3A
F7
20A
F8 20A
F9
30A
F10 3A
MOD. NE205
V. A
DISTRIBUTION 12V
12V DISTRIBUTION
B
A
AUX
2
D+
www.nordelettronica.it
