28
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first press the power switch and unplug the
power cord.
Next, use a standard screwdriver and pry the Shield
Disc (97) off the Left Outer Shield (98).

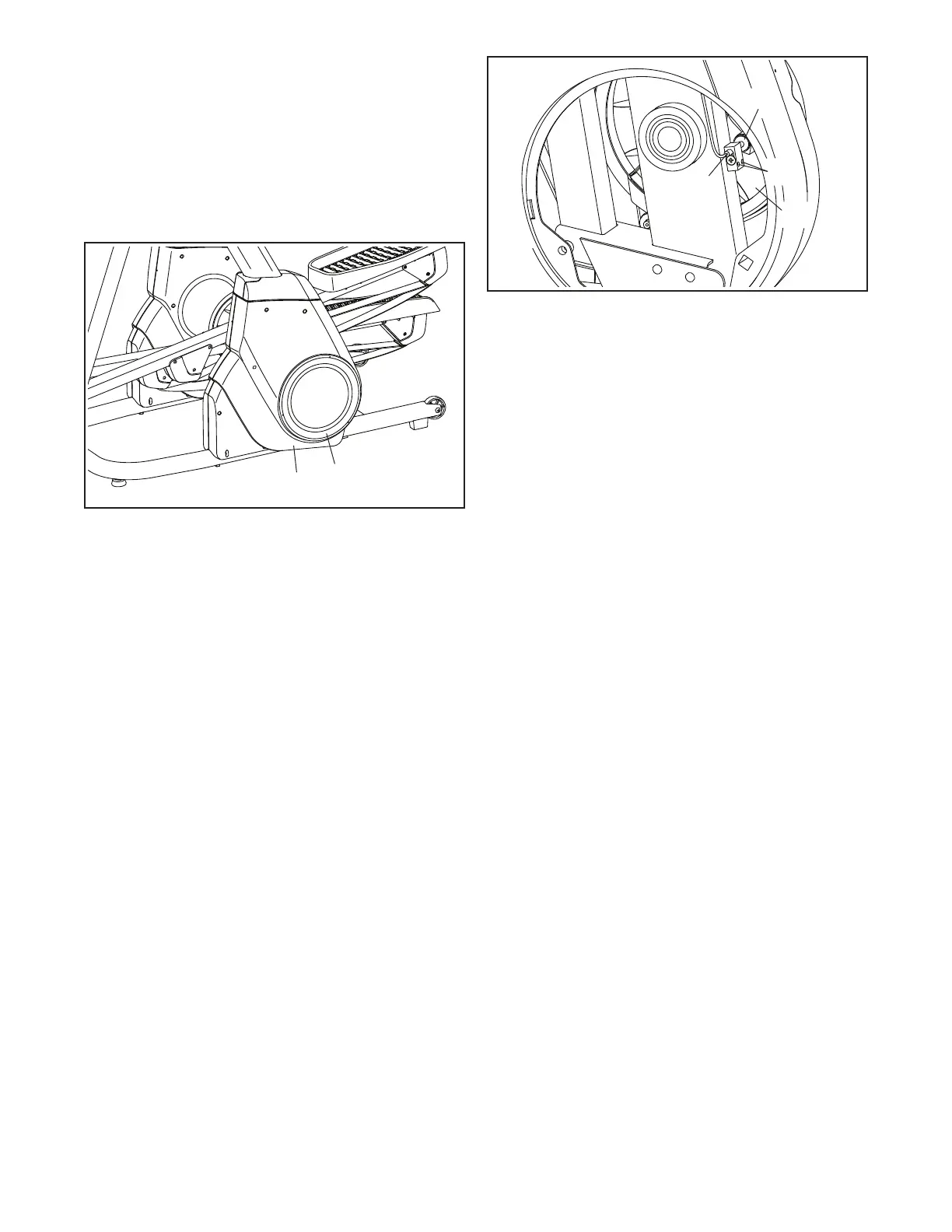

See the drawing at the right. Locate the Reed
Switch (55). Turn the Right Inner Disc (107) until a
Magnet (113) is aligned with the Reed Switch.
Then, slightly loosen the two M4 x 25mm Screws (10)
and slide the Reed Switch (55) slightly closer to or
away from the Magnet (113).
Plug in the power cord, press the power switch, and
rock the Right Inner Disc (107) forward and backward
so that the Magnet (113) passes the Reed Switch (55)
repeatedly. Repeat these actions until the console
displays correct feedback.
When the reed switch is correctly adjusted, retighten
the two M4 x 25mm Screws (10), reattach the Shield
Disc (97), and plug in the power cord.
98
97
55
10
113
107
