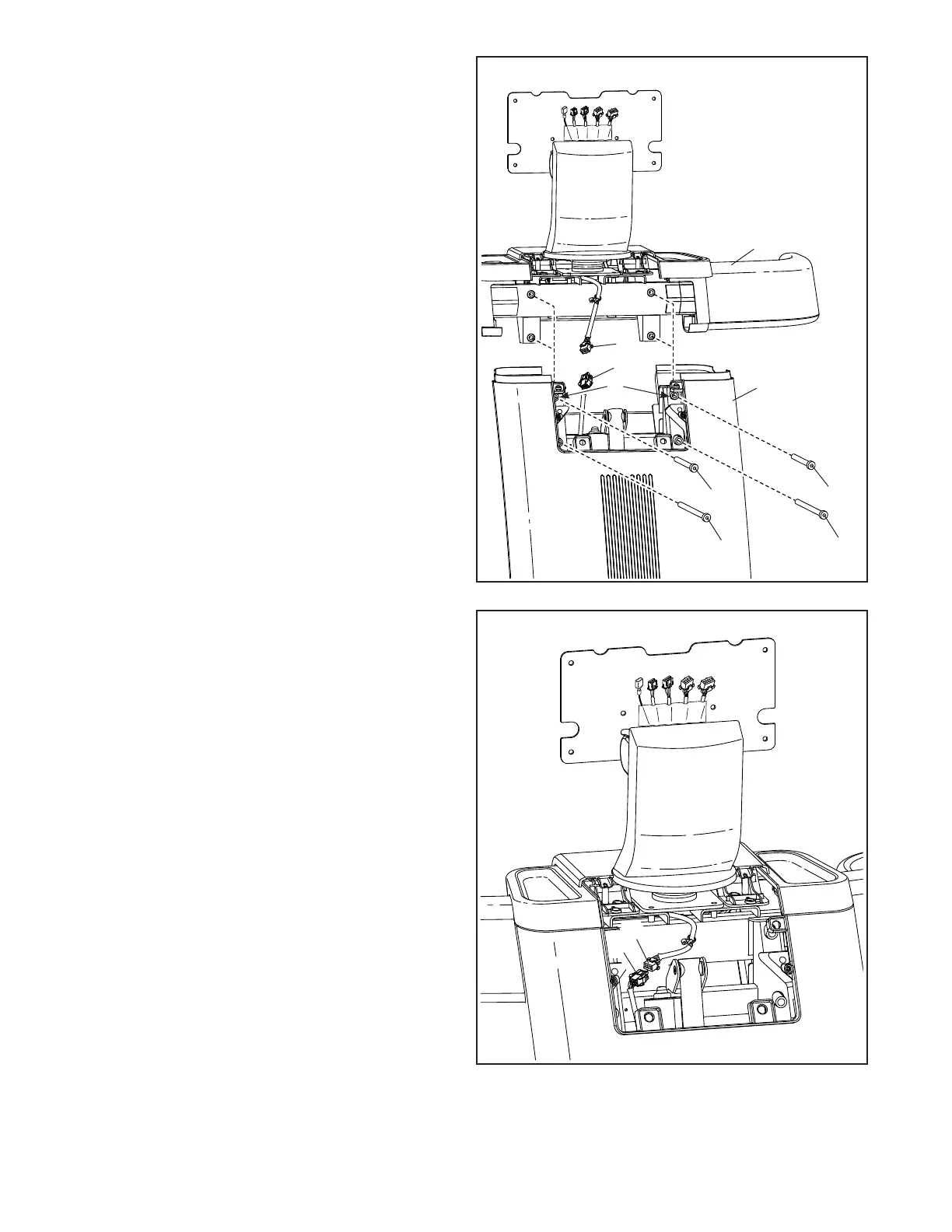

10. Be careful not to pinch the wires (L, M)
during this step.
With the help of a second person, set the
console base assembly (N) on the upright
assembly (F).
Attach the console base assembly (N) with two
3/8" x 2 1/4" Screws (1) and two 3/8" x 3 3/4"
Screws (3). IMPORTANT: Insert the Screws
horizontally—not at an angle—into the upper
holes (O). Start all four Screws, and then
tighten them.
L
M
O
1
3
N
F
1
3
11
11. Connect the two indicated wires (L, M). The wire
connectors should slide together easily and
snap into place with an audible click. If they
do not, turn one connector and try again.
L
M
To Next Page
