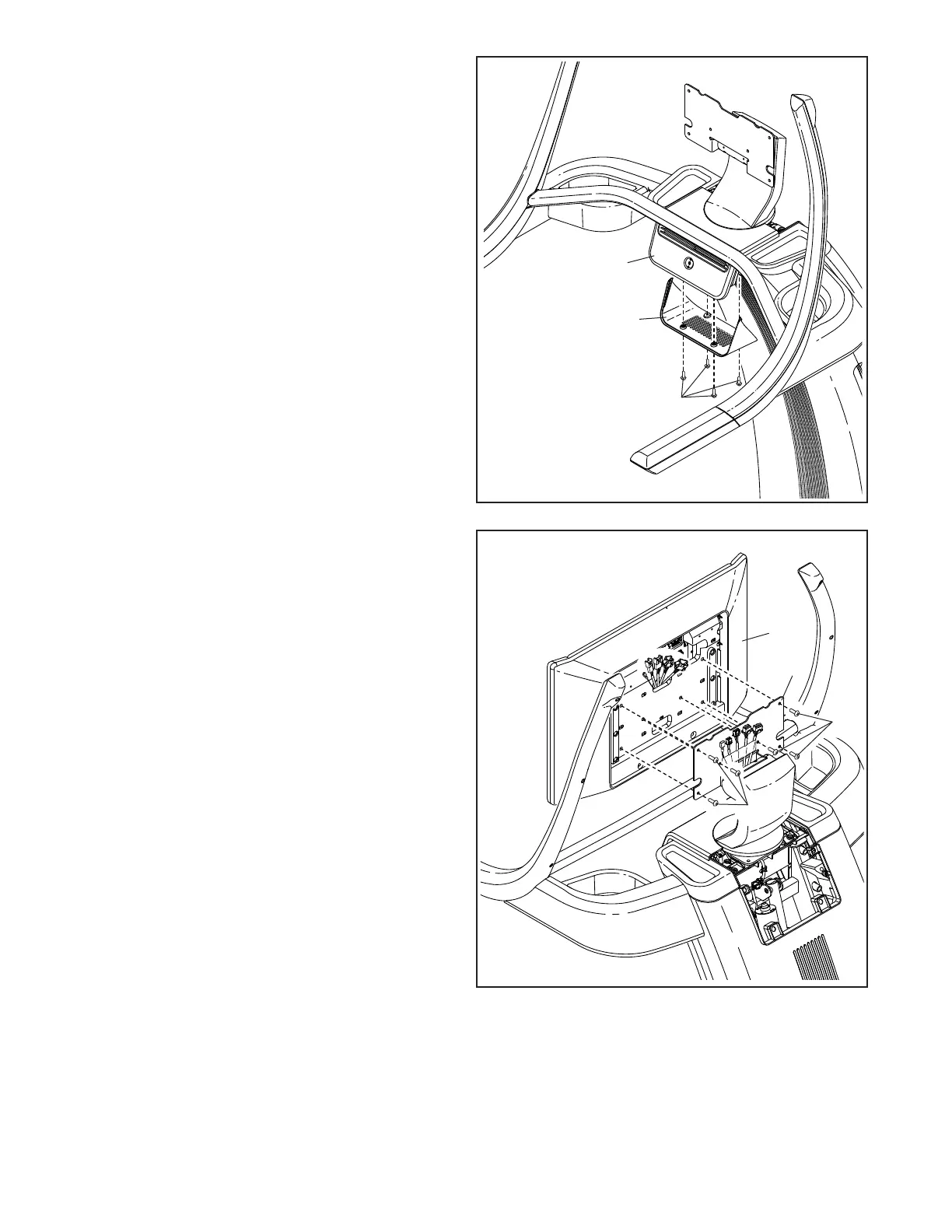

16. Attach the Console Cover (120) to the bottom
of the Primary Console (119) with four #8 x 3/4"
Screws (2); start all four Screws, and then
tighten them. Be careful not to overtighten
the Screws.
16
119
120
2
17. Be careful not to pinch any wires during this
step.
With the help of a second person, attach the con-
sole assembly (S) to the Console Plate (133) with
six M6 x 20mm Screws (4); start all six Screws,
and then tighten them.
133
4
S
17
4
