M3 Dewnflow Furnace
1 Door Assembly - Louvered
Filter Inside Door
3 Blower Assembly
4 Control Board
5 Pressure Switch
6 Flame Rollout Switch
"J" Trap Hard Tube
8 LowVoltage Transformer
9 In Line Drain Assembly
10 Junction Box
11 Vent Safety Switch
12 Ignitor Assembly
13 BurnerView Port
14 Main Limit Switch
15 Coil Cabinet Assembly (Optional)
16 Flame Sensor (On Burner Box)
17 Gas Valve
18 Switch, On/Off
19 Blower, Inducer
20 Orifice(In BurnerBox)
21 Aux. Limit
BurnerBox

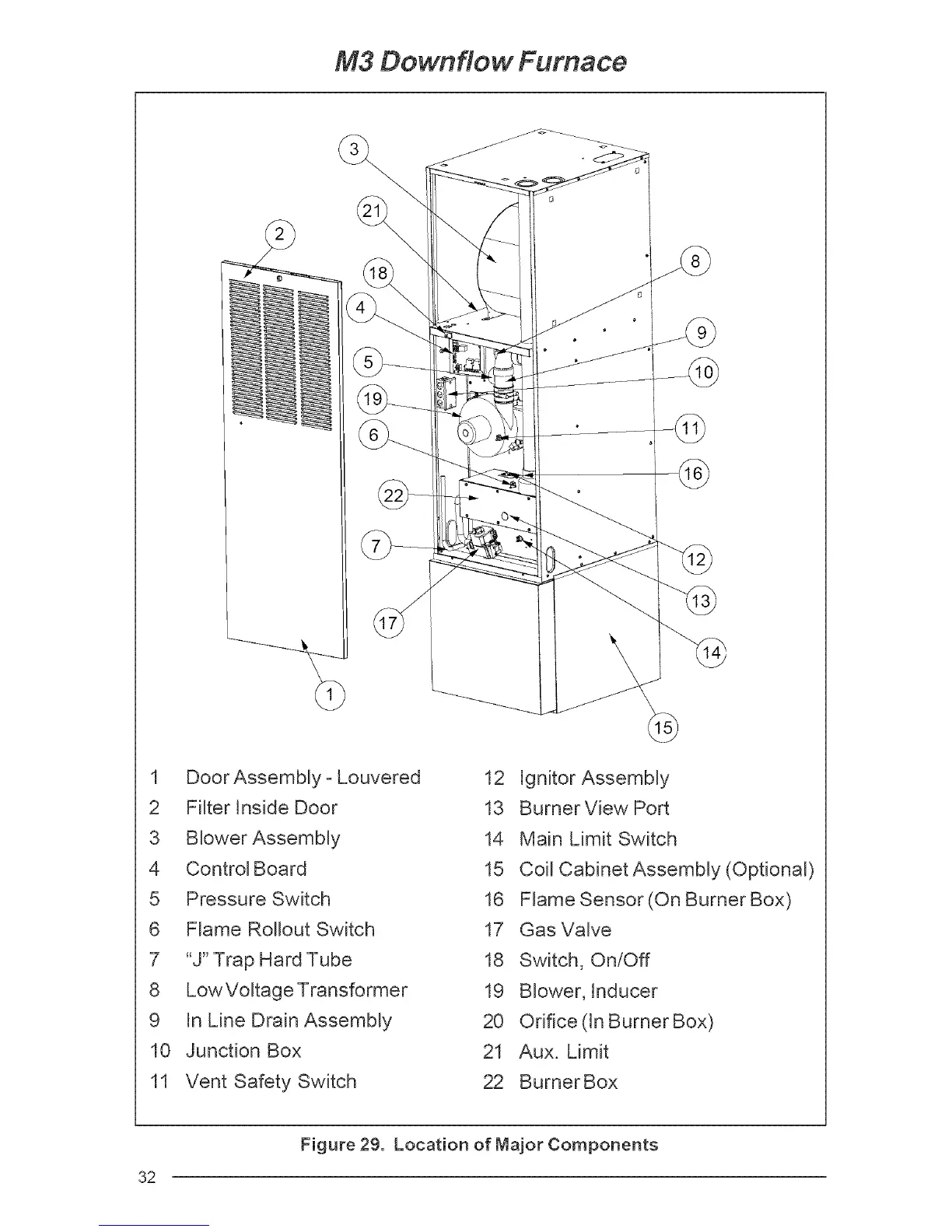

Figure 29. Location of Major Components
32
