Heat Exchanger Replacement Procedure
Diagram

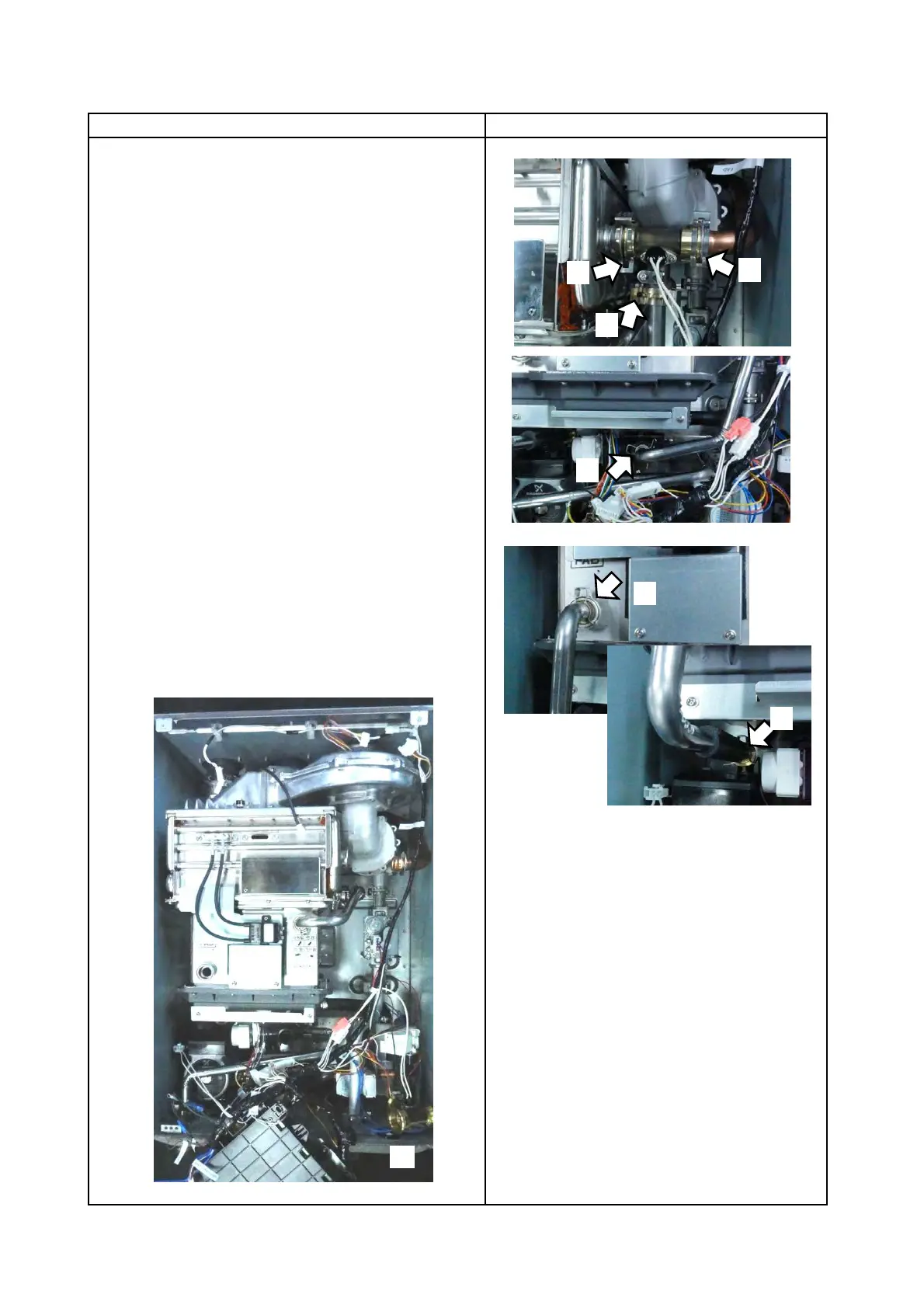

5. Remove Pipes for NRCB199DV/NRCB180DV
(Refer to page 7 for EZ111DV/EZ98DV or NCC199CDV.)
(1) Remove 4 "C" Clamps,
Pipe - T-Elbow to Relief Valve Connection,
Pipe - T-Elbow to Distribution Valve - Heating and
T-Elbow.
(2) Tilt T-Elbow to the bottom of the unit.
(3) Remove 2 "C" Clamps and
Pipe - Pump Outlet - Elbow to Secondary SS HEX.
Page 8
Procedure
(2)
(1)
(1)
(1)
(3)
(3)
(1)
