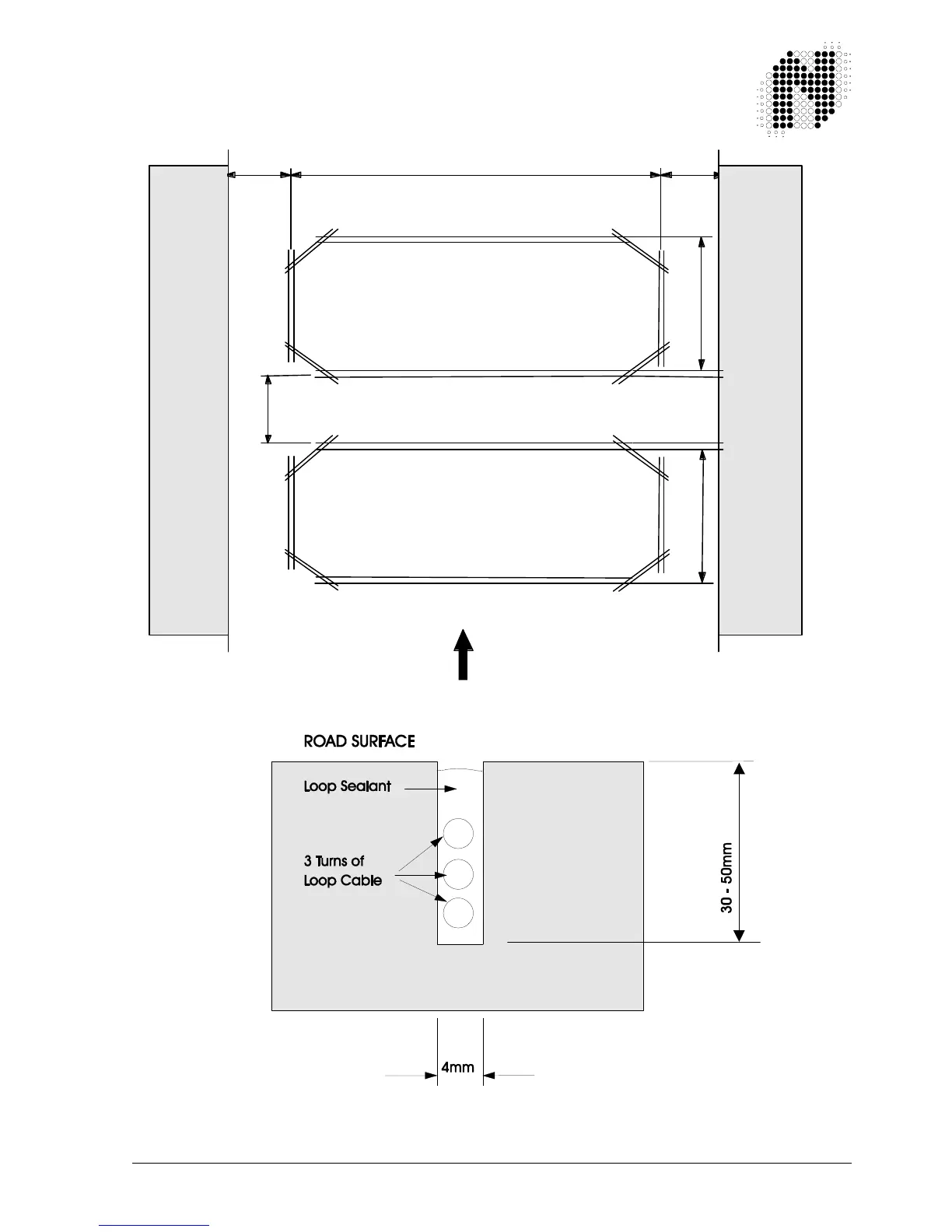

Figure 5.1 Adjacent loops connected to different detector modules
Figure 5.2 Slot Details
45° CROSSCUT TO PROVIDE STRESS RELIEF
TRAFFIC DIRECTION
MIN DISTANCE APART -
MAX DISTANCE APART -
2 m (Road Width = 2 m)
3 m (Road Width = 4 m)
No Limit
-
-
SAW CUTS
+/- 2 m Depending on Road Width
CURB/ROAD
EDGE
300mm
300mm
1
m
1
m
