North T701 - SAFETY VALVE; REGULATION OF THE MINIMUM BURNING; INTERVENTIONS AND REPAIRS

2.6 SAFETY VALVE...........................................
The valve that regulates the influx of the gas is provided safety thermal that it
assures the block of influx of the gas in case of accidental turning off of the
flame.
2.7 REGULATION OF THE MINIMUM BURNING ....................................…....
The nozzle of the valve (bypass) has a hole of 0,50 mm and for the gas G30,
must be fully screwed.
In case of regulation for other gases G20 the bypass must be unscrewed (
turning the screw anti-clockwise until a clear and regular flame appears).

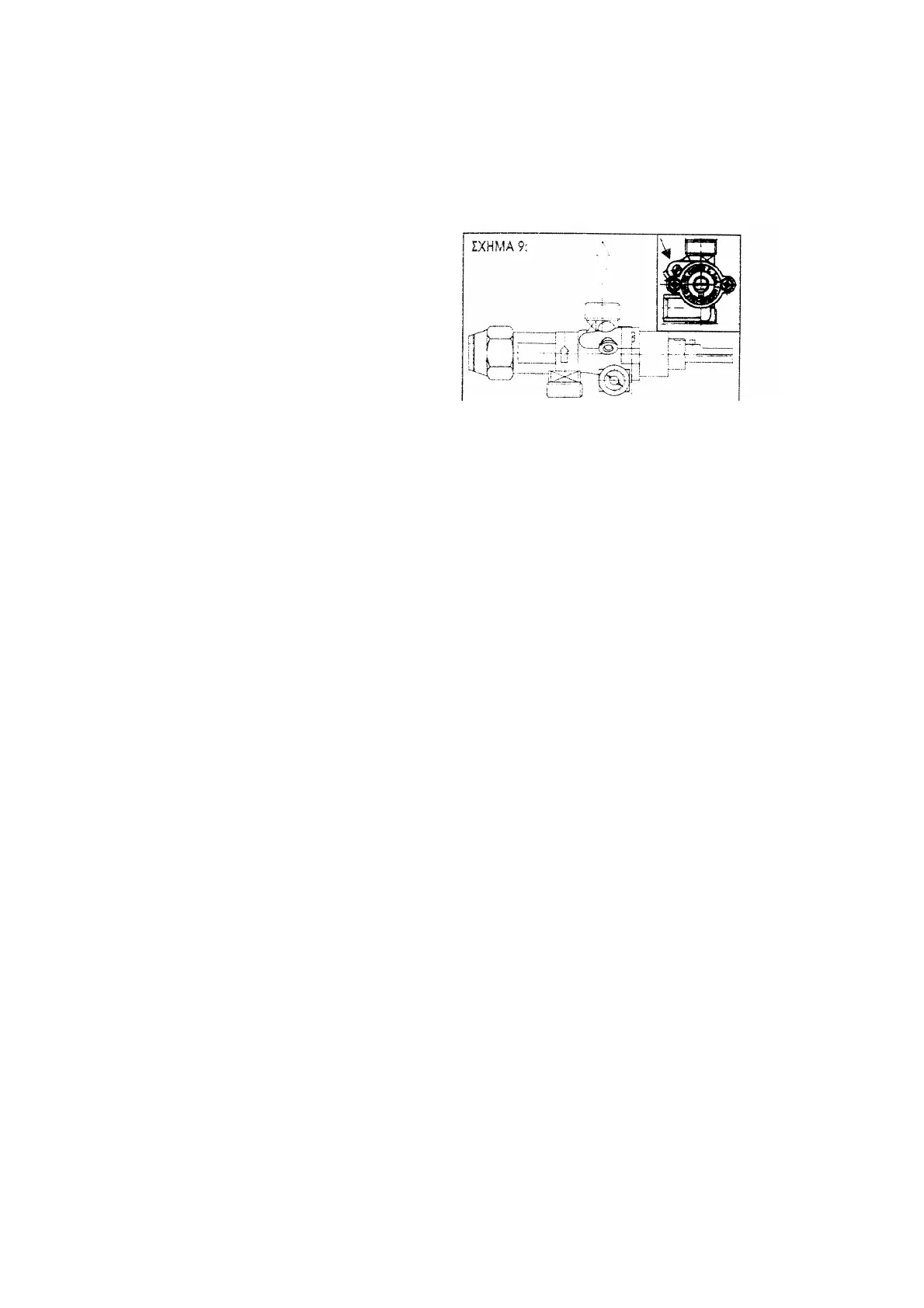

To regulate the bypass, turn on the burner to the minimum setting, remove
the handle grip of the valve and regulate the screw marked with arrow in the
adjacent figure, until a clear and regular flame appears.
The screw of the regulation must be fully screwed passing from the natural
to G.P.L. and open in the inverse case.
2.8 INTERVENTIONS AND REPAIRS........................................................…...
• In the case must be intervened on the valve all it takes is removing the
handle grip, and the frontal panel.
• For the substitution of the valve it is necessary to unscrew the connections
in the following order:
First the connection of the thermocouple, then the connection of the gas
outlet exit gas and, finally; the connection of entrance gas
• Replacing other parts, such as the thermocouple, candle of lighting, is
simple and intuitive after having removed the base wall.
