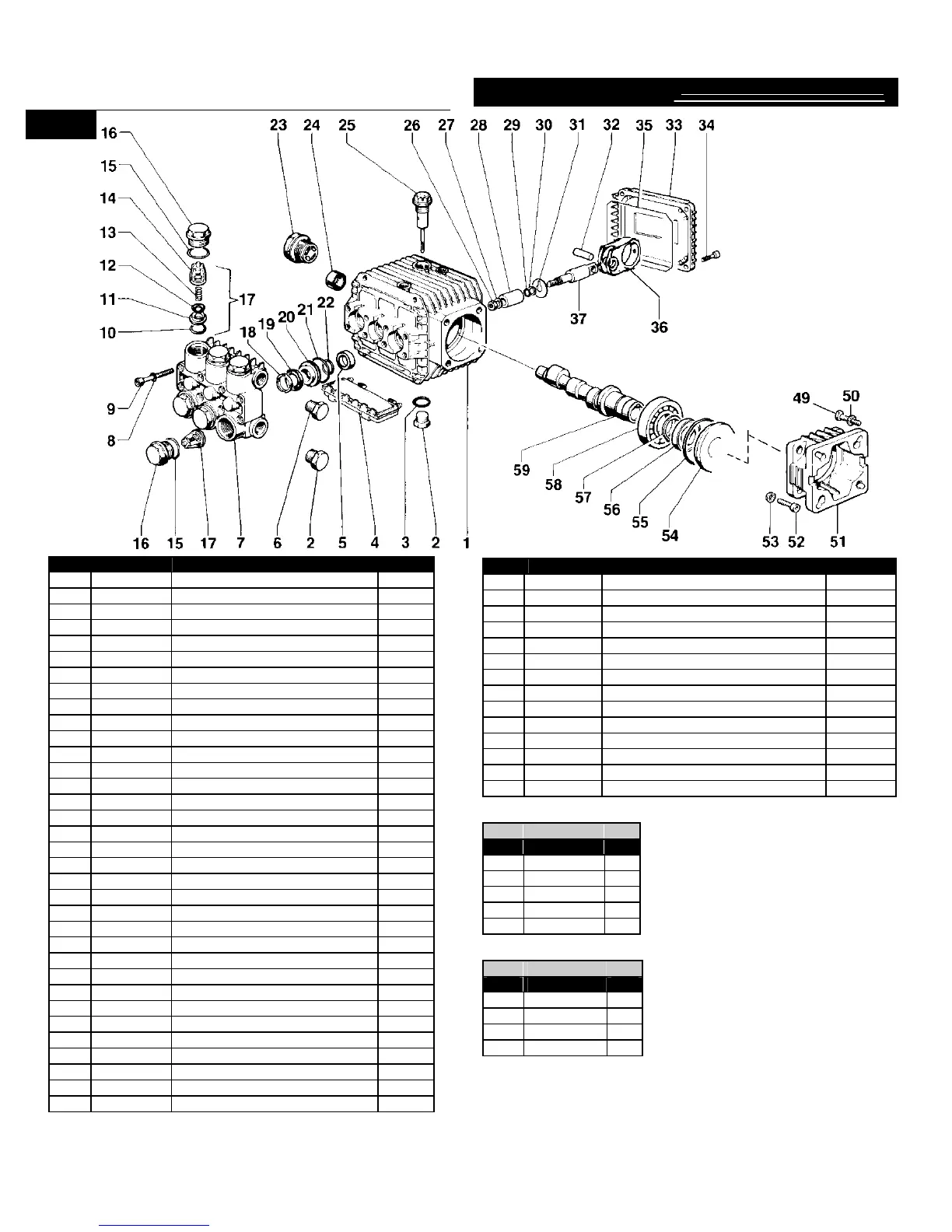

TP2530J34 − Triplex
GENERAL PUMP
A member of the Interpump Group
ITEM PART # DESCRIPTION QTY
1
51.0106.22 CRANKCASE 1
2
98.2100.00 PLUG, 3/8 1
3
90.3833.00 O-RING 1
4
51.2091.02 PROTECTOR 1
5
90.1565.00 OIL SEAL 3
6
98.2041.00 PLUG, 1/4 1
7
51.1200.41 MANIFOLD 1
8
96.6938.00 WASHER 8
9
99.1943.00 SCREW 8
10
90.3841.00 O-RING 6
11
36.2003.66 VALVE SEAT 6
12
36.2001.76 VALVE PLATE 6
13
94.7376.00 SPRING 6
14
36.2025.51 VALVE CAGE 6
15
90.3847.00 O-RING 6
16
98.2216.00 VALVE CAP 6
17
36.7115.01 VALVE ASSEMBLY 6
18
51.1000.51 HEAD RING 3
19
90.2620.00 PACKING 3
20
51.0800.70 PACKING RETAINER 3
21
90.3604.00 O-RING 3
22
90.3835.00 O-RING 3
23
97.5968.00 SIGHT GLASS 1
24
20.2128.35 NEEDLE BEARING 1
25
98.2103.00 OIL DIP STICK 1
26
92.2216.00 NUT 3
27
96.7008.00 WASHER 3
28
51.0400.09 PLUNGER, 15mm 3
29
90.3572.00 O-RING 3
30
90.5022.00 BACK UP RING 3
31
96.0707.00 FLINGER WASHER 3
32
97.0310.00 CONNECTING ROD PIN 3
33
51.1600.22 CRANKCASE COVER 1
34
99.1867.00 SCREW 4
ITEM PART # DESCRIPTION QTY
35
90.3917.00 COVER O-RING 1
36
51.0301.22 CONNECTING ROD 3
37
51.0500.56 PLUNGER ROD 3
49
99.2730.00 SCREW, J34 OPTION 4
50
96.7014.00 WASHER, J34 OPTION 4
51
10.0346.22 FLANGE, J34 OPTION 1
52
99.1867.00 SCREW 4
53
96.6938.00 WASHER 4
54
50.2115.51 SPACER 1
55
90.4097.00 O-RING 1
56
90.1644.00 OIL SEAL 1
57
90.0667.00 SNAP RING 1
58
20.2835.21 BEARING 1
59
51.0221.65 CRANKSHAFT 1
VALVE KIT
123
ITEM PART # QTY
10
90.3841.00 6
11
36.2003.66 6
12
36.2001.76 6
13
94.7376.00 6
14
36.2025.51 6
SEAL KIT
97
ITEM PART # QTY
18
51.1000.51 3
19
90.2620.00 3
21
90.3604.00 3
22
90.3835.00 3
