15
ENGINES
TO
PUMP
TO
PUMP
TO PUMP
157816 157819
157820157817
157818
00475

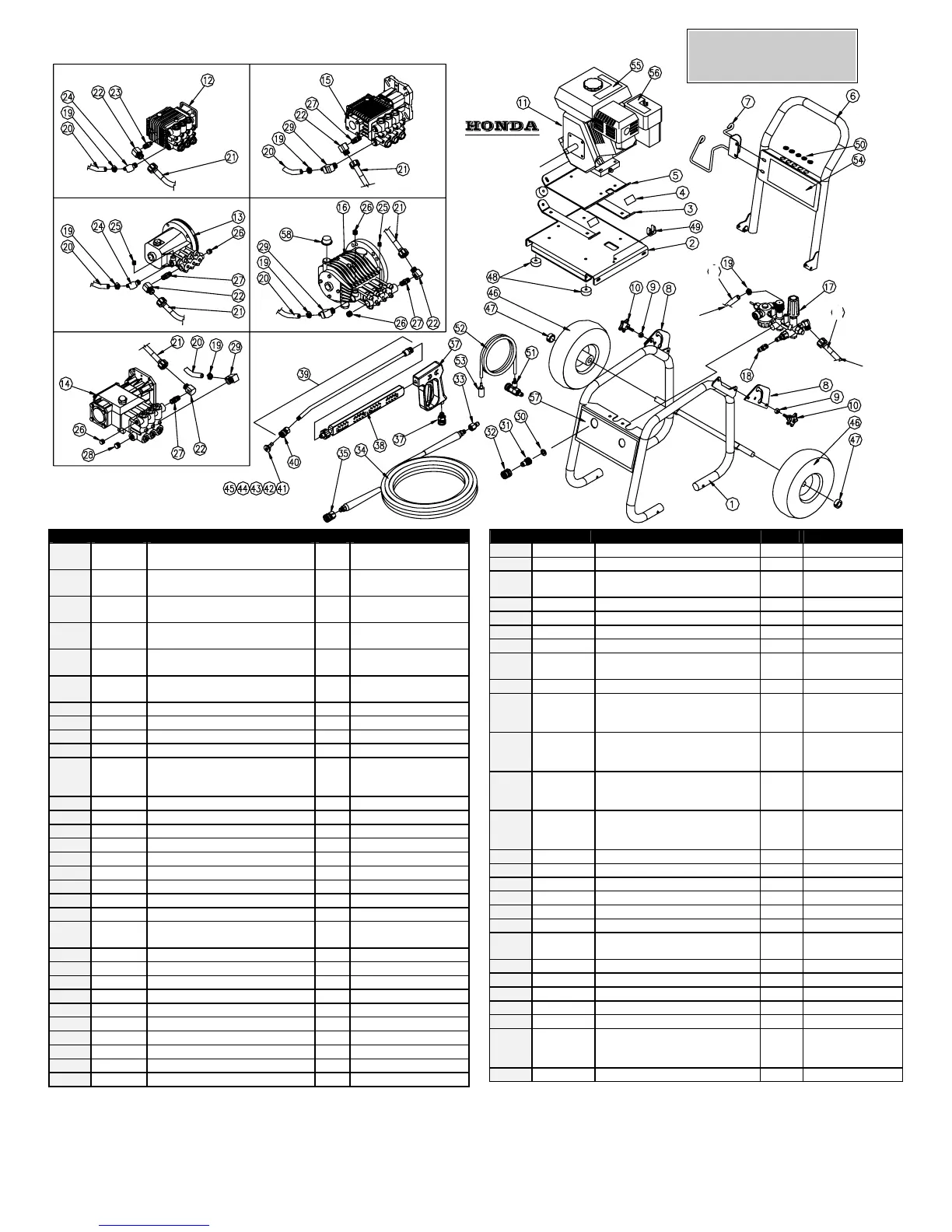

ITEM PART# DESCRIPTION QTY MODEL
1 34631 Roll Cage Weldment 1 157816, 17
34632 Roll Cage Weldment 1 157818, 19, 20
2 32454 Base 1 157816, 17
32523 Base 1 157818, 19, 20
3 32465 Lower Iso Bracket 2 157816, 17
31102 Lower Iso Bracket 2 157818, 19, 20
4 32567 Rubber Iso Mount 4 157816, 17
30825 Rubber Iso Mount 4 157818, 19, 20
5 32537 Upper Iso Base 1 157816, 17
308302 Upper Iso Base 1 157818, 19, 20
6 32459 Handle 1 157816, 17
32527 Handle 1 157818, 19, 20
7 32612 Hose Hook 1 all
8 32535 Hinge Ear 2 all
9 32738 Spacer 2 all
10 32463 Knob 2 all
606512 6.5hp Honda GX Engine 1 157816, 17
11 601090 11hp Honda GX Engine 1 157818
601091 13hp Honda GX Engine 1 157819, 20
12 32915 General Pump TP2530 1 157816
13 30956 Cat Pump 2SFX30GZ 1 157817
14 30239 Cat Pump 5DX40G1 1 157818
15 32739 General Pump EZ4040 1 157819
16 30377 Cat Pump 4SF40GS1 1 157820
17 34624 PCM 4000 1 all
18 313106 Q.C. nipple, male 3/8 npt 1 all
19 2263 Hose Clamp 2 all
20 2264 1/2” bypass hose 20” all
21 305417 High Pressure Hose 1 157816,17,18
34103 High Pressure Hose 1 157819,157820
22 32951 Fitting, 3/8npt x 22mm elbow 1 all
23 32952 Fitting, male 3/8 x 1/4 npt 1 157816
24 32972 Elbow, male 3/8 x 1/2 hose 1 157816, 17
25 2248 Plug, male 1/4 npt 1 157817
26 2249 Plug, male 3/8 npt 1 157817, 20 (2)
27 2296 Fitting, male 3/8 x 3/8 npt 1 157817,18,19,20
28 30511 Plug, male 1/2 npt 1 157818
29 32971 Elbow, male 1/2 x 1/2 hose 1 157818, 19, 20
30 5232 Rubber Gasket 1 all
31 30623 Inlet Quick Couple Nipple 1 all
ITEM PART # DESCRIPTION QTY MODEL
32 30624 Inlet Quick Coupler 1 all
33 313108 Coupler, 3/8 female npt 1 all
34 32084 50’ x 3/8” x 3000 PSI Hose 1 157816, 17, 18
32270 50’ x 3/8” x 4000 PSI Hose 1 157819, 20
35 313109 Q.C. Nipple, 3/8 female npt 1 all
36 313107 Coupler, 3/8 male npt 1 all
37 2227 Spray Gun 1 all
38 22622 Quick Split Lance 1 all
39 319300 18 1/2” Lance Extension 1 157816, 17, 18
32647 28” Lance Extension 1 157819, 20
40 2234 Nozzle Quick Coupler 1 all
25200 0° #3.5 Nozzle (red) 1 157816, 17
41 25302 0° #4.0 Nozzle (red) 1 157819, 20
253092 0° #4.5 Nozzle (red) 1 157818
25202 15° #3.5 Nozzle (yellow) 1 157816, 17
42 25309 15° #4.0 Nozzle (yellow) 1 157819, 20
253093 15° #4.5 Nozzle (yellow) 1 157818
252002 25° #3.5 Nozzle (green) 1 157816, 17
43 253091 25° #4.0 Nozzle (green) 1 157819, 20
253094 25° #4.5 Nozzle (green) 1 157818
252001 40° #3.5 Nozzle (white) 1 157816, 17
44 253024 40° #4.0 Nozzle (white) 1 157819, 20
253095 40° #4.5 Nozzle (white) 1 157818
45 253096 65° #40.0 Nozzle (black) 1 all
46 2278 Wheel/Tire Assembly 2 all
47 305200 Wheel Retainer 2 all
48 2215 Black Rubber Foot 2 all
49 52033 Large Gripper Clip 1 all
50 17156 Black Rubber Grommet 5 all
51 31934 Chemical Injector, 2.1mm 1 157816, 17
31935 Chemical Injector, 2.3mm 1 157818, 19, 20
52 33488 Braided Chem. Inj Hose 3 ft. all
53 2212 Chemical Strainer 1 all
54 34485 Handle Decal all
55 32542 Engine Decal 1 157816, 17
56 32585 Engine Decal 1 157818, 19, 20
34487 Frame Decal, 2000PPW 1 157816, 17
57 34486 Frame Decal, 3000PPW 1 157818
34488 Frame Decal, 3500PPW 1 157819, 20
58 35364 Yellow Rain Cap 1 157820
PPWE
Parts Breakdown
06/05
21
20
