NorthStar MPPWE - Assembly Instructions

5

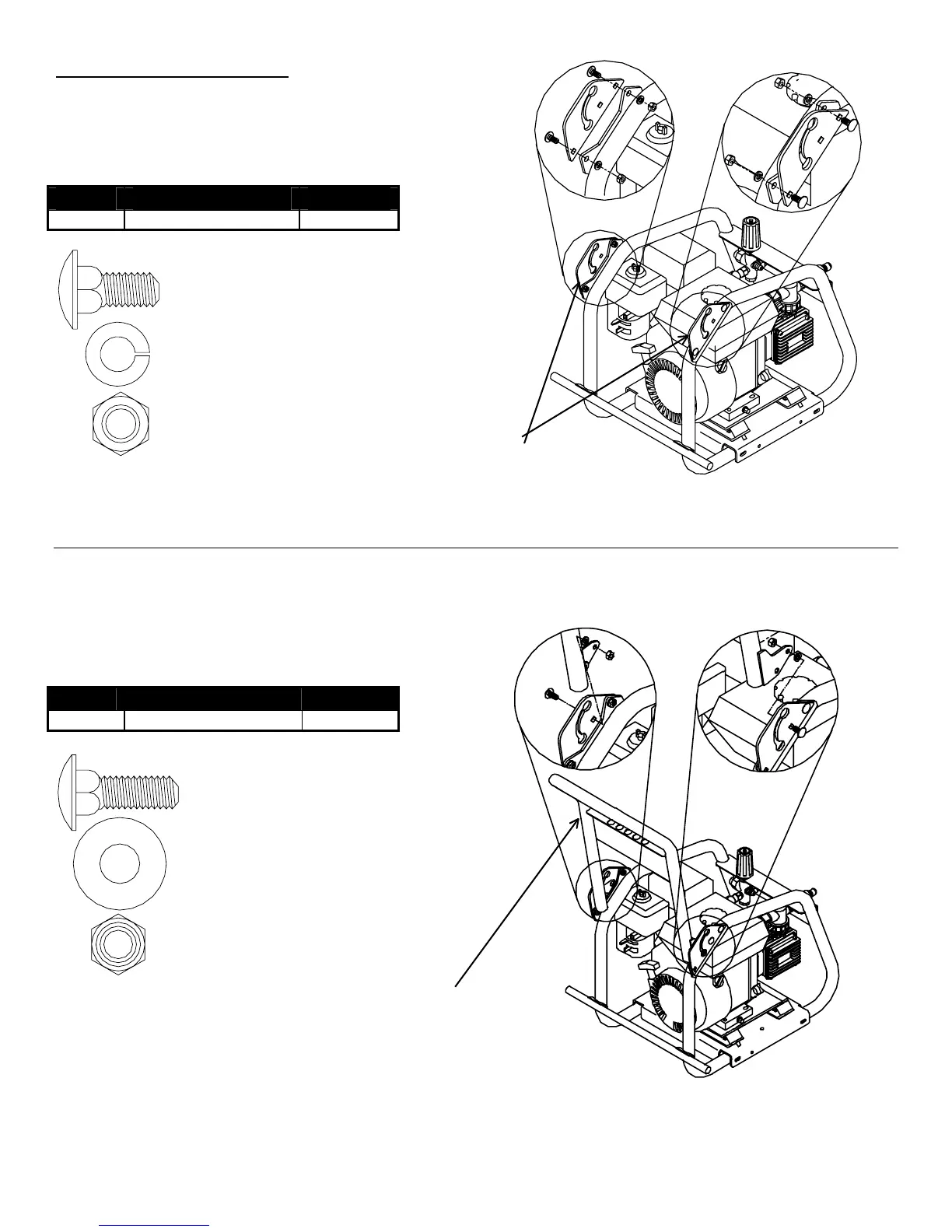

III.) Assembly Instructions
A. Assemble Hinge Ears to pressure washer with
carriage bolts, lock washers, and hex nuts. Thread nut
on to bolt hand tight.
Item # Description Qty.
32525 Hinge Ear 2
B. Attach Handle to Hinge Ears with carriage bolts, flat
washers and nyloc nuts. Tighten nyloc nuts then loosen
1/4 turn so handle hinges freely.
Item # Description Qty.
32459 Handle 1
5/16-18 x 3/4” Carriage Bolt
Qty. 4
5/16 Lock Washer
Qty. 4
5/16-18 Hex Nut
Qty. 4
Hinge Ea
r
00488
00489
00490
5/16-18 x 1” Carriage Bolt
Qty. 2
5/16 Flat Washer
Qty. 2
5/16-18 Nyloc Nut
Qty. 2
Handle
00491
