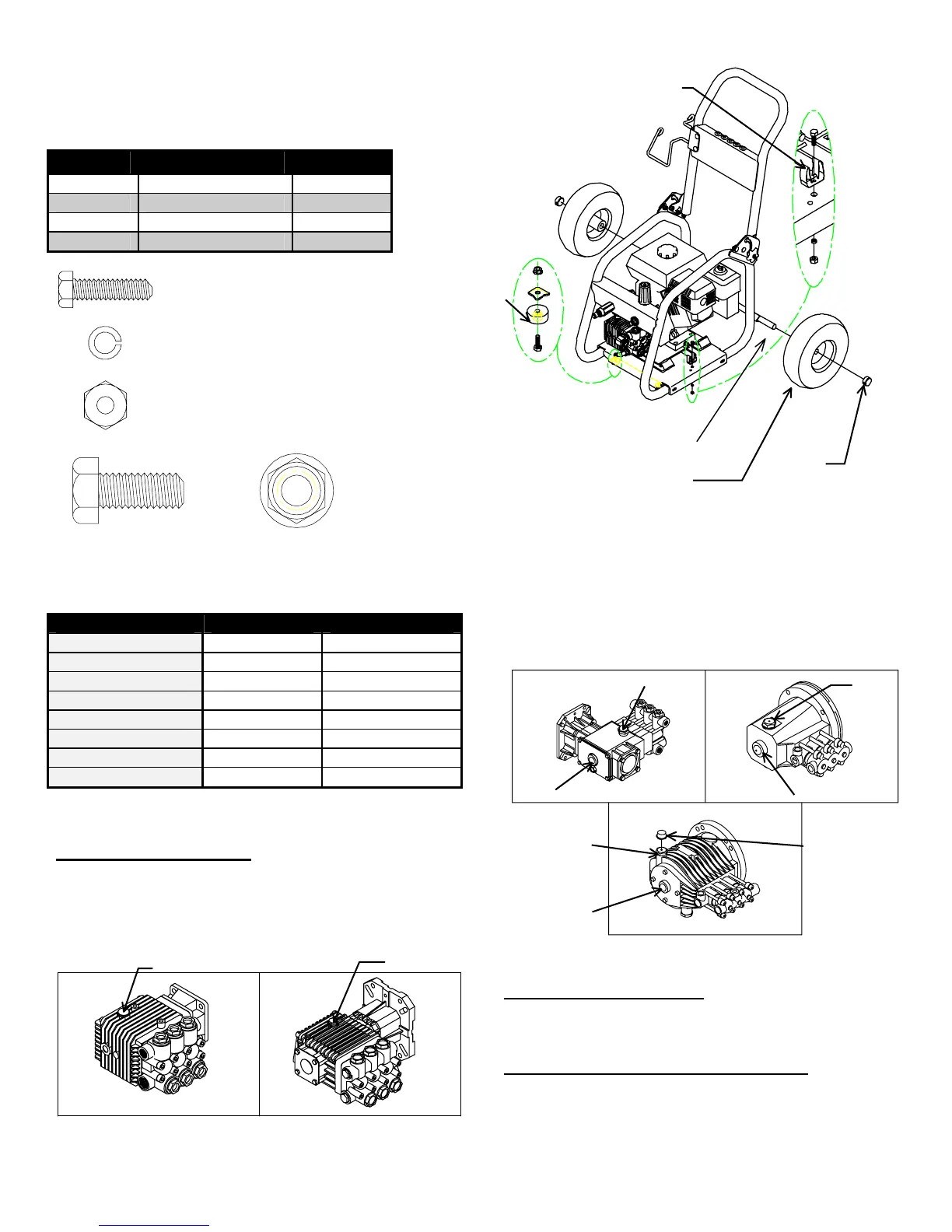

NorthStar MPPWE - Pump Preparation; Engine Preparation

7
E. Attach Gripper Clip to base with a bolt, lock washer
and hex nut. Remove plastic axle covers before
attaching Wheels to Base. Attach Wheels to Base with
Wheel Retainer using the 5/32” allen wrench in the
fastener bag.
Item # Description Qty.
2278 Wheel 2
305200 Wheel Retainer 2
52033 Gripper Clip 1
2215 Black Rubber Foot 2
Quantities Of Fluid
Engine/Pump Type of Fluid QTY
Honda GX 200 SAE 10W30 20.16oz (.59L)
Honda GX 340 SAE 10W30 37.12oz (1.1L)
Honda GX 390 SAE 10W30 37.12oz (1.1L)
General TP2530 SAE 30* 11.0oz (0.33L)
General EZ4040 SAE 30* 14.0oz (0.41L)
Cat 2SFX30GZ SAE 30** 11.83oz (0.35L)
Cat 5DX40G1 SAE 30** 22.65oz (0.67L)
Cat 4SF40G51 SAE 30** 23.66oz (0.7L)
*SAE Non-Detergent Oil (order Pump Oil Item# 4043)
**SAE Non-Detergent (order Cat Pump Oil Item# 22158)
IV.) Pump Preparation
*General Pumps Only
A.) Remove the shipping plug from the oil fill hole.
B.) Screw the vented dipstick into oil fill hole.
C.) Check oil level in the pump. Make sure it is between
the max/min marks on the vented dipstick.
TP2530 EZ4040
**Cat Pumps Only
A.) Remove shipping tape from oil fill cap
B.) Make sure the oil is 1/2 way up oil sight glass.
C.) Push yellow cap onto red oil fill cap(157820 Only).
4SF40G51
2SFX30GZ
5DX40G1
V.) Engine Preparation
A.) Fill engine with oil to the top of the engine oil fill neck.
B.) Fill fuel tank with unleaded gasoline, 86 octane min.
VI.) Chemical Injector Preparation
A.) Push clear hose onto chemical strainer.
B.) Push other end of clear hose onto chemical injector.
#10 x 3/4” Hex Bolt
Qty. 1
#10 Lock Washer
Qty. 1
#10 Hex Nut
Qty. 1
Gripper Clip
Wheel
Wheel
Retaine
r
00495
00446
Sight
Glass
Oil Fill
Oil Fill Hole
Sight Glass
Oil Fill
Oil Fill Hole
Sight Glass
Oil Fill Hole
Rubber Foot
5/16 x 3/4” Hex Bolt
Qty. 2
5/16 Flange Nut
Qty. 2
Remove axle covers
Yellow Rain Cap
*Operating
without cap
will void pump
warranty.
