4.3 Measuring Height Difference

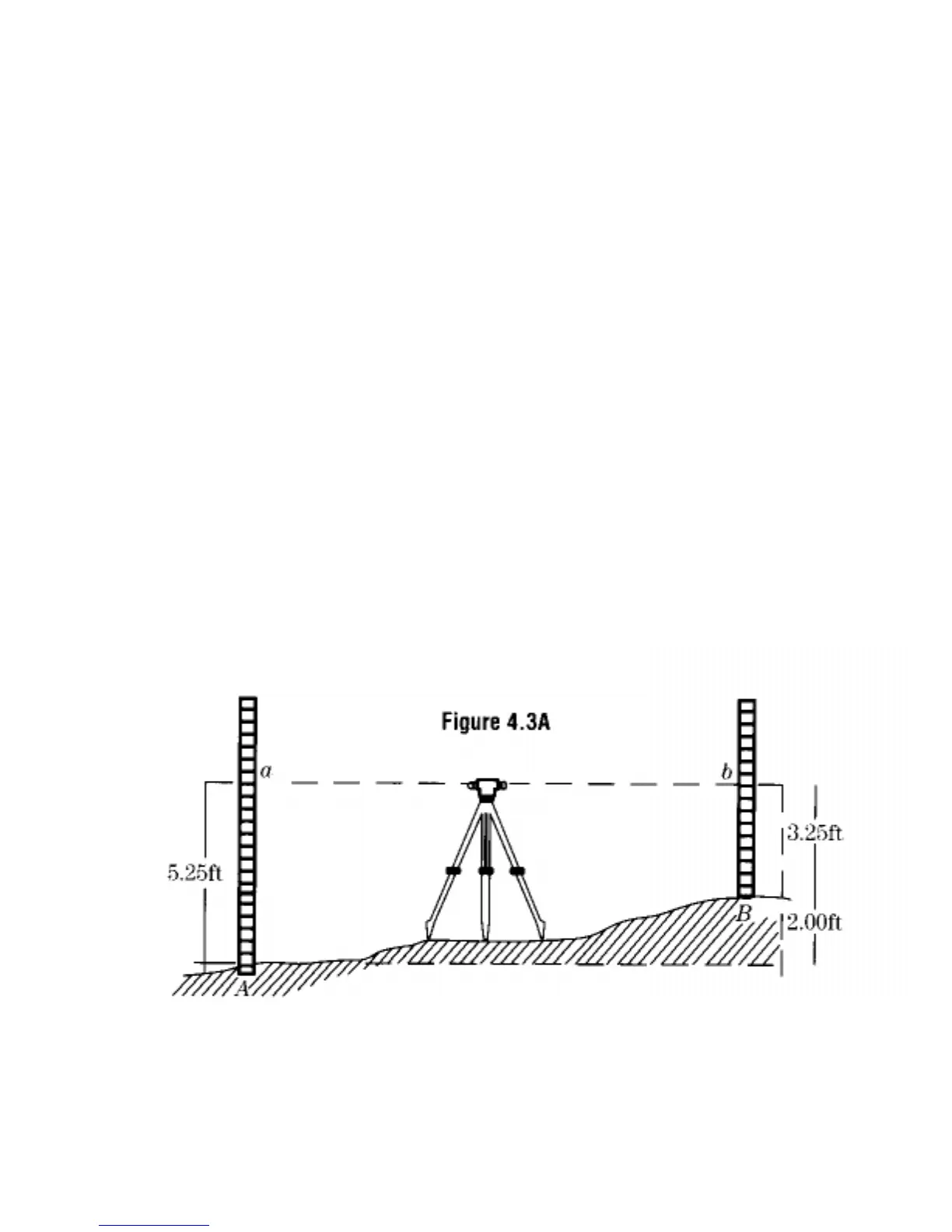

(1) Set up the instrument at a point approximately halfway between
points A and B. See (Fig 4.3A).
NOTE: The reticle stadia lines can be used to optically estimate
the distances. See (Fig 4.2A)
(2) Position the rod vertically at point A. Take the reading a (backsight)
on the rod at point A.
(3) Then sight the rod at point B and take the reading b (foresight).
(4) The difference (a-b) is the height difference (h) of B from A. (Fig 4.3A)
Example: h=a-b =5.25ft-3.25ft =2.00ft
Therefore point B is 2.00ft higher than point A. (the value of h will be
