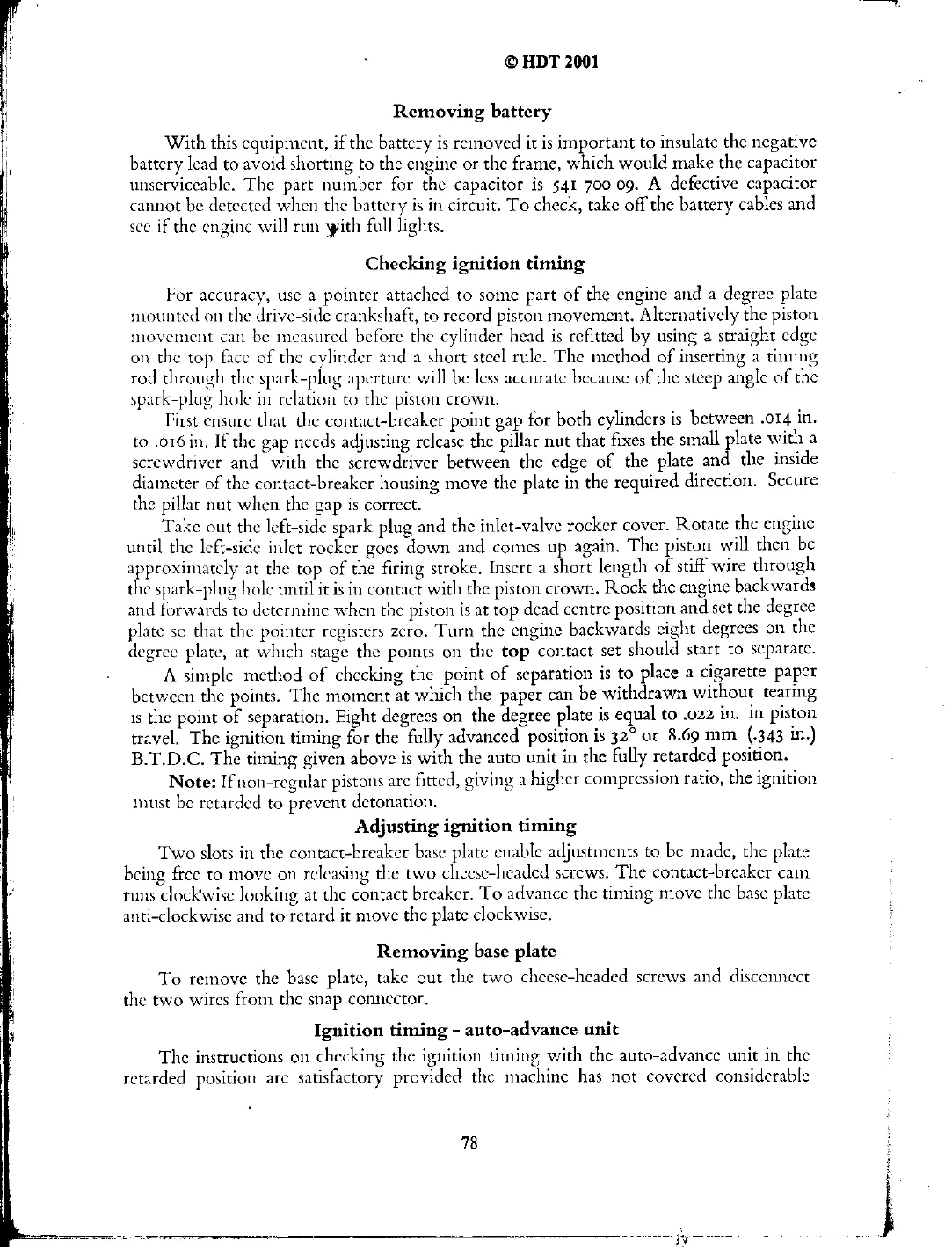

Norton 50 - Removing Battery; Checking and Adjusting Ignition Timing; Removing Base Plate; Ignition Timing - Auto-Advance Unit
