This document provides assembly instructions and information for a NOVA Outdoor Living Free Standing Pergola, SKU: NV029-503-FS, and associated Privacy Screens, SKU: NV029-100-AC-2.6-PS / NV029-100-AC-3.0-PS / NV029-100-AC-3.6-PS / NV029-100-AC-4.0-PS.

Function Description

The NOVA Free Standing Pergola is an outdoor structure designed to provide shade and a living space in your garden or patio. It features a louvered roof system that can be adjusted to control sunlight and airflow. The pergola is free-standing, meaning it does not require attachment to an existing structure. The optional privacy screens can be integrated to offer additional privacy and protection from elements.

Important Technical Specifications

Pergola Dimensions:

Overall length: 3956 mm (approx. 13 ft)
Overall width: 3041.5 mm (approx. 10 ft)
Height: 2508 mm (approx. 8.2 ft)
Internal length (between posts): 3676 mm (approx. 12 ft)
Internal width (between posts): 2761.5 mm (approx. 9 ft)
Post base dimensions: 170 mm x 170 mm (approx. 6.7 in x 6.7 in)
Distance from post edge to bolt holes: 100 mm and 140 mm (approx. 3.9 in and 5.5 in)

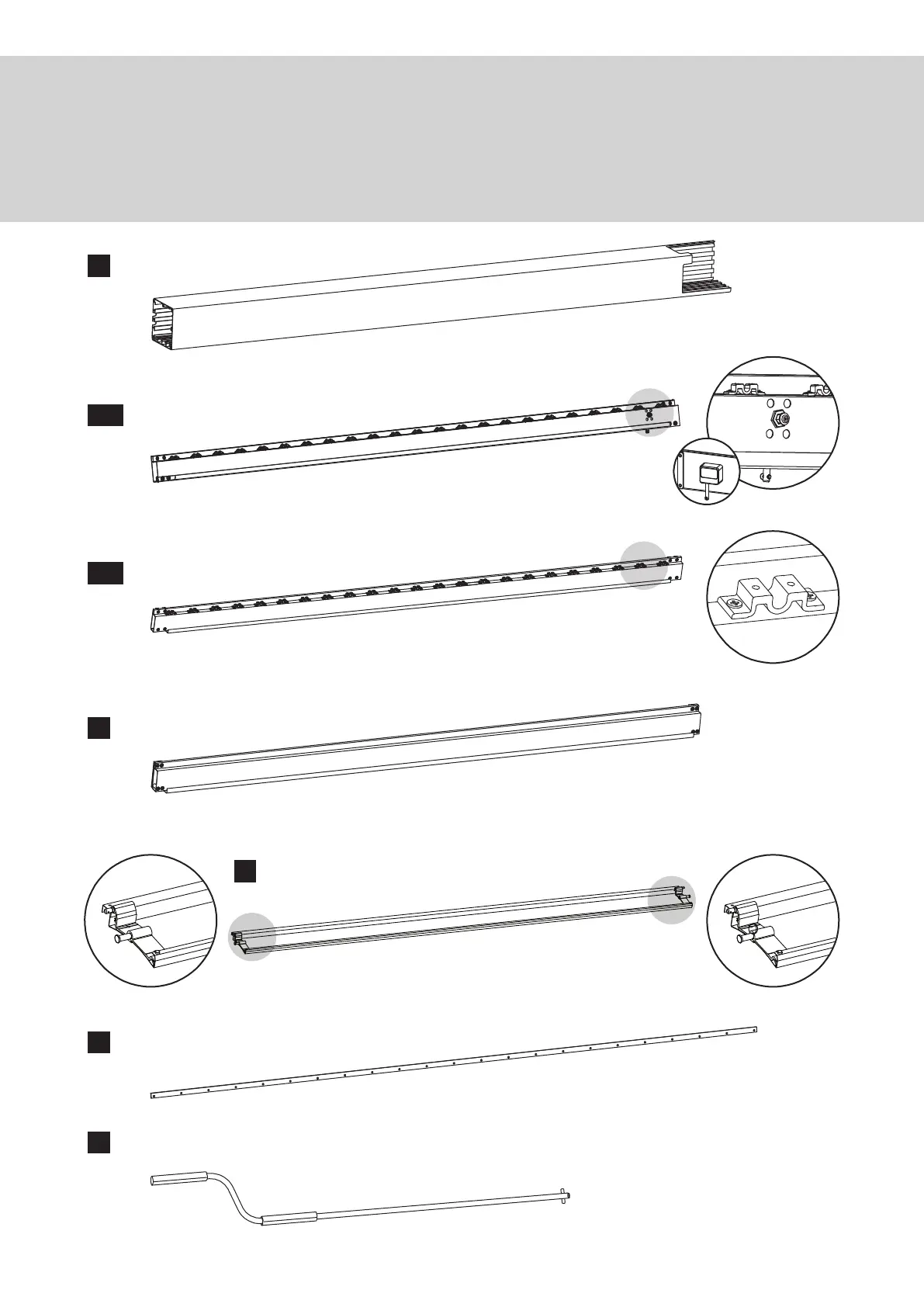

Pergola Parts List (Key components and quantities):

A: Main beams (4 pcs)
B1: Louver supports (1 pc)
B2: Louver supports (1 pc)
C: Louver supports (2 pcs)
D: Louver supports (25 pcs)
G: Handle (2 pcs)
H: Handle extension (1 pc)
I: Base plate (4 pcs)
J: Corner bracket (4 pcs)
K: Gearbox (50 pcs)
L: Gearbox arm (1 pc)
M: Louver end cap (52 pcs)
N: Post cap (4 pcs)
O: M5x12mm screw (26 pcs)
P: M5x12mm screw (105 pcs)
Q: 4.2x25mm screw (105 pcs)
R: 5.5x19mm screw (14 pcs)
S: 5.5x19mm screw (58 pcs)
V: Pin (1 pc)
W: Expansion bolt (16 pcs)
X: Allen key (1 pc)
Y: Allen key (2 pcs)
Z: Drill bit (1 pc)

Privacy Screen Parts List (Key components and quantities):

A: Screen Housing (1 pc)
B: Top Panel (1 pc)
C: Right Side Panel (1 pc)
D: Left Side Panel (1 pc)
E: Self Drilling Screw (20 pcs)
F: Bolt (4 pcs)
G: Allen Key (2 pcs)

Usage Features

Pergola Assembly:

The pergola requires assembly and is designed for a soft/flat surface.
It should not be assembled directly under trees or powerlines.
Assembly should not be attempted in windy or wet conditions.
The ground where the pergola is built should have at least a 1-2 degree decline to allow rainwater to drain away. If the pergola is built on a completely flat surface, rainwater will not drain away and the pergola will start leaking.
Tools required for assembly include: Safety Gloves, Knife, Hammer, Screw Driver, Pencil, SDS Drill or Hammer Drill, Tape Measure, Ladder, and Spirit Level.
The louvered roof can be adjusted using a handle to control sun exposure. The gearbox location can be positioned to suit the sun's rise and set, with a "TOP TIP" suggesting keeping the gearbox location as northerly as possible for optimum use.
The louvres can be opened or closed by operating the handle. To open the shutter, turn the handle until the louver is facing vertically.
The pergola needs to be anchored to the ground using expansion bolts (W) for concrete/steel ground or screws (R) for wood/grass ground. A drill bit (Z) is provided for ground drilling.

Privacy Screen Assembly:

The privacy screen is an optional addition to the pergola.
It attaches to the pergola legs and features a pull-down mechanism.
The screen housing (A) clips onto the top panel (B) and is secured with screws (F).
The right (C) and left (D) side panels are attached to the vertical pergola legs using self-drilling screws (E). The angled profile of the side panels needs to be aligned with the inner side of the pergola leg.
The screen itself slides into plastic guide rails of parts C and D.
The screen can be pulled down and lifted back up to adjust privacy.

Maintenance Features

Caring for your Pergola:

Debris Removal: Debris can build up inside the gutters of the pergola. Regularly clean the gutters to allow rainwater to flow through.
Object Placement: Never place any objects on top of the louvres.
Weather Conditions: During snowfall and heavy winds, open the louvres into the vertical position to prevent damage.
Operation in Frosty/Icy Conditions: Do not operate the roof mechanism during frosty and icy conditions.
Cleaning: To clean, simply use a soft cloth that is damp with warm soapy water and wipe down. This material can be left outside all year round.
Ground Stability: Regularly check that the Pergola is firmly fixed to the ground.
Fixings: Regularly check that all fixings are secured within the Pergola.

Aluminium Care:

The aluminium framework is designed for continual outdoor use and is low maintenance.
It is resistant to UV rays, salt water, frost, and snow.
Basic care involves cleaning with a soft cloth dampened with warm soapy water and wiping down.
The material can be left outside all year round.

Warranty Information:

Nova Outdoor Living offers a 5-year limited extended warranty on aluminium furniture products from manufacturing faults/defects.
This warranty applies to residential domestic use within the UK only.
It does not cover commercial use, misuse, accidental damage, or normal wear and tear.
Nova Outdoor Living reserves the right to repair and/or replace parts rather than a complete item at their discretion.
To validate your warranty, register at warranty.novaoutdoorliving.co.uk and quote the product code.

Safety Advice (General for both Pergola and Privacy Screen):

Read the manual before starting assembly.
Check all parts from the parts list. Do not throw away any packaging until you are confident that you have all parts.
Assemble the product on a soft/flat surface.
Keep any plastic bags, tools, and fittings away from children and pets.
After prolonged use, check all fittings are tightened securely.
Do not modify the product, use other tools, or substitute parts. This will void your warranty.
Heavy parts are within the package. Ensure you lift with the correct posture & technique. Get help moving and/or lifting if necessary.
Do not leave tools unattended during the assembly process.
Only use this product for its intended purpose within a residential environment. Failure to do so will void your warranty.
Nova Outdoor Living holds no responsibility for any damages caused due to normal wear and tear, incorrect assembly, misuse and/or negligence.
Nova Outdoor Living reserves the right to make changes for product improvements.
Please recycle packaging where possible.
