Nova Titan III

Titan – Disassembly
NOTE: This process is demonstrated with the Titan III chuck. Follow these instructions
for previous Titan chucks.
Tools Required:
1. External Circlip Pliers
2. 3mm Allen Key
3. Small Flat Head Screw Driver
4. Disposable Rag

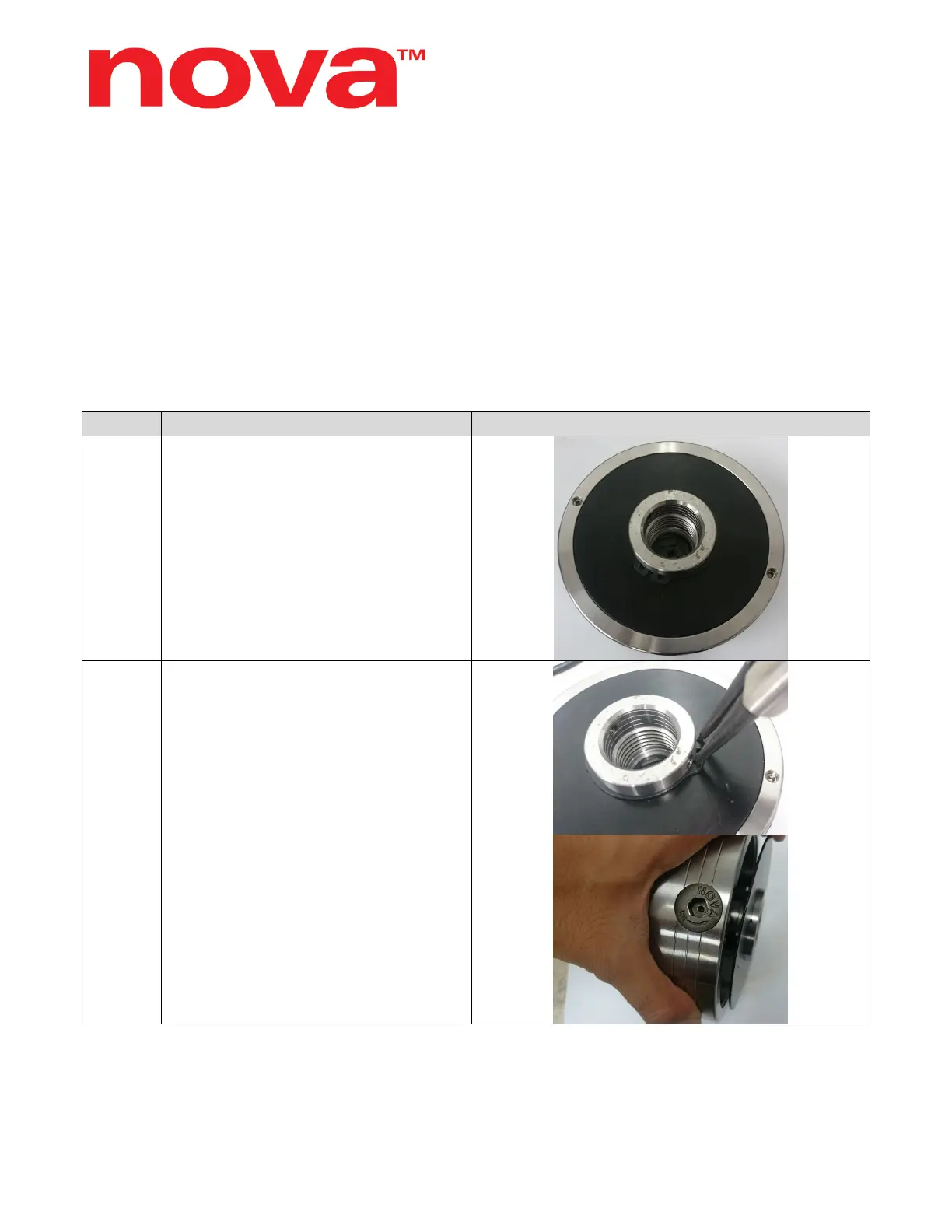

STEPS DESCRIPTION IMAGE
1.
Place the chuck face down. The jaw
slides can be at any position.
2.
Use the external snap ring plier to
remove the retaining ring (as
pictured).
Remove the backing plate. This will
pop out after circlip is removed.
Continues to next page…
p.19
