Titan – Disassembly
STEPS DESCRIPTION IMAGE

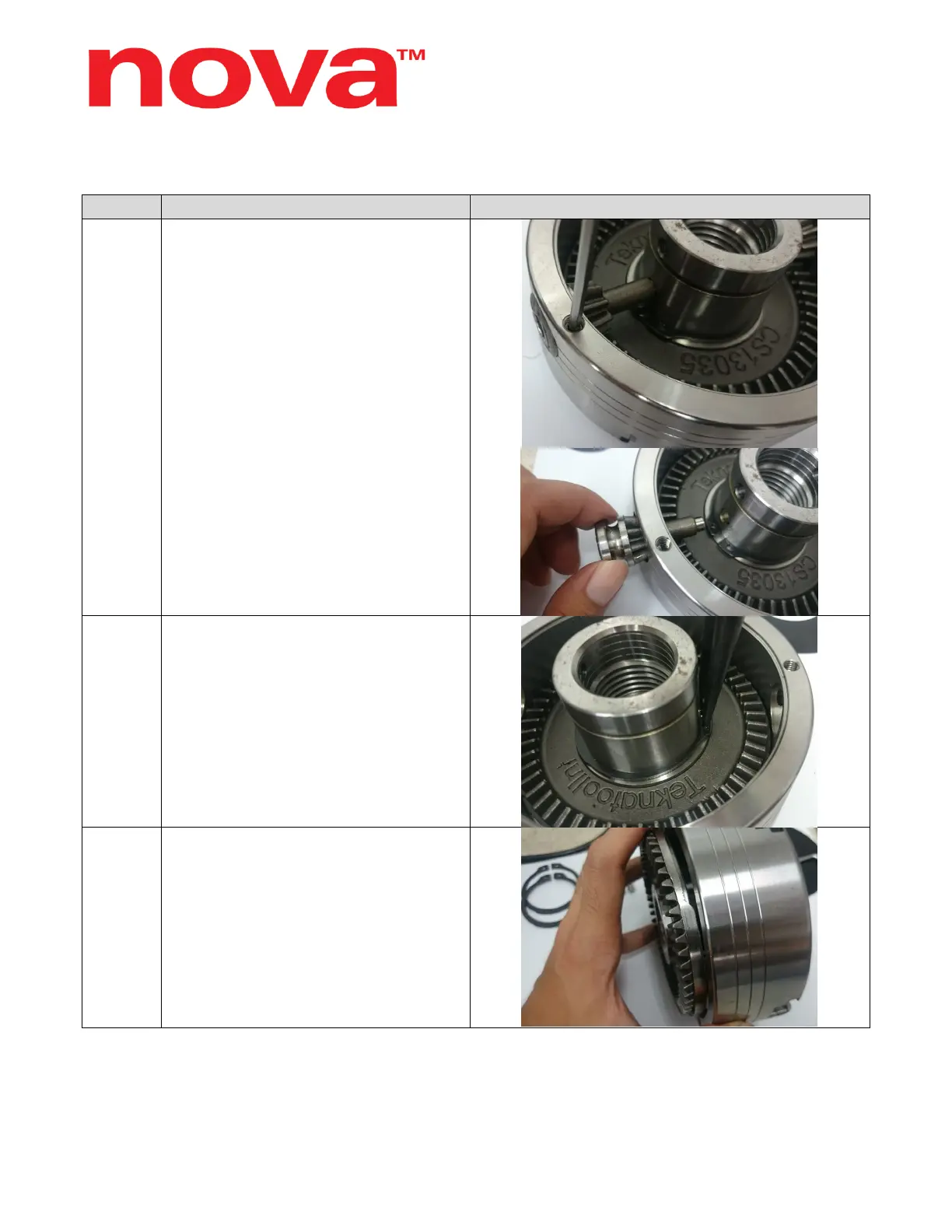

3.
Remove the threaded pins (that are
holding the pinion gears in place) with
a 3mm Allen key.
There will be two of these pins in total
- one for each pinion gear.
Remove pinion gears by pushing out
of the chuck body.
4.
There will be another retaining circlip
holding the scroll ring in position.
Using the external circlip pliers,
remove this circlip.
5.
Remove the scroll ring out from the
chuck body. This should slide out but
if it’s stuck in the chuck body, you may
need to use a bit of force to the chuck.
Continues to next page…
