Titan – Disassembly continued
STEPS DESCRIPTION IMAGE

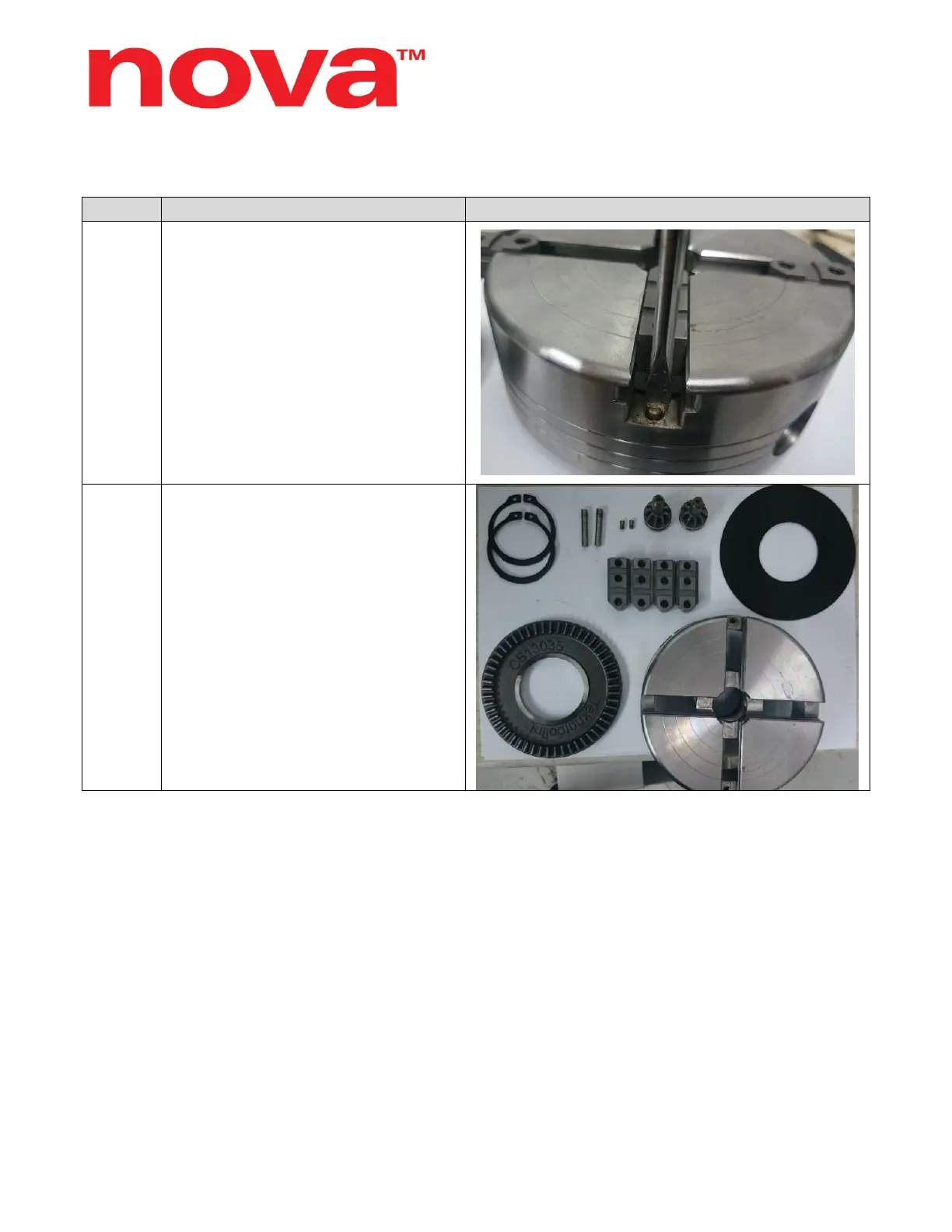

6.
On two of the slideways there will be
a stop screw which prevents the jaw
slides from disengaging with the
scroll ring during use. Remove these
stop screws using a small flat head
screw driver.
Then the jaw slides will be free to
slide out of the chuck body.
7.
Make sure you have all parts:
1. Chuck Body
2. Backing plate
3. Scroll Ring
4. 2 Retaining ring (EC48)
5. 2 Retaining Pins
6. 2 Position Screws
7. 2 Pinion Gears
8. Jaw Slides #1-4
p.21
