Titan – Reassembly continued

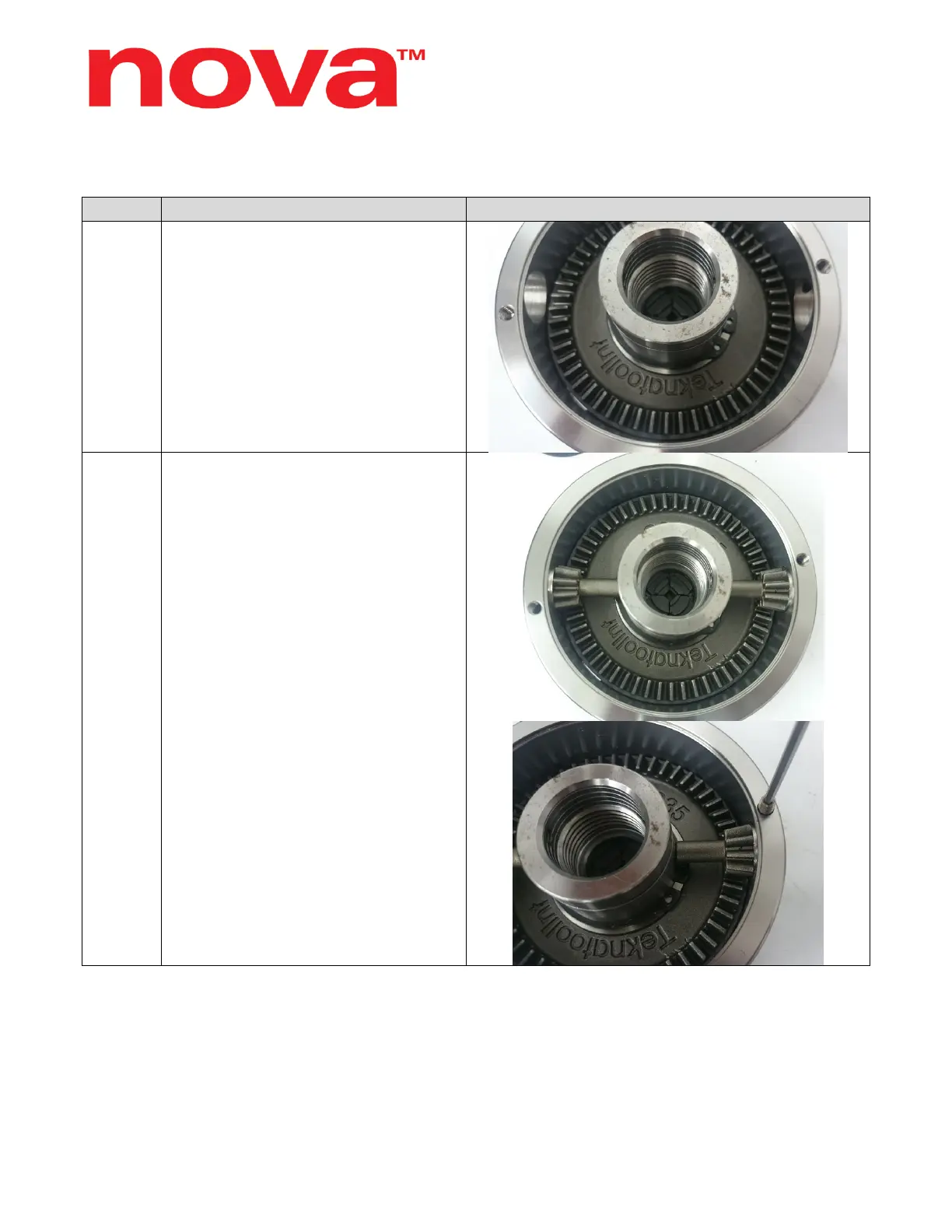

STEPS DESCRIPTION IMAGE
5.
Put the circlip back into the groove to
hold the scroll ring into place.
Apply a generous amount of lubricant
on the geared side of the scroll ring.
6.
Reinstall the pinion gear back into the
chuck body and insert the threaded
pin back in to hold its position.
Continues to next page…
