Titan – Reassembly continued
STEPS DESCRIPTION IMAGE
7.

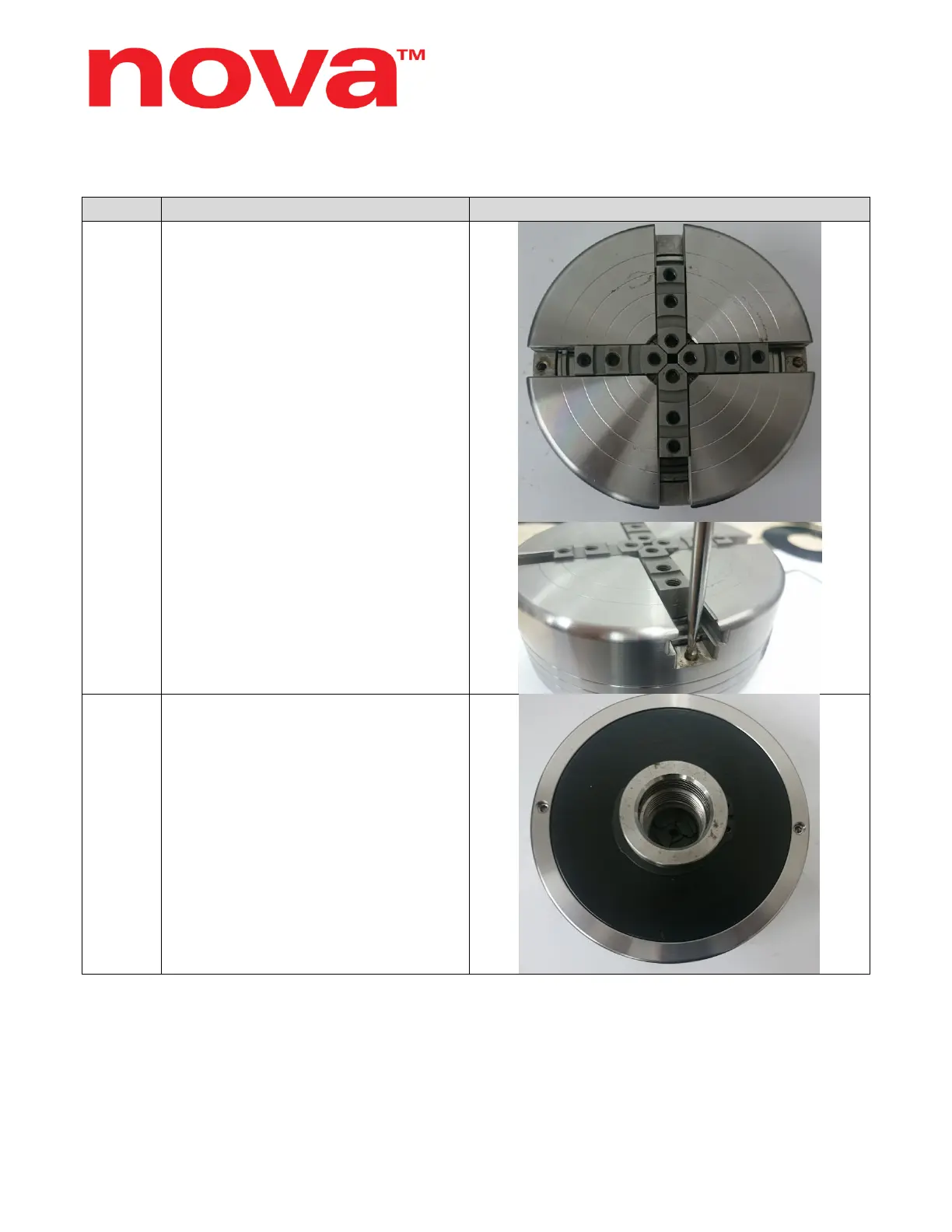

Rotate the scroll ring with the chuck
key to check whether the jaw slides
correctly match up at the centre.
If the jaw slides match up correctly at
the centre, screw the position pins
back on.
8.
Install the backing plate onto the
chuck and put the retaining circlip
back on to finish.
p.25
