TIMER TM-619
NOVUS AUTOMATION 2/2

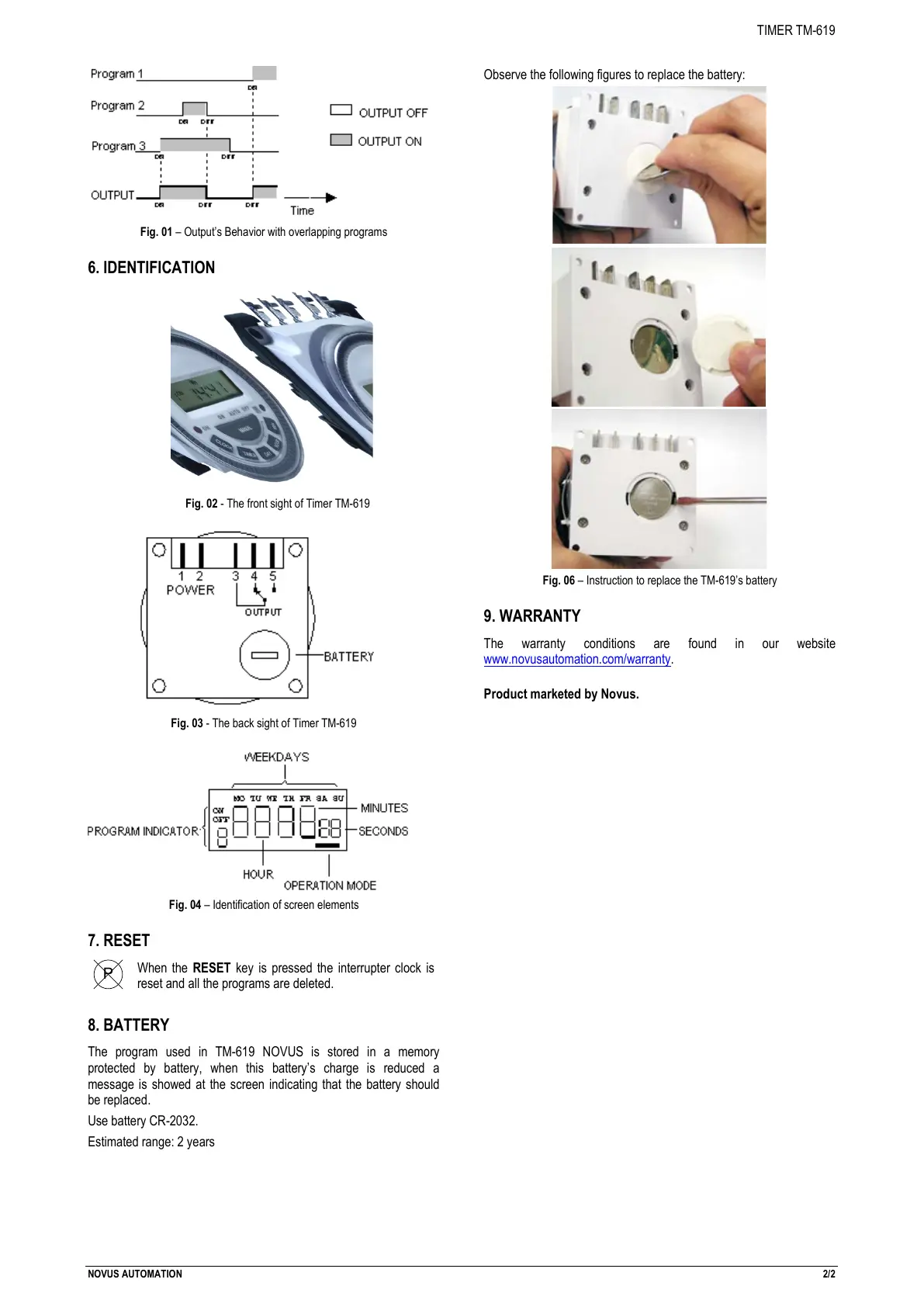

Fig. 01 – Output’s Behavior with overlapping programs
6. IDENTIFICATION
Fig. 02 - The front sight of Timer TM-619
Fig. 03 - The back sight of Timer TM-619
Fig. 04 – Identification of screen elements
7. RESET
P
When the RESET key is pressed the interrupter clock is
reset and all the programs are deleted.
8. BATTERY
The program used in TM-619 NOVUS is stored in a memory
protected by battery, when this battery’s charge is reduced a
message is showed at the screen indicating that the battery should
be replaced.
Use battery CR-2032.
Estimated range: 2 years
Observe the following figures to replace the battery:
Fig. 06 – Instruction to replace the TM-619’s battery
9. WARRANTY
The warranty conditions are found in our website
www.novusautomation.com/warranty
.
Product marketed by Novus.
