4.3. Image Fusion
The technology is used to adjust the fusion position Of visible light and infrared light,
switch the display mode to dual light fusion mode, and aim the thermal imager at the heat
source to be adjusted at the same time; then press to select settings option, press
to select image fusion option.
Image zooming is used to adjust the magnification of visible light, so as to be consistent
with the size Of infrared image. Adjust the cursor up and down to select image zooming.
P
press
key, the interface will disappear, and the red font value will appear in the
middle and lower position. Then press key to adjust until the size of infrared
image Object is the same as that Of visible light image object. Press to confirm and
return.
Left and right adjustment is used to set the left and right cursors of visible light and
infrared; up and down adjustment is used to set the up and down coordinates of visible
light and infrared. The adjustment method is the same as above.
4.4. Alarm setting
The first line in the upper left corner of the screen represents the maximum temperature
of the whole picture, and the second line represents the minimum temperature of the
whole picture;
In the alarm setting menu, the high temperature value means that if the temperature of
the whole picture exceeds this value, it will alarm (the high temperature value will turn
red); the low temperature value means that if the temperature of the whole picture is
lower than this value, it will alarm (the low temperature value will turn red); after
adjusting these two values, turn on the alarm switch.
4.5. Video
When no setting interface is entered, long press the trigger key until 30s appears in the
middle and lower position Of the screen, release the trigger key and start recording; the
default recording time is 30 seconds, and a prompt box will appear after the recording is
finished; the confirm key means save, and the power key means cancel; If you want to
end the video recording in advance, just short press the trigger key again
Your excellent helper in cable test!

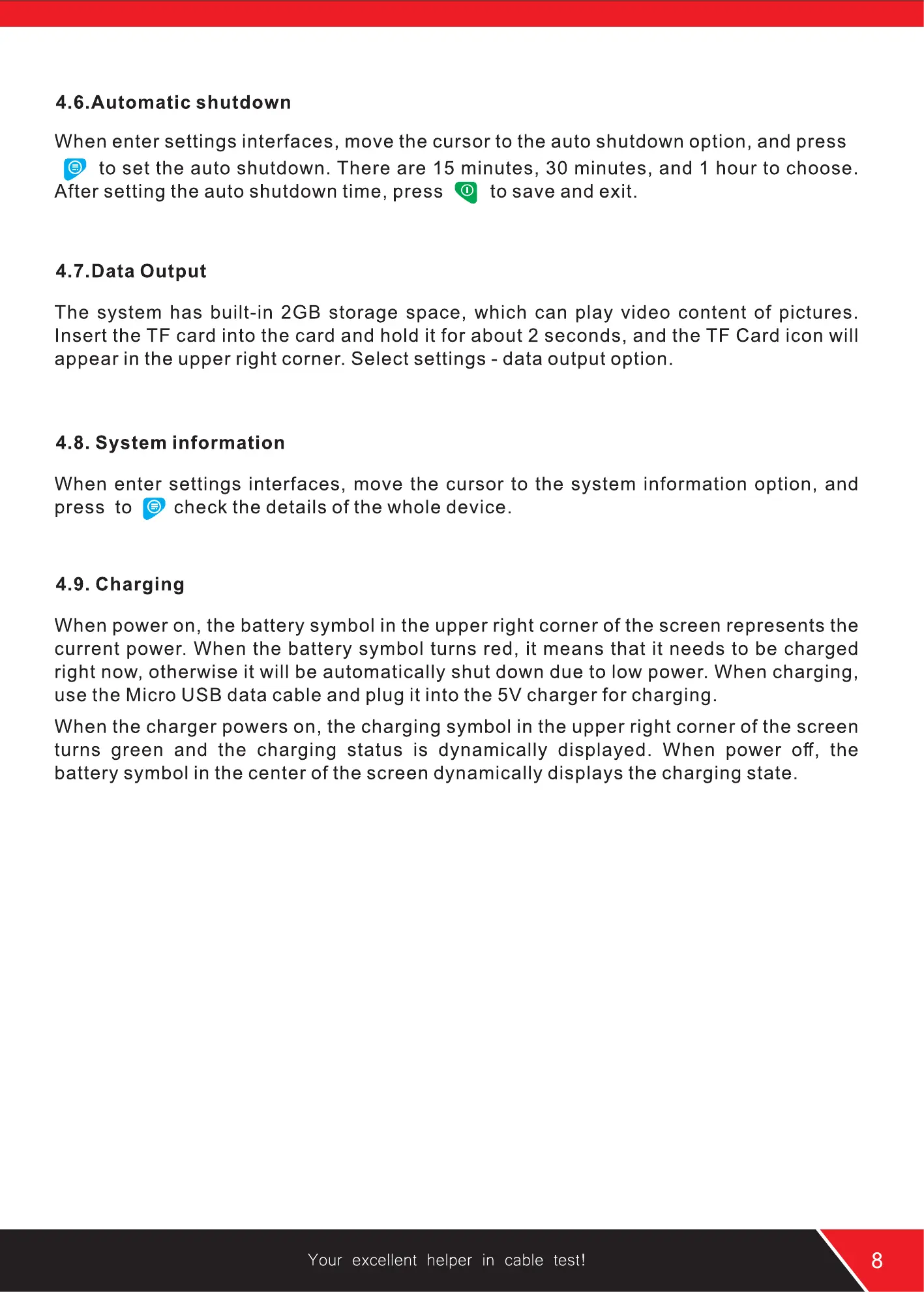

4.6.Automatic shutdown
When enter settings interfaces, move the cursor to the auto shutdown option, and press
P
to set the auto shutdown. There are 15 minutes, 30 minutes, and 1 hour to choose.
After setting the auto shutdown time, press to save and exit.
4.7.Data Output
The system has built-in 2GB storage space, which can play video content of pictures.
Insert the TF card into the card and hold it for about 2 seconds, and the TF Card icon will
appear in the upper right corner. Select settings - data output option.
4.8. System information
When enter settings interfaces, move the cursor to the system information option, and
press to
check the details of the whole device.
4.9. Charging
When power on, the battery symbol in the upper right corner Of the screen represents the
current power. When the battery symbol turns red, it means that it needs to be charged
right now, otherwise it will be automatically shut down due to low power. When charging,
use the Micro USB data cable and plug it into the 5V charger for charging.
When the charger powers on, the charging symbol in the upper right corner of the screen
turns green and the charging status is dynamically displayed. When power off, the
battery symbol in the center Of the screen dynamically displays the charging state.
