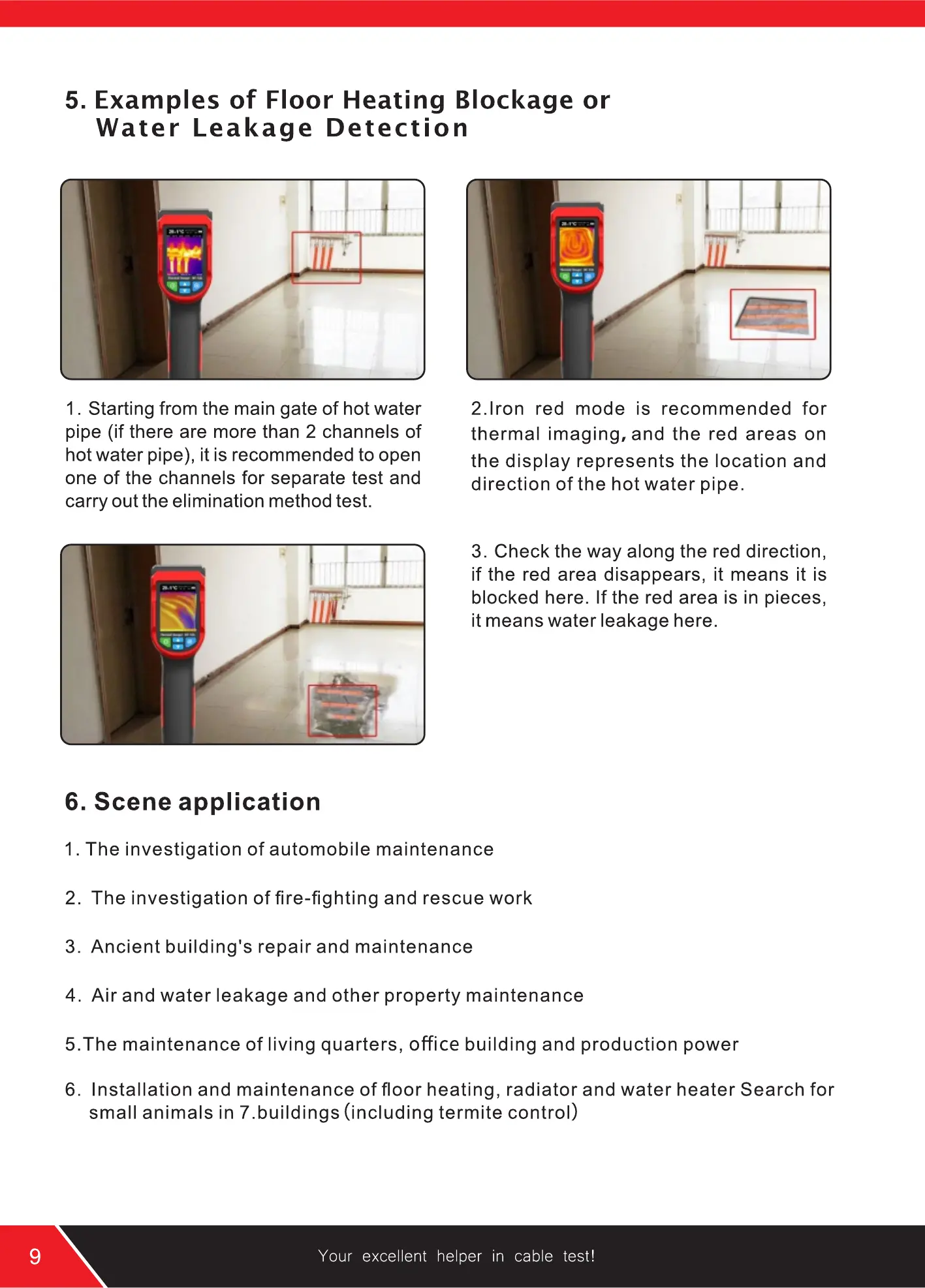

5. Examples of Floor Heating Blockage or
Water Leakage Detection
7 .Technical indexes
Thermal imagin technique
Starting from the main gate of hot water
pipe (if there are more than 2 channels of
hot water pipe), it is recommended to open
one of the channels for separate test and
carry out the elimination method test.
6. Scene application
2.1ron red mode is recommended for
thermal imaging, and the red areas on
the display represents the location and
direction Of the hot water pipe.
3. Check the way along the red direction,
if the red area disappears, it means it is
blocked here. If the red area is in pieces,
it means water leakage here.
Language
Thermal imaging resolution
Electronic shutter
Visible light camera
Display resolution
Color palettes
Infrared spectral bandwidth
IFOV
Thermal imaging sensitivity
Frame rate
Image format
Chinese / English
32*32 (1024 pixels)
No
2 megapixels
Thermal imaging, thermal mixing, digital camera
Iron red / rainbow / black & white
8—14pm
330 horizontal
18 mrad
150mk
<9Hz
BMP
Infrared temperature measurement
Temperature measurement range -20—400 oc
1. The investigation Of automobile maintenance
2. The investigation of fire-fighting and rescue work
3. Ancient building's repair and maintenance
4. Air and water leakage and other property maintenance
5.The maintenance Ofliving quarters, office building and production power
6. Installation and maintenance of floor heating, radiator and water heater Search for
small animals in 7 buildings (including termite control)
Your excellent helper in cable test!
Basic accuracy
Emissivity
Measuring resolution
Response time
Spectral band
OOCto 4006C Accuracy: ±1.80/0 or ±1.80C,
-20 to -0.9 C Accuracy: C, Test
conditions, emissivity: 0.95
Ambient temperature: 25±2 oc
adjustable O.1—0.99
0.10C OF
150ms
8—14um
Your excellent helper in cable test!
10
