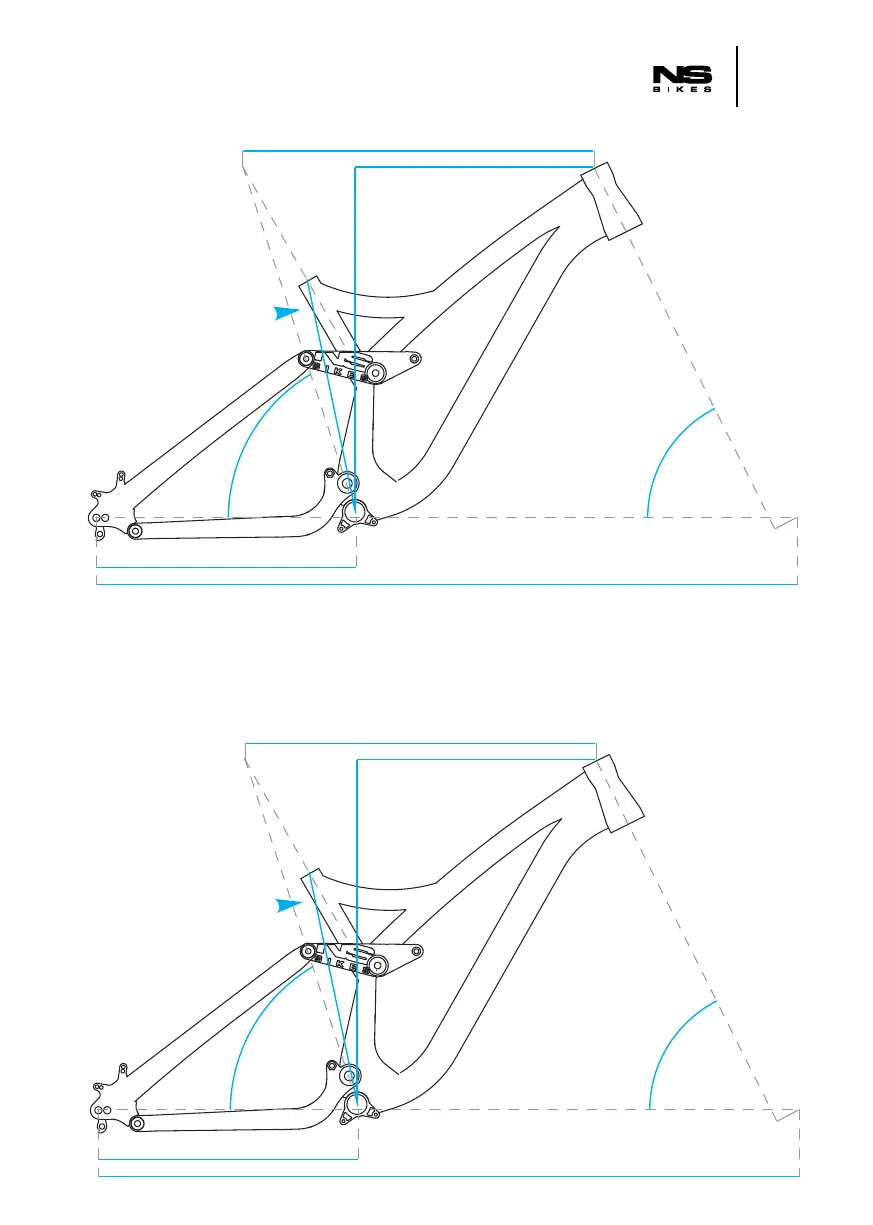

NS BIKES FUZZ - Frame Geometry Measurements; Metric Geometry Data; Imperial Geometry Data

GEOMETRY METRIC
based on fork
travel 200mm
GEOMETRY IMPERIAL
based on fork
travel 200mm
7
REACH
S: 405mm/M: 440mm/L: 470mm
SEAT TUBE
S: 400mm/M: 400mm/L: 410mm
CHAIN STAYS
CHAIN STAYS
432-447mm
EFFECTIVE ANGLE
73°
HEAD TUBE ANGLE
63.5°
WHEEL BASE
S: 1191mm-1206mm / M: 1226mm-1241mm / L: 1256mm -1271mm
BB HEIGHT
-2mm
STACK 605mm
EFFECTIVE TOP TUBE
S: 590mm/M: 625mm/L: 655mm
SEAT TUBE
REACH
S: 15.9” / M: 17.3” / L: 18.5”
SEAT TUBE
S: 16" / M: 16" / L: 16.1"
17"-17.6"
SEAT TUBE
EFFECTIVE ANGLE
73°
HEAD TUBE ANGLE
63.5°
WHEEL BASE
S: 46.9”-47.5” / M: 48.3”-48.9” / L: 49.4”- 50”
BB HEIGHT
-0.1”
STACK 23.8”
EFFECTIVE TOP TUBE
S: 23.2" / M: 24.6" / L:25.8"
REACH
S: 405mm/M: 440mm/L: 470mm
SEAT TUBE
S: 400mm/M: 400mm/L: 410mm
CHAIN STAYS
CHAIN STAYS
432-447mm
EFFECTIVE ANGLE
73°
HEAD TUBE ANGLE
63.5°
WHEEL BASE
S: 1191mm-1206mm / M: 1226mm-1241mm / L: 1256mm -1271mm
BB HEIGHT
-2mm
STACK 605mm
EFFECTIVE TOP TUBE
S: 590mm/M: 625mm/L: 655mm
SEAT TUBE
REACH
S: 15.9” / M: 17.3” / L: 18.5”
SEAT TUBE
S: 16" / M: 16" / L: 16.1"
17"-17.6"
SEAT TUBE
EFFECTIVE ANGLE
73°
HEAD TUBE ANGLE
63.5°
WHEEL BASE
S: 46.9”-47.5” / M: 48.3”-48.9” / L: 49.4”- 50”
BB HEIGHT
-0.1”
STACK 23.8”
EFFECTIVE TOP TUBE
S: 23.2" / M: 24.6" / L:25.8"
FUZZ
