Using External Timers (ES-T1 Timer and/or Win-20 Timer)
THE ES-T1 AND WIN-20 STYLE TIMERS ARE COMPATIBLE WITH YOUR LUMINA CONTROL, HOWEVER, THE LUMINA WILL NOT INDICATE THAT THESE EXTERNAL TIMERS
ARE ACTIVE (I.E. IT WILL CONTINUE TO DISPLAY PRESENT MODE OF OPERATION ONLY). YOU CAN CHANGE THE DESIRED MODE OF OPERATION DURING A TIMER CYCLE;
IT WILL COMMENCE AFTER THE TIMER CYCLE HAS EXPIRED.
Maintenance Indicator/Resetting Maintenance Clock
YOUR LUMINA CONTROL HAS A MAINTENANCE RUN CLOCK (IT ONLY COUNTS TIME WHEN THE VENTILATOR IS TURNED ON). FACTORY
DEFAULT FOR THE MAINTENANCE CLOCK IS 3 MONTHS, AT WHICH TIME A WRENCH ICON WILL APPEAR IN THE UPPER RIGHT OF THE LCD
SCREEN AND A YELLOW LED TURN ON BELOW THE SCREEN. THIS INDICATES THAT IT IS TIME TO CHECK YOUR VENTILATOR TO SEE IF IT
NEEDS CLEANING AND IF YOUR FILTERS NEED TO BE CLEANED OR REPLACED. PRESS AND HOLD THE POWER BUTTON FOR 5 SECONDS TO
RESET THE MAINTENANCE CLOCK. NAV-561B (2017-) units feature a RED LED which will light after 3 months if the initial service
reminder is not turned off.
Using the High Speed Timer

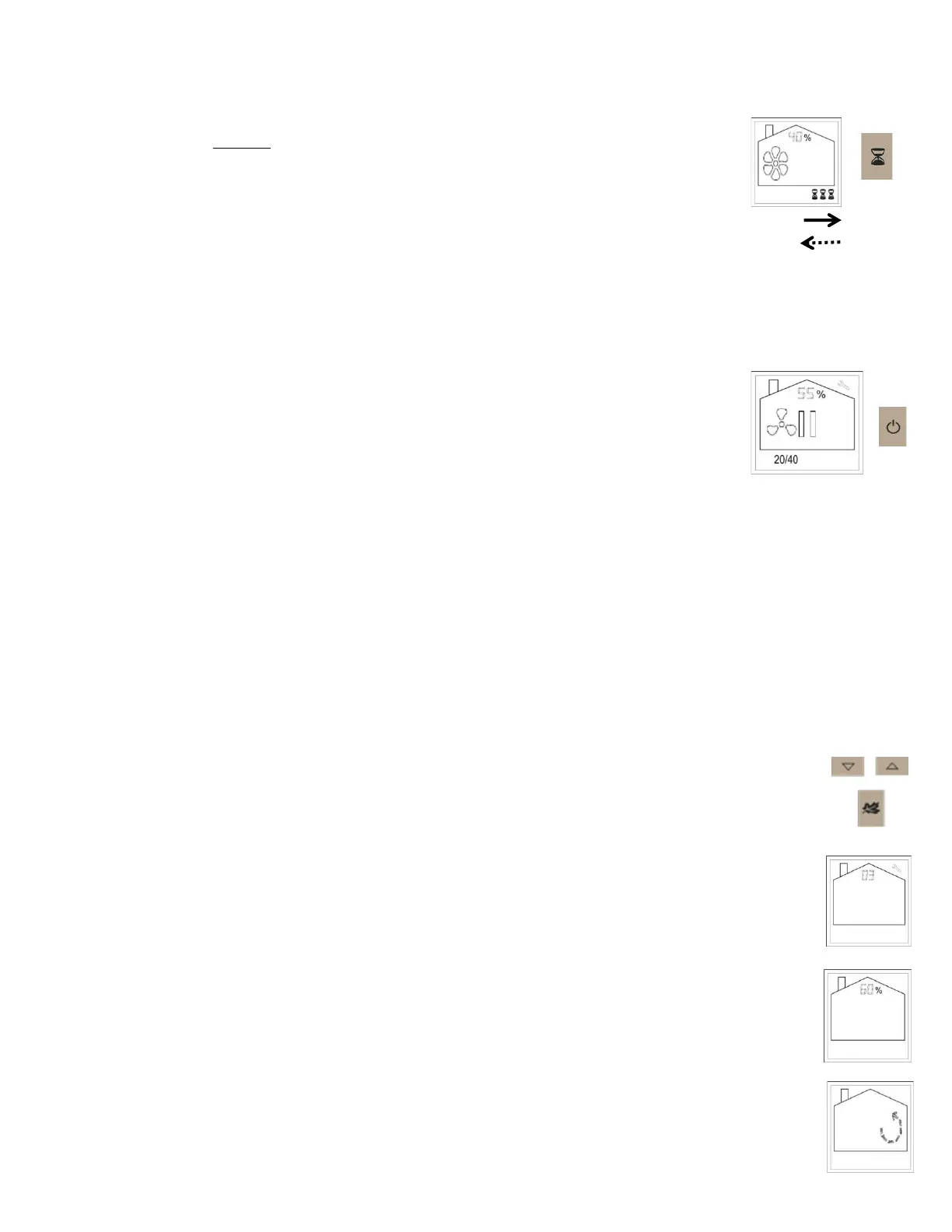

FOR TIMED HIGH SPEED OPERATION, PRESS THE HOURGLASS BUTTON ONCE FOR 20 MINUTES, TWICE FOR 40 MINUTES, OR THREE
TIMES FOR 60 MINUTES. AFTER 3 SECONDS THE HIGH SPEED CYCLE WILL BEGIN. AS EACH 20 MINUTE CYCLE EXPIRES, ONE HOURGLASS
ICON WILL DISAPPEAR FROM RIGHT TO LEFT. YOU CAN TURN OFF THE TIMER CYCLE BY PRESSING THE HOUR GLASS BUTTON UNTIL ALL
THE HOURGLASS ICONS DISAPPEAR.
YOU CAN STILL VIEW OR CHANGE OPERATION MODES DURING TIMER FUNCTION IF DESIRED. CHOSEN MODE WILL
RESUME/COMMENCE AFTER THE TIMER FUNCTION STARTS.
Operation Following a Power Interruption
IF THE ELECTRICAL SERVICE TO THE VENTILATOR IS INTERRUPTED, THE MODE OF OPERATION ACTIVE IN THE WALL CONTROL AT THE TIME OF THE INTERRUPTION WILL
RESUME WHEN THE ELECTRICAL SERVICE TO THE VENTILATOR RESUMES. ANY CUSTOM SETTINGS WILL HAVE BEEN SAVED.
TO OPEN CUSTOM SETTINGS MENU, SIMULTANEOUSLY PRESS AND HOLD THE UP AND DOWN ARROW BUTTONS FOR 15 SECONDS (THE BACKLIGHT
TURNS ON AFTER 10 SECONDS). USE THE ARROW BUTTONS TO NAVIGATE CHOICES FOR EACH SETTING. PRESS THE MODE BUTTON TO PRESERVE
FACTORY SETTINGS, INITIATE ANY CHANGE, AND MOVE TO THE NEXT MENU ITEM. AFTER 5 SECONDS OF NO BUTTON ACTIVITY, CURRENT SETTINGS
WILL BE WRITTEN AND THE CONTROL WILL RESUME REGULAR OPERATION.
THE NAV-561 ALLOWS ADJUSTMENTS TO CUSTOMIZE ITS USE. THESE CHANGES CAN BE DONE/UNDONE AN INFINITE NUMBER OF TIMES. IT IS RECOMMENDED THAT
ONLY A QUALIFIED TECHNICIAN MAKES THESE ADJUSTMENTS AS THEY CAN AFFECT THE NATURE OF THE VENTILATOR’S PERFORMANCE. THE CUSTOMIZABLE FEATURES
WILL APPEAR IN SEQUENCE AND INCLUDE:
1. ADJUSTING THE RUN TIME OF THE MAINTENANCE CLOCK
2. CALIBRATING THE HUMIDITY SENSOR
3. TURNING OFF/ON RECIRCULATION FUNCTIONS.
Adjustment Setting 2: Calibrating the Humidity Sensor
IF CALIBRATION IS NOT DESIRED, SIMPLY PRESS THE MODE BUTTON. IF CALIBRATION IS DESIRED, USE THE UP AND DOWN ARROW KEYS TO
CALIBRATE THE HUMIDITY SENSOR IN 5% INCREMENTS. TO PROGRAM ANY CHANGES, PRESS THE MODE BUTTON. MENU ADVANCES TO
Adjustment Setting 3: Turn OFF/ON Recirculation Functions (default is ON)
AN ANIMATED RECIRCULATING ARROW INDICATES THAT RECIRCULATION IS ENABLED. USE THE UP AND DOWN ARROW KEYS TO TURN OFF
RECIRCULATION (STATIC ARROW) OR ON (ANIMATED ARROW). TO PROGRAM ANY CHANGES, PRESS THE MODE BUTTON. CUSTOM MENU CLOSES.
NOTE: IF RECIRCULATION IS NOT TURNED OFF FOR VENTILATORS NOT EQUIPPED FOR RECIRCULATION, THE VENTILATOR WOULD OPERATE IN LOW
SPEED WHEN RECIRCULATION MODE IS SELECTED.
Adjustment Setting 1: Run Time Maintenance Clock
MAINTENANCE CLOCK FACTORY SETTING: 3 MONTHS. TO KEEP FACTORY SETTING, PRESS THE MODE BUTTON OR USE THE UP AND DOWN ARROW
BUTTONS TO CHANGE 1-12 MONTHS. ONCE ANY DESIRED CHANGE IS MADE (IF ANY), PRESS THE MODE BUTTON. MENU ADVANCES TO HUMIDITY
