MEGAWATT BIKE GUIDE 2022 | 1 7
Adjusting stem Height
The stem height can be made higher or lower to suit rider preference. The headset spacers can
be placed below or above the stem. Do not add too many additional spacers under the stem, as
both stem bolts must be clamping fork steerer. If you are unsure on this process, please consult
with your authorised Nukeproof dealer to complete the work.

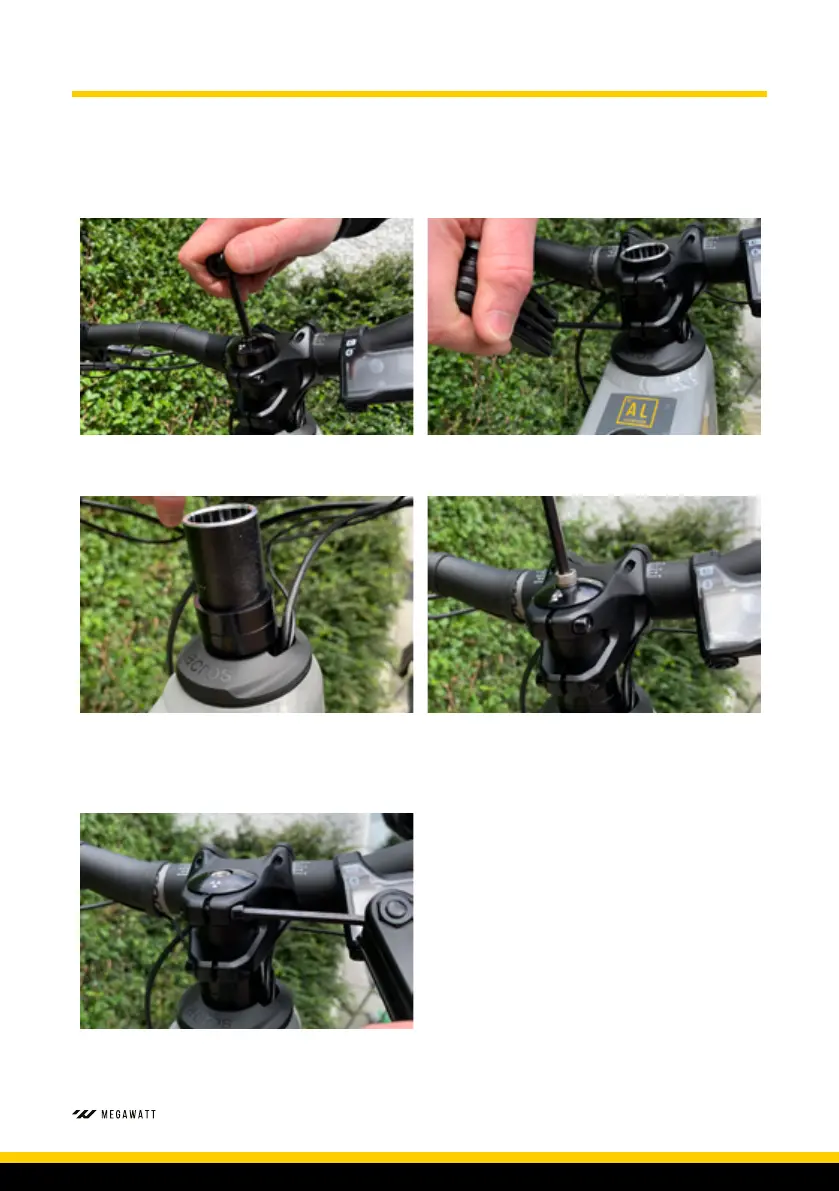

1. Loosen and remove top cap bolt and cover
with a 5mm Allen Key.
2. Loosen both stem steerer clamp bolts with a
4mm Allen Key
3. Remove stem and place spacers to your
preference, in this example two below the
stem to raise height. Both spacers can be
placed above the stem to lower height as well.
4. Install stem to steerer, replace top cap and
bolt and tighten with 5mm Allen Key. If steering
becomes stiff, top cap bolt is overtightened.
5. Straighten stem and retighten stem steerer
clamp bolts with a 4mm Allen key.
