MEGAWATT BIKE GUIDE 2022 | 3 5

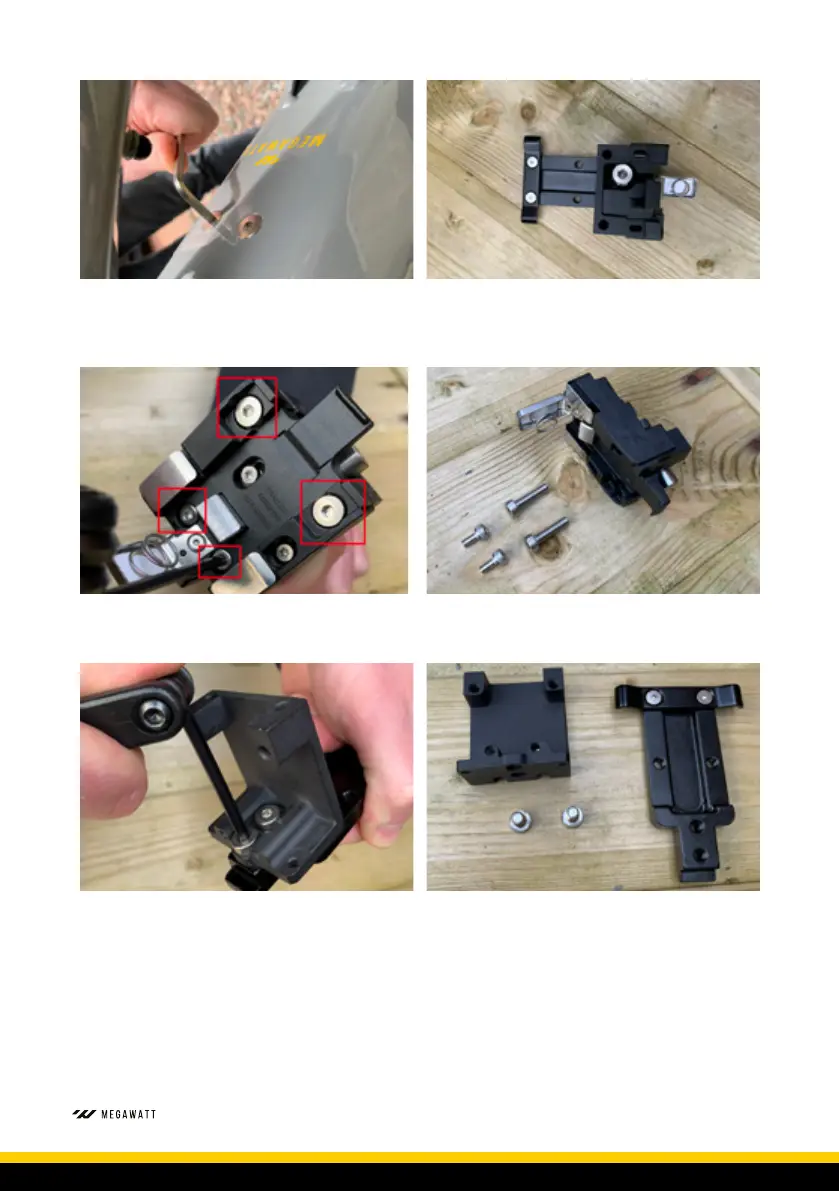

5. Remove the two bolts which hold the
battery mount in place at the top of the
downtube
6. The battery mount can now be fully re-
moved from the frame
7. Turn the battery mount on its end and undo
the 4 bolts highlighted in the photo
8. Remove this part of the bracket and keep
bolts safe
9. Undo the two bolts holding the mount to
the back plate
10. The mount can now be removed from the
back plate.
