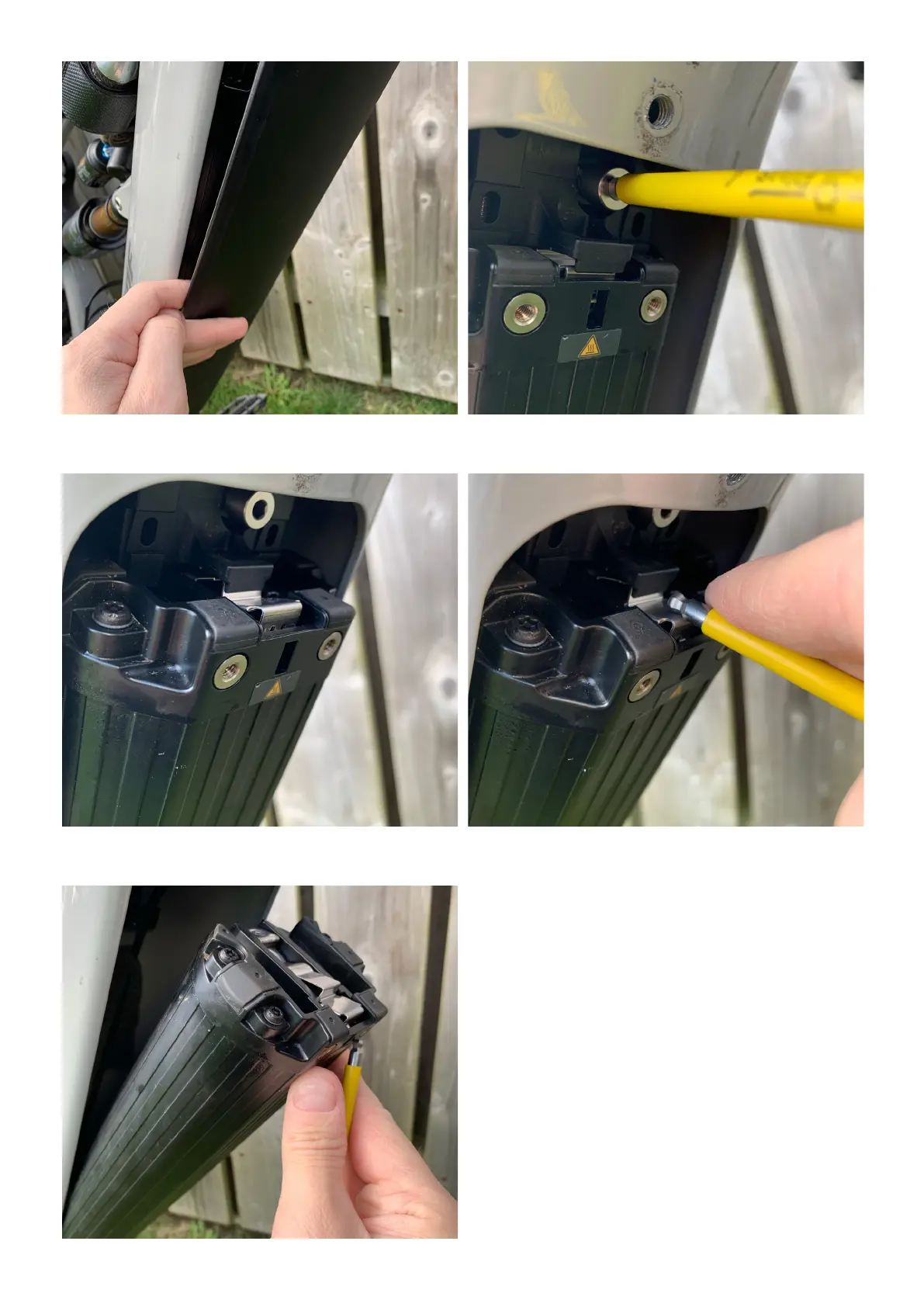

5. Slide the battery door upwards to remove 6. Using your 4mm hex key, carefully turn the silver
battery release bolt CLOCKWISE
7. The battery should slide forwards and stop as per
8. Push the silver clip down to fully release the battery
9. Lift the battery out of the frame
