This document outlines the procedure for removing and installing the battery on a Nukeproof Megawatt electric bicycle. It serves as a comprehensive guide for users to safely and effectively manage their bike's power source.

Function Description

The Nukeproof Megawatt battery is an integral component of the electric bicycle, providing the necessary power for the motor to assist the rider. Its design allows for removal and reinstallation, which is crucial for charging, maintenance, or replacement. The battery is housed within the downtube of the bicycle frame and secured by a battery door, which is fastened with bolts. A specialized locking mechanism ensures the battery remains firmly in place during operation.

Usage Features

The removal and installation process is designed to be straightforward, requiring only a 4mm hex key.

Removal Process:

Preparation: The first step involves positioning the bike upright in a safe and stable location. This ensures easy access to the downtube area where the battery is housed.
Accessing the Battery Door: The battery door is secured by three bolts. The process begins by loosening the two lower bolts on the battery door. Each of these bolts should be turned one full turn using the 4mm hex key. This initial loosening prepares the door for removal without fully detaching the bolts at this stage.
Removing the Top Bolt: After loosening the lower bolts, the top battery door bolt is fully removed. This allows the battery door to be manipulated.
Sliding the Battery Door: Once the top bolt is removed and the lower bolts are loosened, the battery door can be slid upwards. This action disengages it from its position, allowing access to the battery compartment.
Releasing the Battery: With the battery door removed, the internal battery release mechanism becomes accessible. A silver battery release bolt needs to be carefully turned clockwise using the 4mm hex key. This action initiates the release of the battery from its secure position.
Sliding the Battery Forward: After turning the release bolt, the battery should slide forward slightly. This indicates that it has been partially disengaged from its mounting points.
Final Release: A silver clip, located near the front of the battery, needs to be pushed down. This action fully releases the battery from its locking mechanism within the frame.
Extracting the Battery: Once fully released, the battery can be carefully lifted out of the bicycle frame. It is important to handle the battery with care during this step to avoid any damage.

Installation Process:

Inspection: Before installing the battery, it is crucial to inspect the battery holder within the frame. The holder should be in good condition, free from any damage, to ensure a secure and proper fit for the battery.
Battery Orientation: The battery needs to be rotated to the correct orientation. There is a specific plastic locating part on the battery's mount that must align with a corresponding hole in the battery casing within the frame. This ensures the battery is inserted correctly and makes proper electrical contact.
Inserting the Battery: With the correct orientation, the battery is lined up with the frame's opening and pushed into the frame. It should slide smoothly into place.
Securing the Battery: The battery is fully seated when two distinct clicks are heard. These clicks confirm that the battery's locking mechanism has engaged, securing it within the frame.
Reattaching the Battery Door: Once the battery is securely in place, the battery door is slid back into its original position.
Tightening the Bolts: The bolts are tightened in a specific order to ensure even pressure and a secure fit.
- First, the top bolt is tightened using the 4mm hex key.
- Next, the lower left bolt is tightened.
- Finally, the lower right bolt is tightened. It is important to tighten these bolts firmly but without over-tightening to prevent damage to the threads or the frame.

Maintenance Features

The design of the Nukeproof Megawatt battery system emphasizes ease of maintenance and replacement. The ability to remove the battery allows for:

Off-bike Charging: Users can remove the battery to charge it indoors or at a convenient location, separate from the bicycle. This is particularly useful for those who store their bikes in areas without easy access to power outlets.
Battery Replacement: In the event of battery degradation or failure, the modular design allows for easy replacement of the battery unit without needing specialized tools or extensive disassembly of the bicycle.
Inspection and Cleaning: Removing the battery provides an opportunity to inspect both the battery and the internal battery compartment for any signs of wear, damage, or debris. This allows for cleaning of contacts and the compartment itself, which can help maintain optimal performance and longevity of the electrical connections.
Frame Access: Removing the battery can also provide better access to internal frame components for other maintenance tasks or inspections, if necessary.

The clear, step-by-step instructions, accompanied by visual aids, make the process accessible even for users with limited mechanical experience. The requirement of a single common tool (4mm hex key) further simplifies the procedure, making battery management a user-friendly aspect of owning a Nukeproof Megawatt electric bicycle.

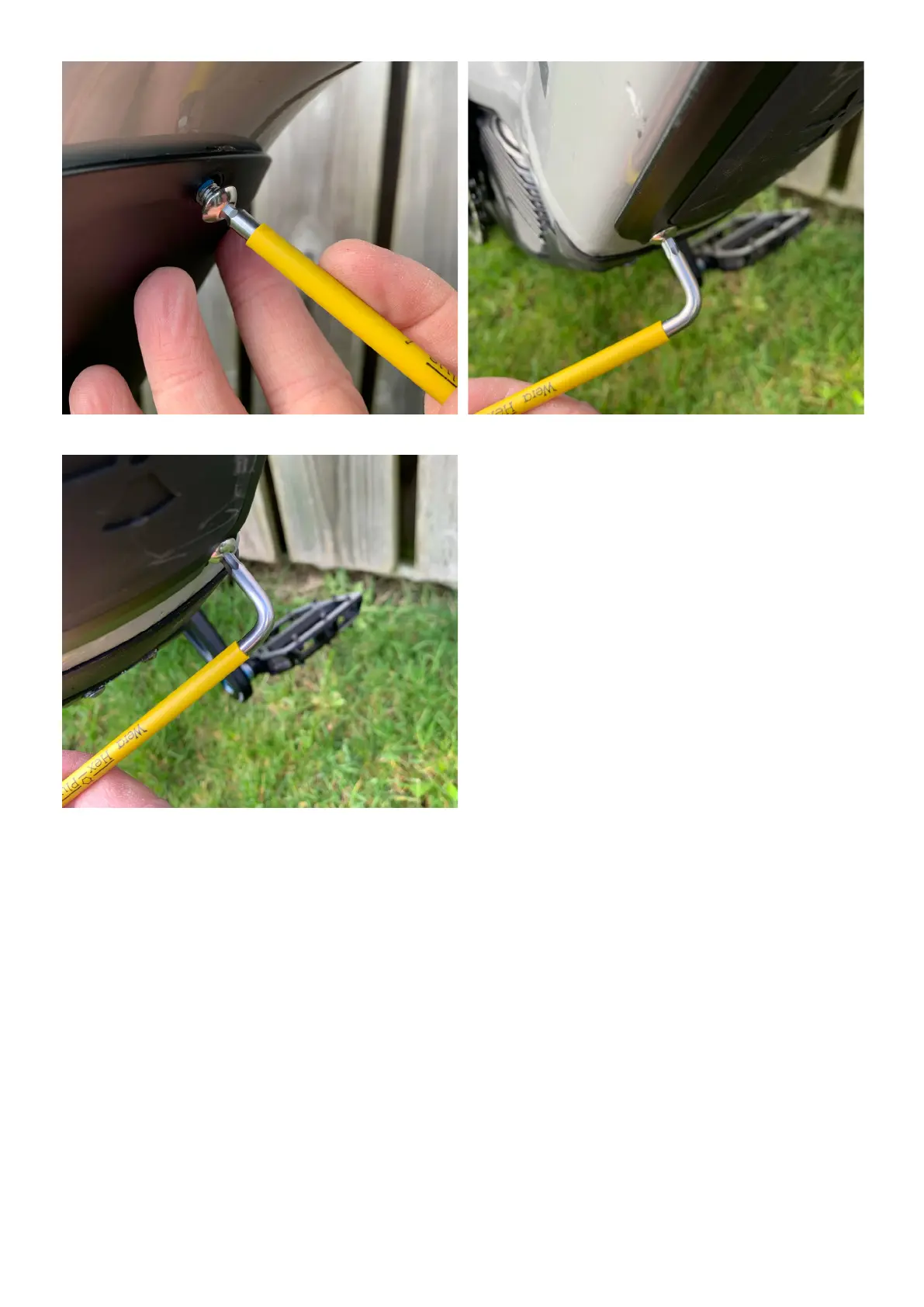

Nukeproof MEGAWATT 297 - Step 15: Tighten Top Bolt; Step 16: Tighten Bottom Left Bolt; Step 17: Tighten Bottom Right Bolt
