NIBBLE 0x3 Assembly Instructions Rev03 10.22.20

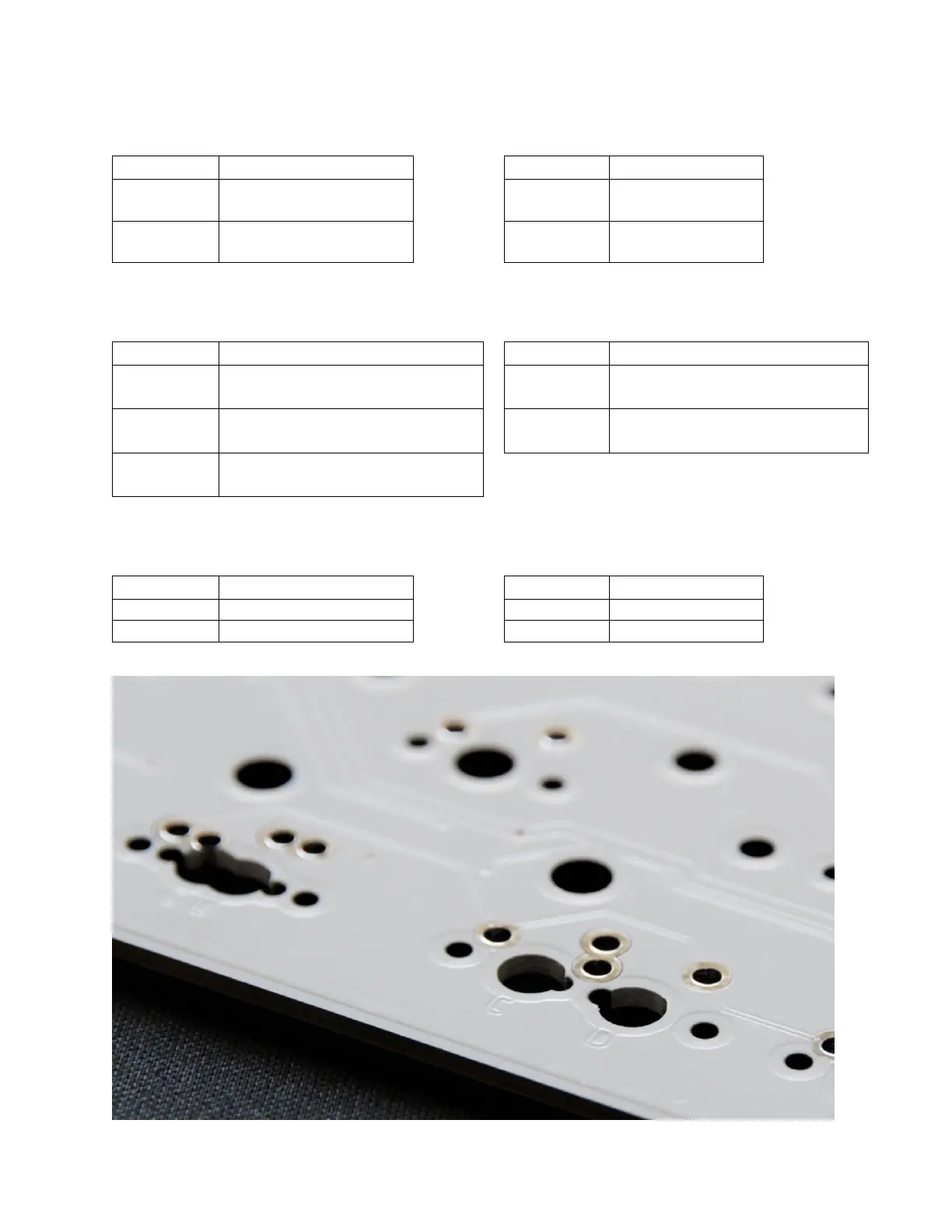

CAPS LOCK LEFT MODIFIERS
Guide Mark
Layout Option
Guide Mark
Layout Option
A
Stepped 1.75U Caps
Key
C
3x 1.25U
Modifiers
B
Standard 1.75U Caps
Key
D
2x 1.5U Modifiers
SPACEBAR RIGHT MODIFIERS
Guide Mark
Layout Option
Guide Mark
Layout Option
E
6.25U spacebar
Only compatible with “C”
H
3x 1U Modifiers
F
7U spacebar
Only compatible with “D”
I
2x 1.5U Modifiers
Recommended when using “G”
G
2.75U + 1U + 2.25 split spacebar
Only compatible with “C”
LEFT SHIFT (REV2 ONLY) ENTER KEY (REV2 ONLY)
Guide Mark
Layout Option
Guide Mark
Layout Option
J
2.25U ANSI
L
2.25U ANSI
K
1.25U + 1U ISO
M
1.25U + 1U ISO
