NIBBLE 0x3 Assembly Instructions Rev03 10.22.20
2.11 SCREW TOGETHER M2X3 STANDOFFS USING M2X3 SCREWS

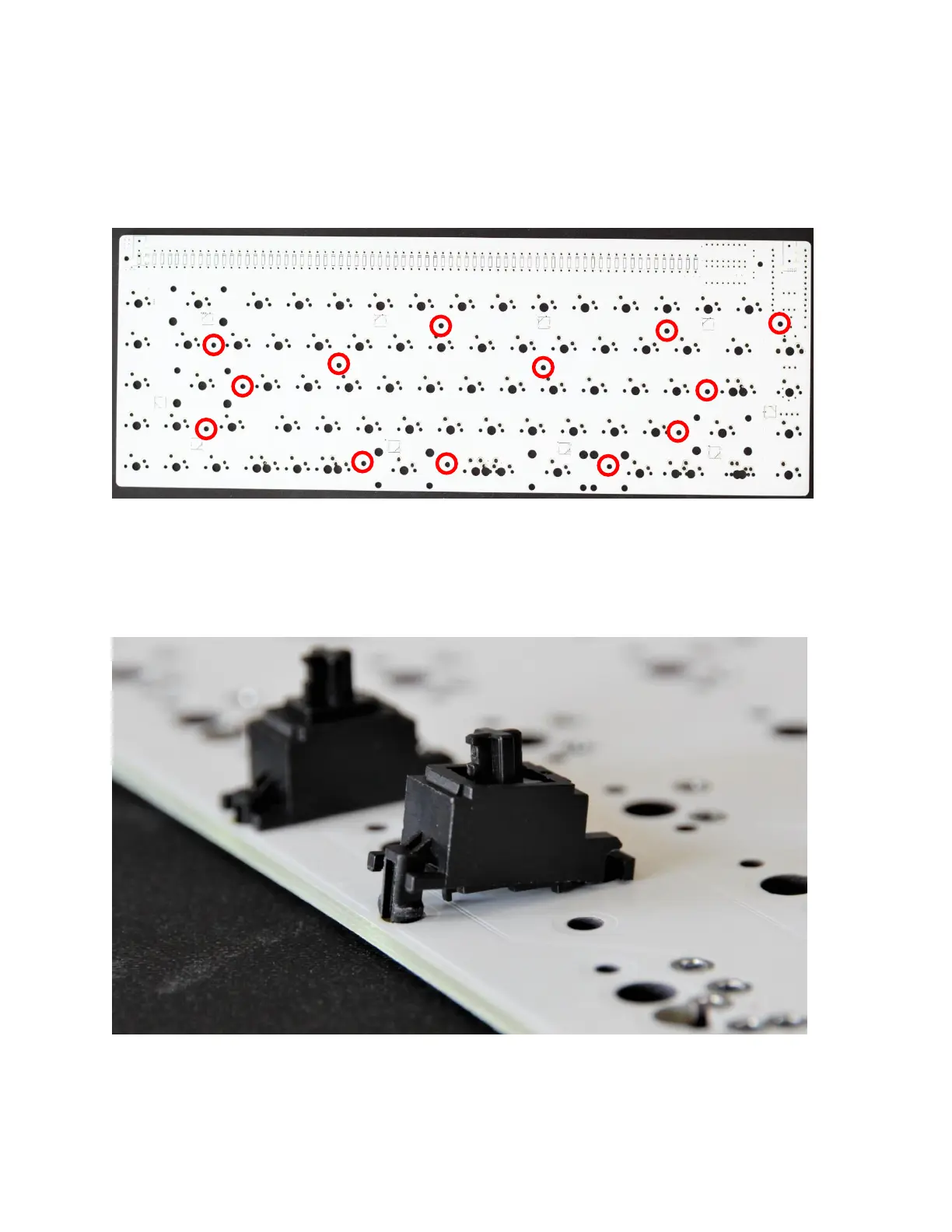

In the locations shown, screw the M2x3 standoffs into the TOP PCB plate. Fasten using 13
M2x3 screws. Use pliers to hold the standoff steady while tightening the screw. Do not
overtighten!
2.12 SNAP IN STABILIZERS
Snap in the PCB-mount stabilizers as shown below. The tab goes in the big hole, and the
retaining clips go in the small holes. The stabilizers will only snap in one way. Make sure the
stabilizer is fully seated, or the keycap won’t move properly once it’s installed.
