NIBBLE 0x3 Assembly Instructions Rev03 10.22.20

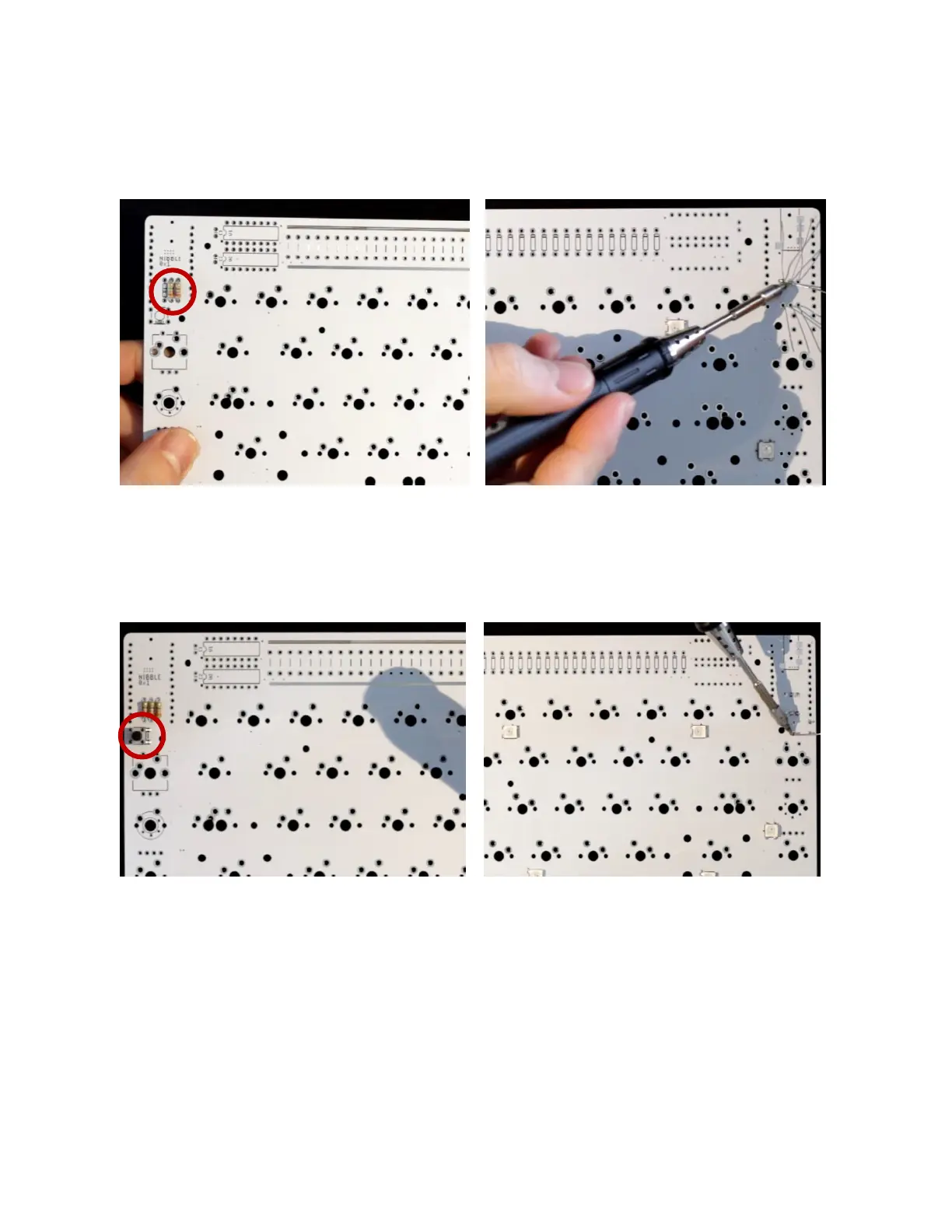

2.2 [OPTIONAL] BEND AND SOLDER RESISTORS FOR BIG LED
This step is only required if using the optional big LED in place of one of the macro keys. Bend
and solder R1, R2, and R3.
After soldering, clean with rubbing alcohol and use the snips to clip the leads as close to the
PCB as possible.
2.3 SOLDER RESET SWITCH
Fit and solder the reset switch as shown below.
After soldering, clean with rubbing alcohol.
2.4 SOLDER IC SOCKETS
Fit and solder the two IC sockets. Be sure to match the notch in the socket with the one on the
PCB. After soldering, clean with rubbing alcohol.
Do not solder the socket with the IC inserted! The high heat may damage the chip if it is
in the socket during soldering.
