2.4 [OPTIONAL] SOLDER TRRS EXPANSION JACK

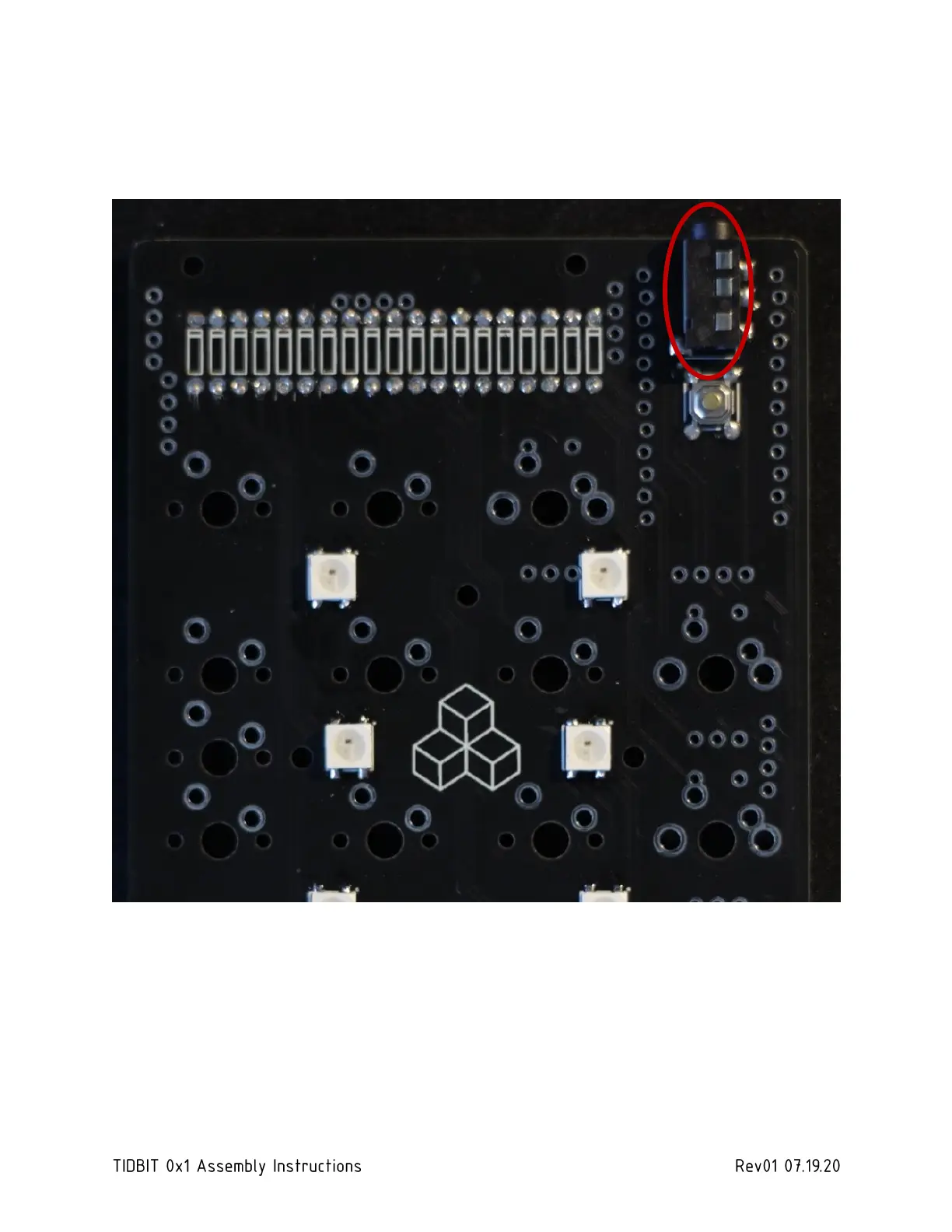

Fit and solder the 4-pin TRRS expansion jack as shown below. After soldering, clean with
rubbing alcohol and use the snips to clip the pins as close to the PCB as possible.
